Tolplus N

Tolplus N

Product information

Tolplus N likewise is the best option for pedestrian walking safety and high stability thanks to its punched serrations. Like all the other Stepbloc types, Tolplus N is well-suited to use on gangways, platforms and safety stairways. The drainage action is extremely effective owing to the steep raised profile, thus providing the best conditions for use outdoors.

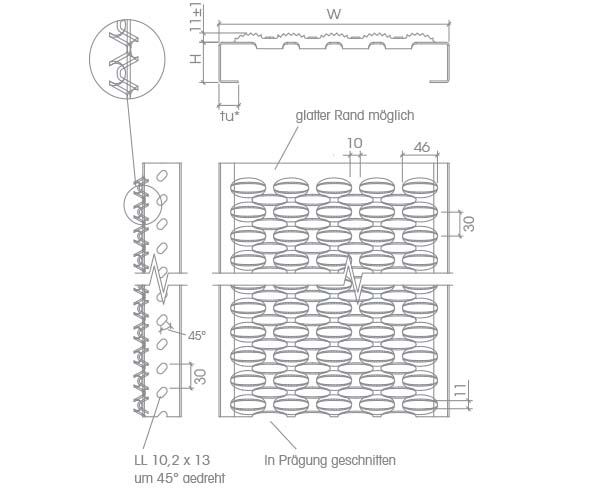

Technical data

Dimensions

Material

Sheet thickness

As class

Raw / hot-dip galvanised steel [DD11]

2,0 / 2,5 / 3,0

R12

Sendzimir galvanised steel [DX51]

2,0 / 2,5 / 3,0

R12

Aluminium [AIMg3]

2,5 / 3,0

R12

Stainless steel  [AISI 304L]

2,0

R12

preferred widths

124 / 182 / 240 / 298 / 330 /

356 / 414 / 475

preferred heights

40 / 50 / 75 / 100 / Other heights on request

lenghts

max. 6.030 mm

length divider

30

Special sizes or materials on request. Stored sizes according to stock list.

All data in mm.

*Produced in France.

Accessories / Fixing clips

BPR Flange
BPR Flange

Clamp connection with cage nut and M8 countersunk head bolt.

...show more

BPR Flange

Clamp connection with cage nut and M8 countersunk head bolt.

BPR Plastic Olive
BPR Plastic Olive

for all Stepbloc versions with recessed hole for countersunk head

...show more

BPR Plastic Olive

for all Stepbloc versions with recessed hole for countersunk head bolts (DIN 7991).

BPR Rondelle T03
BPR Rondelle T03

Gussoberteil für alle Stepbloc- sowie Drainstep-Formen mit Senkloch für Senkkopfschrauben

...show more

BPR Rondelle T03

Gussoberteil für alle Stepbloc- sowie Drainstep-Formen mit Senkloch für Senkkopfschrauben (DIN 7991).

BPR Fast fixing
BPR Fast fixing

Clamp connection with M8 countersunk head bolt.

...show more

BPR Fast fixing

Clamp connection with M8 countersunk head bolt.

BPR Screw connection
BPR Screw connection

M8 x 20 special bolt with washers and self-locking nuts



...show more

BPR Screw connection

M8 x 20 special bolt with washers and self-locking nuts

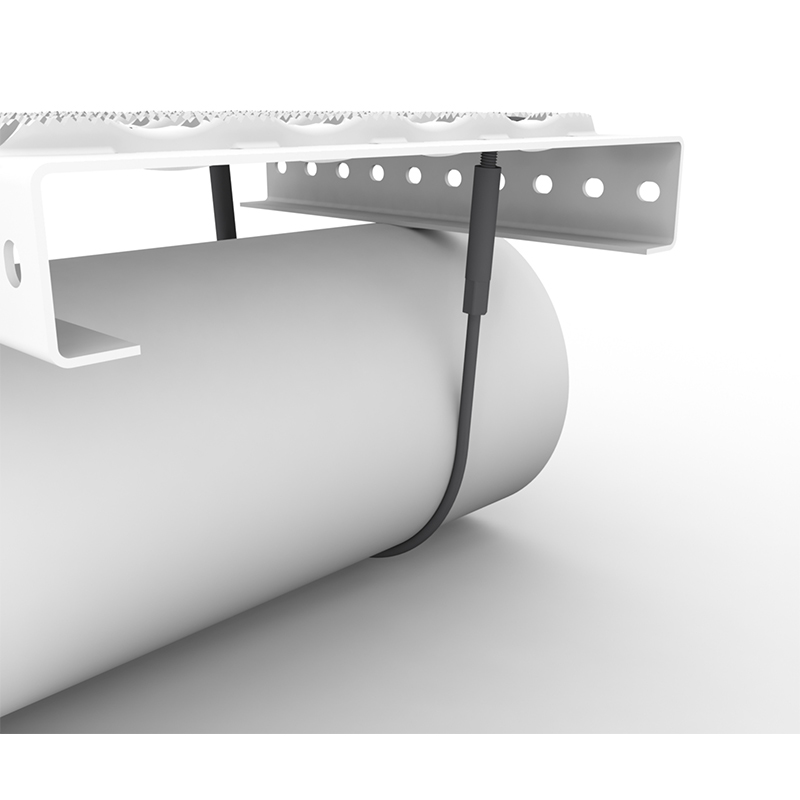

BPR Cabel connection
BPR Cabel connection

Various lengths, V2A with plastic sheath and bushings with M8

...show more

BPR Cabel connection

Various lengths, V2A with plastic sheath and bushings with M8 internal thread.

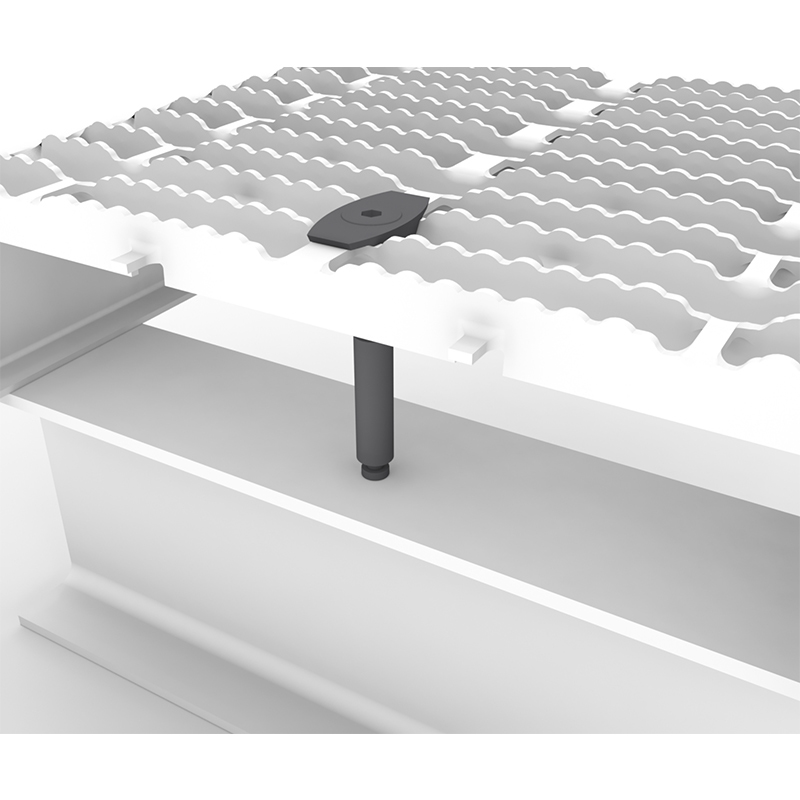

BPR-Setztechnik Drainstep RH3 & Stepbloc F
BPR-Setztechnik Drainstep RH3 & Stepbloc F

Besteht aus Setzbolzen, Rondelle T03 und einer Senkkopfschraube mit verpresster

...show more

BPR-Setztechnik Drainstep RH3 & Stepbloc F

Besteht aus Setzbolzen, Rondelle T03 und einer Senkkopfschraube mit verpresster Langmutter.

BPR Universal clamp
BPR Universal clamp

Cast metal clamp for assembling frombelow, available in various versions.

...show more

BPR Universal clamp

Cast metal clamp for assembling frombelow, available in various versions.
