Plated Grating

Plated Grating

Product information

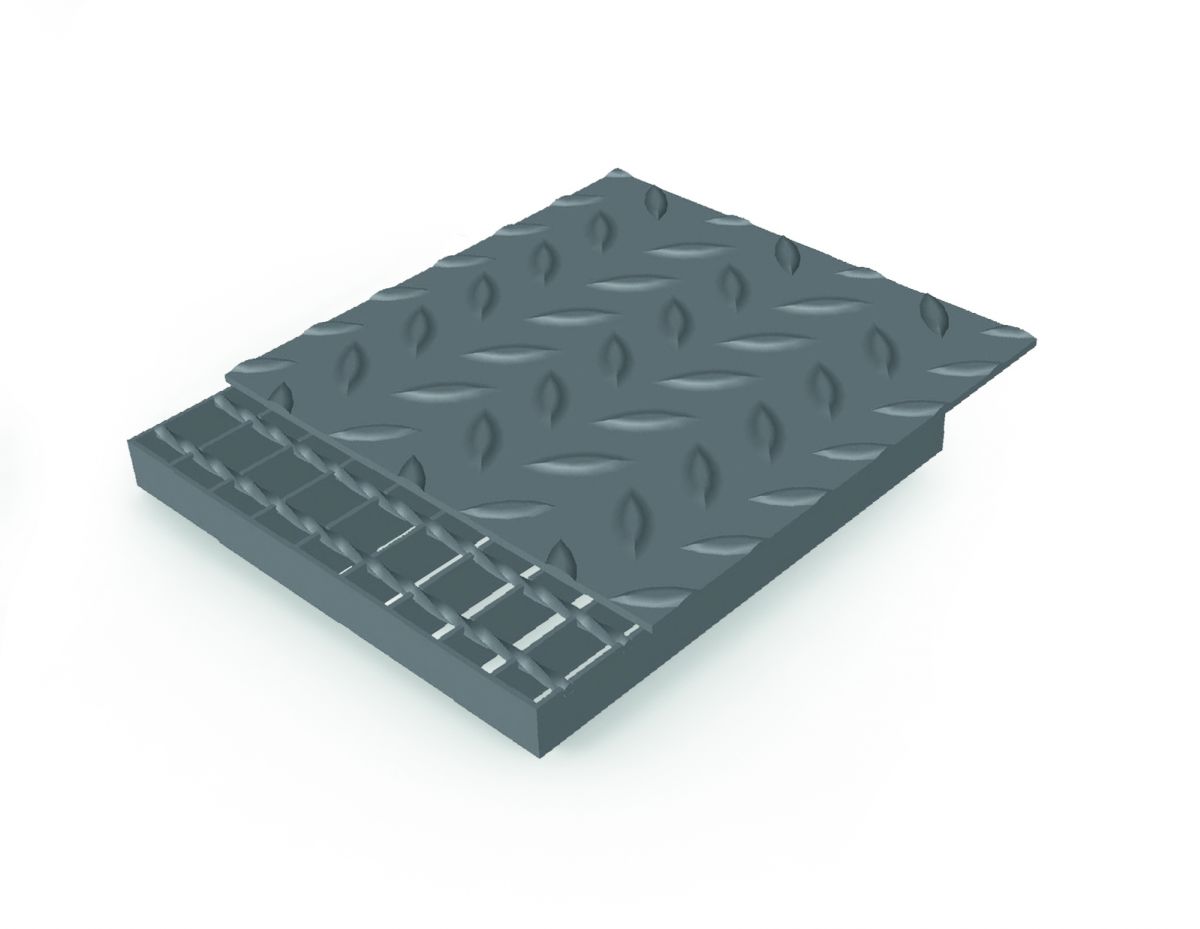

MEISER Plated grating combine the different advantages of a chequered plate with those of a grating. The closed surface of a chequered plate is supplemented by the high stability of a grating, for example to make a drivable surface. This combination creates a highly durable product. The load-bearing capacity of MEISER Plated grating can be individually adapted and optimised to the requirements of the respective construction project.
In addition, we would be pleased to test the product tailored to your needs together with our in-house structural engineer during an impact test and prepare the corresponding documentation. This also applies to fixing systems that can be provided for the respective applications.

Technical data

Preferred mesh sizes for MEISER Plated Grating

Bearing bar Crossbar
34,30 38,1 50,8 76,2 101,6
33,30 33,3   66,6 99,9
44,40 33,3   66,6 99,9
66,60 33,3   66,6 99,9

*other combinations possible on request

Prefered chequer plate dimensions
