Clamp S
Consists of flat-head screw, clamp base and square nut.
Gratings

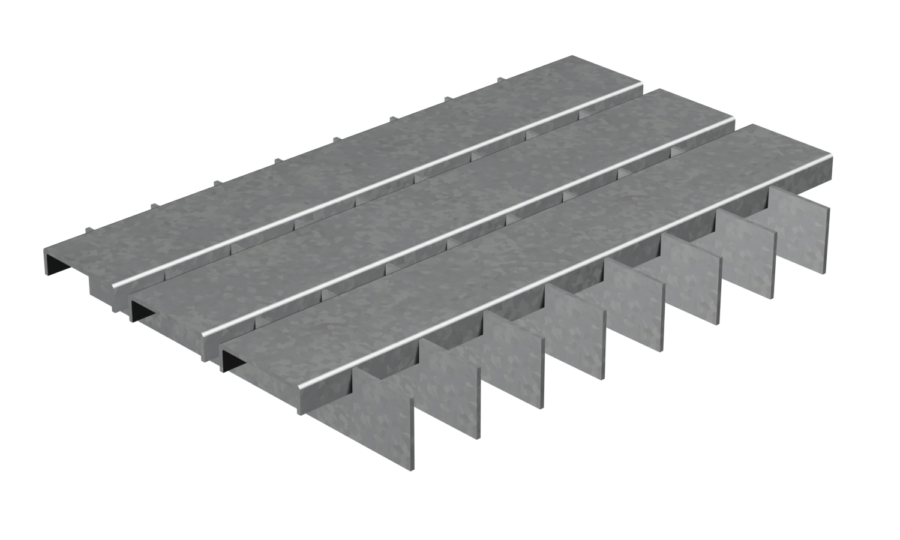

Boat Dock Racks
Our range of specialty gratings also includes meiser boat dock gratings. Instead of the crossbars typically used, these gratings feature filler bars with a flat, pressed-in U-profile.
Ihre AnsprechpartnerThe boat dock grating is therefore ideal for all types of flooring that do not allow much of a view downward. The clear spacing between the treads is approximately 9 mm; they are made of steel or stainless steel.
Common mesh divisions
| Support rod | Filler rod |
|---|---|
| 22,20 | 8,25 |
| 33,30 | 8,25 |
| 66,60 | 8,25 |
Standard bearing bar profiles
| Support rod 2 mm | Support rod 3 mm |
|---|---|
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
| 45/2 | 45/3 |
| 50/2 | 50/3 |
| - | 60/3 |
Matching accessories
Attachments for Boat Dock Racks
