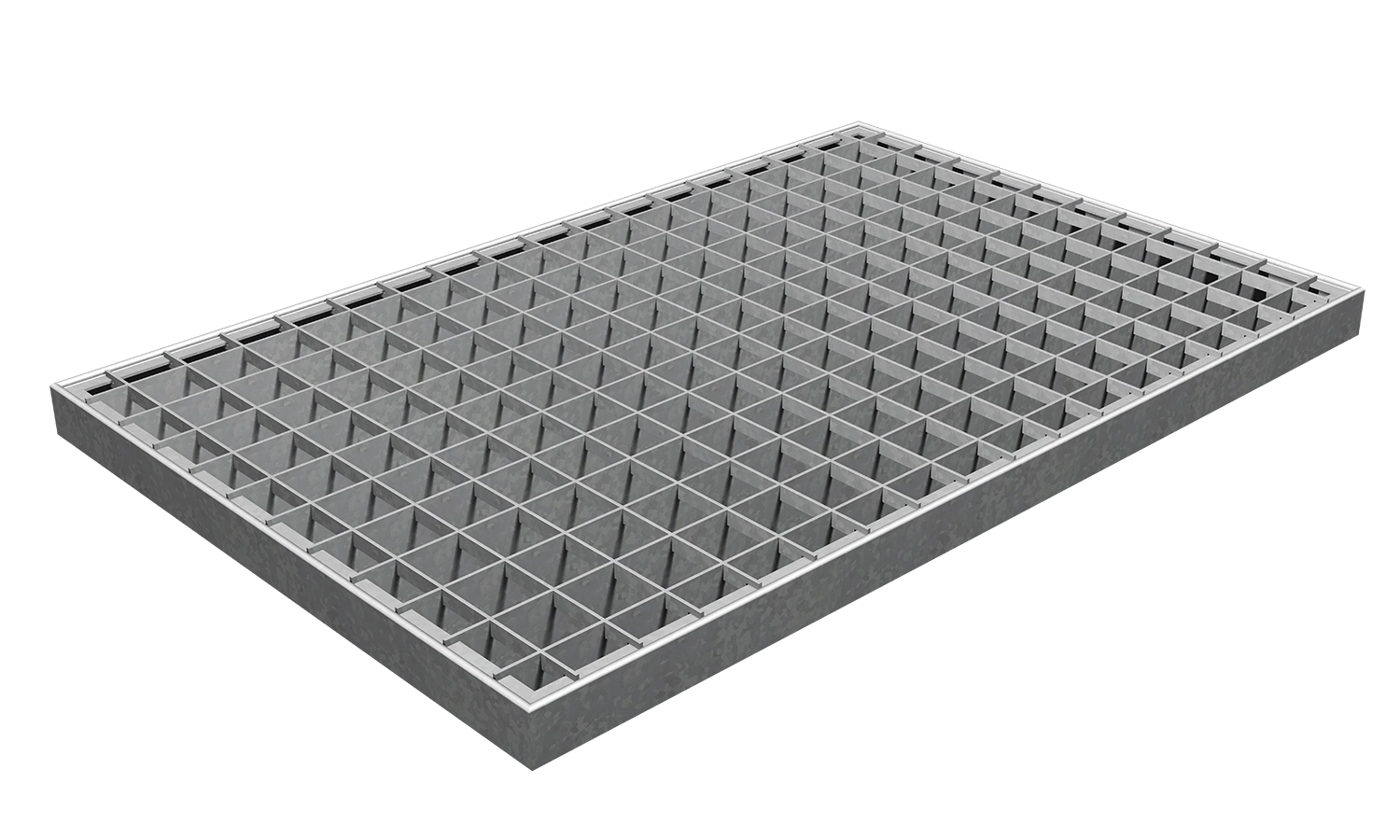

Press-locked gratings are among the most widely used grating types throughout Europe. Their manufacturing process offers exceptional design flexibility compared with press-welded gratings, allowing for a wide range of mesh configurations and bearing bar dimensions. As a result, they can be adapted to virtually any application and aesthetic requirement.
MEISER heavy-duty gratings are specifically engineered for applications involving exceptionally high loads. They are manufactured as press-locked gratings with extra-high and/or extra-wide bearing bars, complemented by correspondingly dimensioned filler bars.

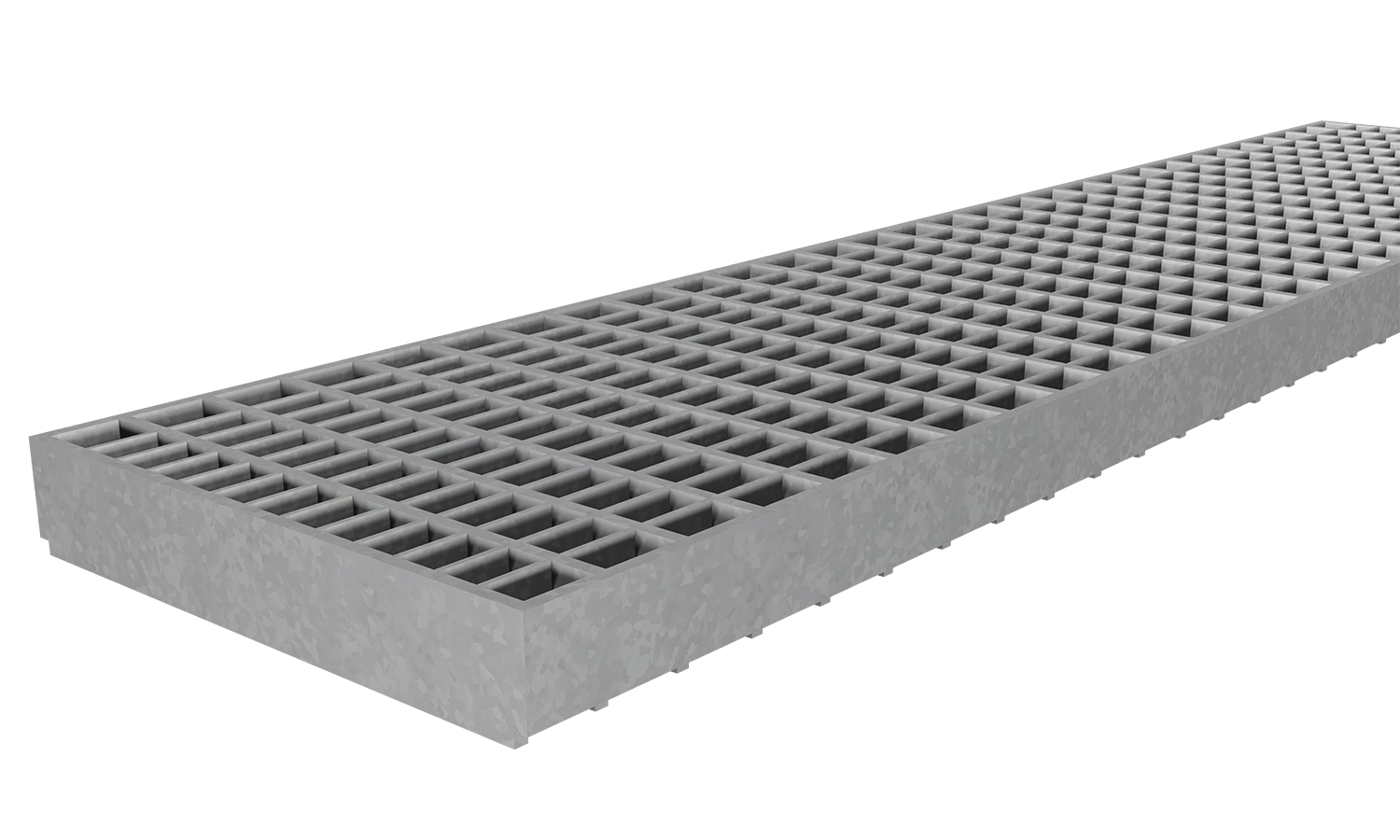

MEISER channel gratings are made of steel, stainless steel or aluminum - to suit the area of application, the environment and the required load. The channel covers are available up to a maximum dimension of 300 x 1,500 mm and can be designed for everything from walk-on (...)

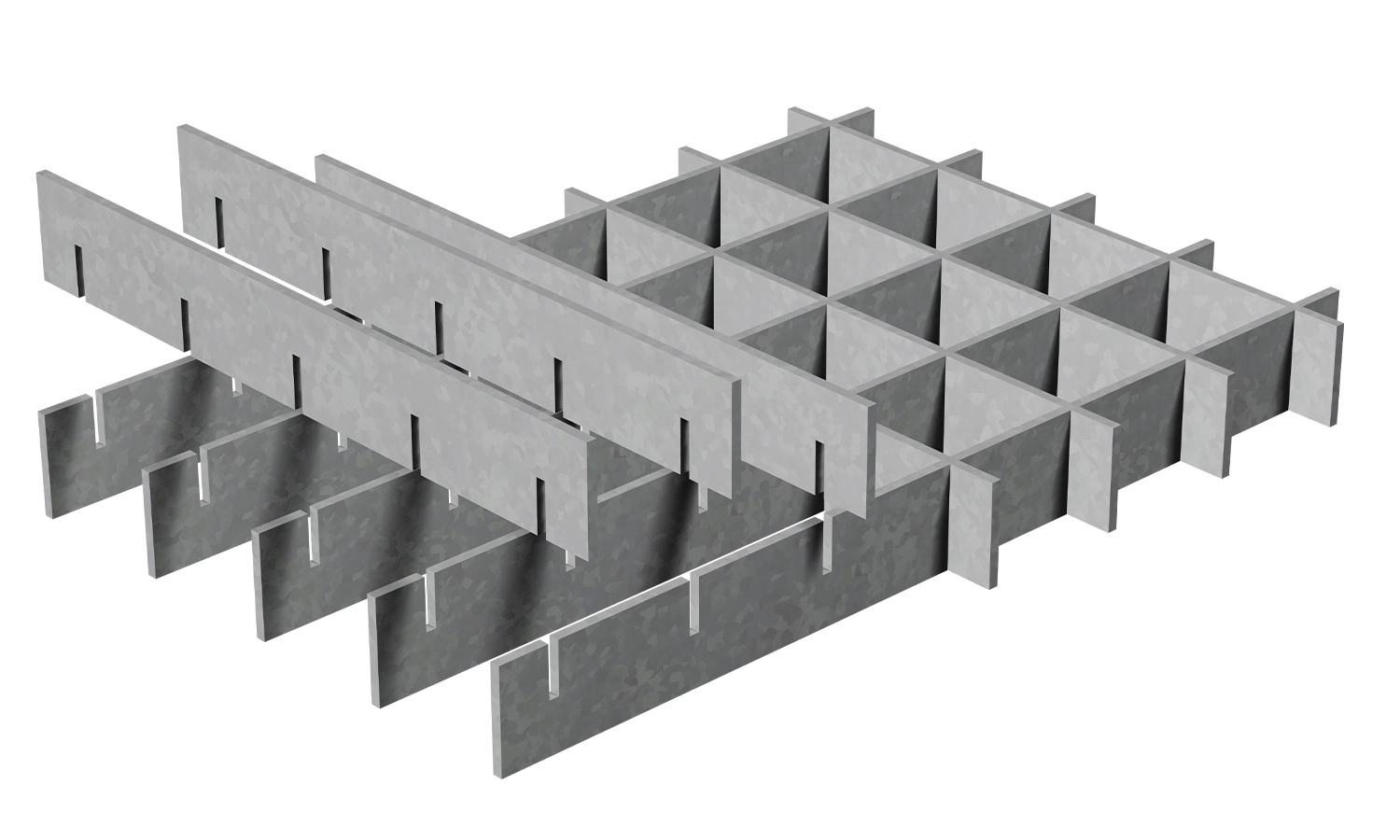

Solid gratings are characterised by bearing bars and filler bars with identical cross-sections, resulting in a uniform grid with equal bar heights. The bearing bars span the support structure and remain unslotted on the underside.

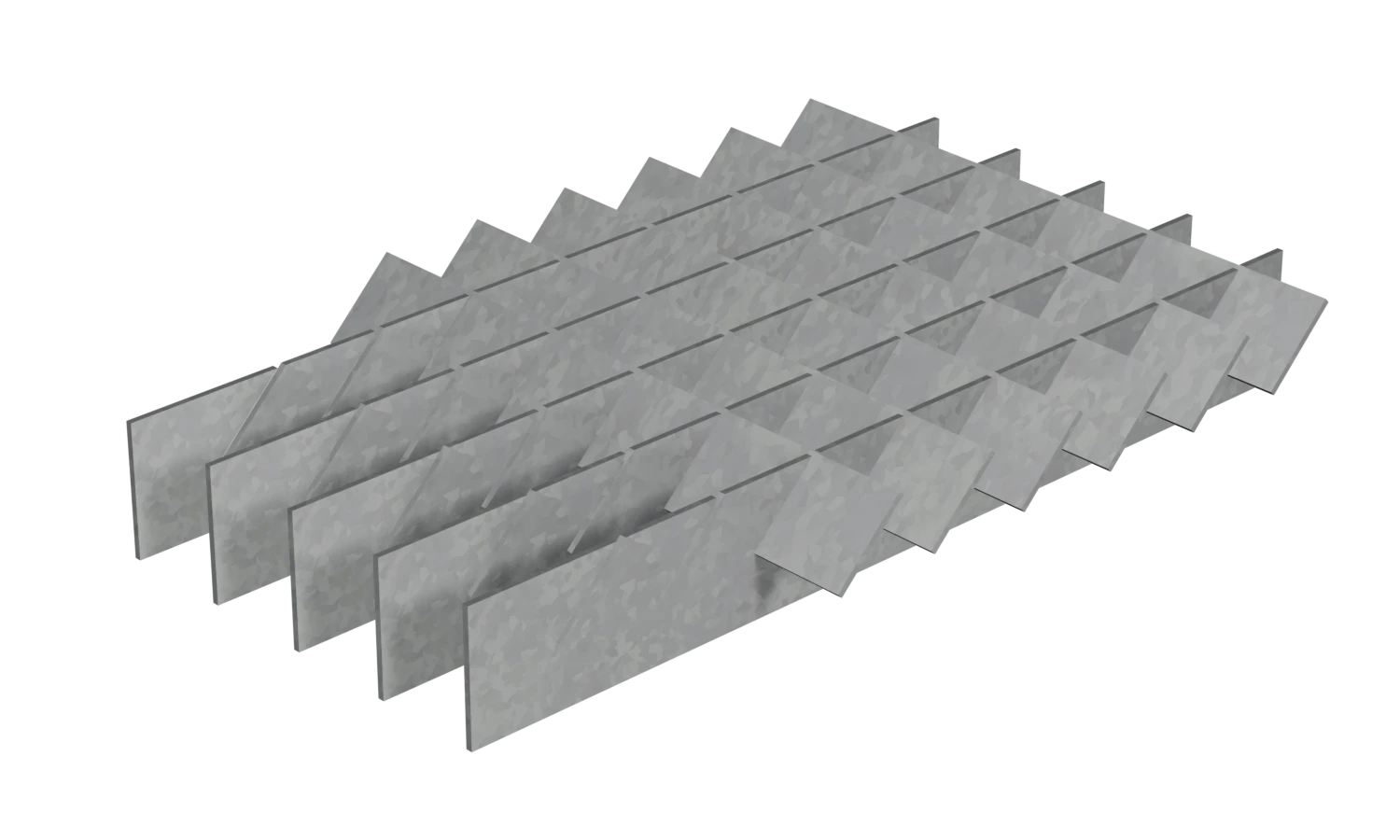

Where reduced visibility or controlled screening is required, louvre gratings provide an effective solution. Their applications extend far beyond walkways, bridges and transition areas.

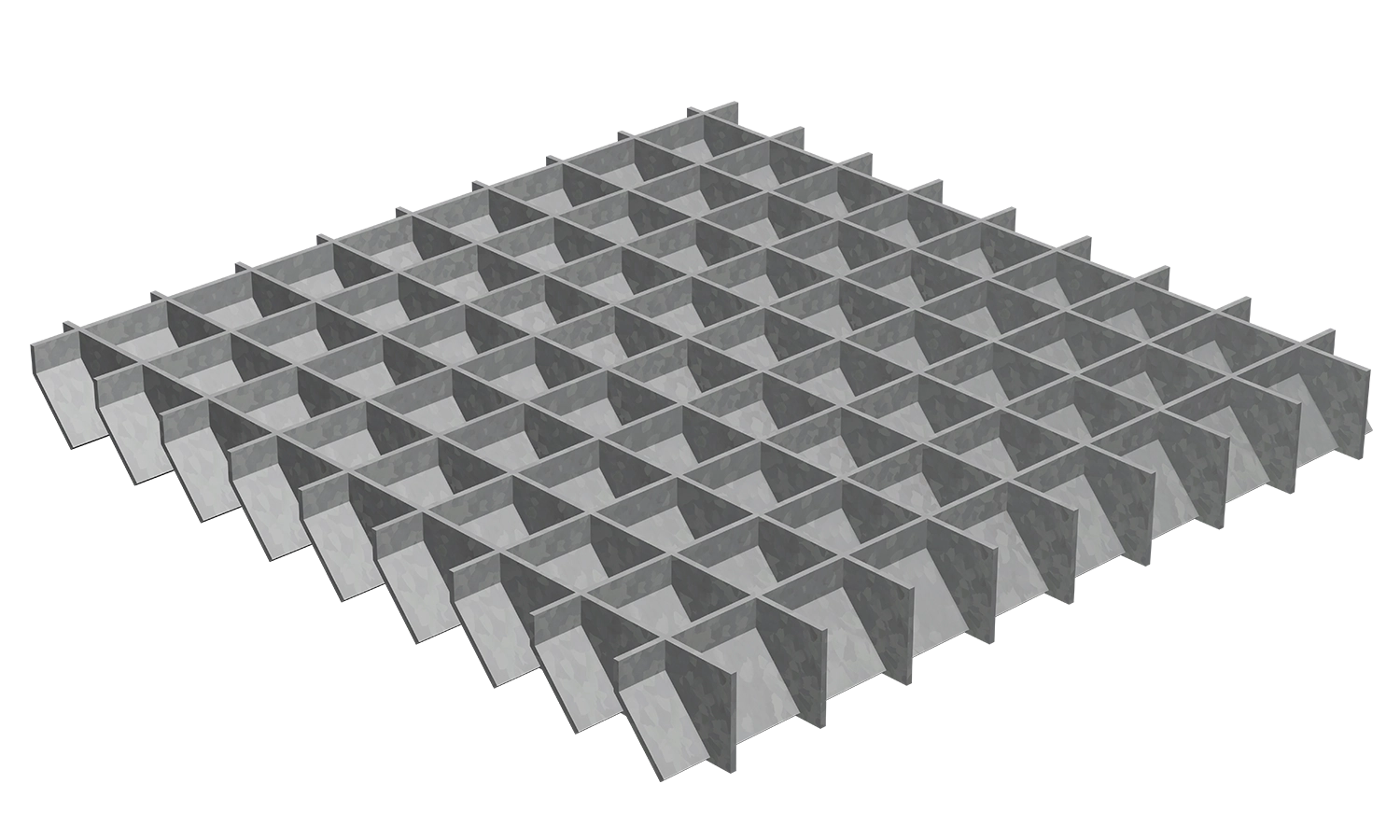

This special version of the louvre grille combines the technical properties of a classic pressed and solid grille with the attractive design of a louvre grille.
Thanks to the wide range of available materials and design options, press-locked gratings can be tailored precisely to the requirements of each application.

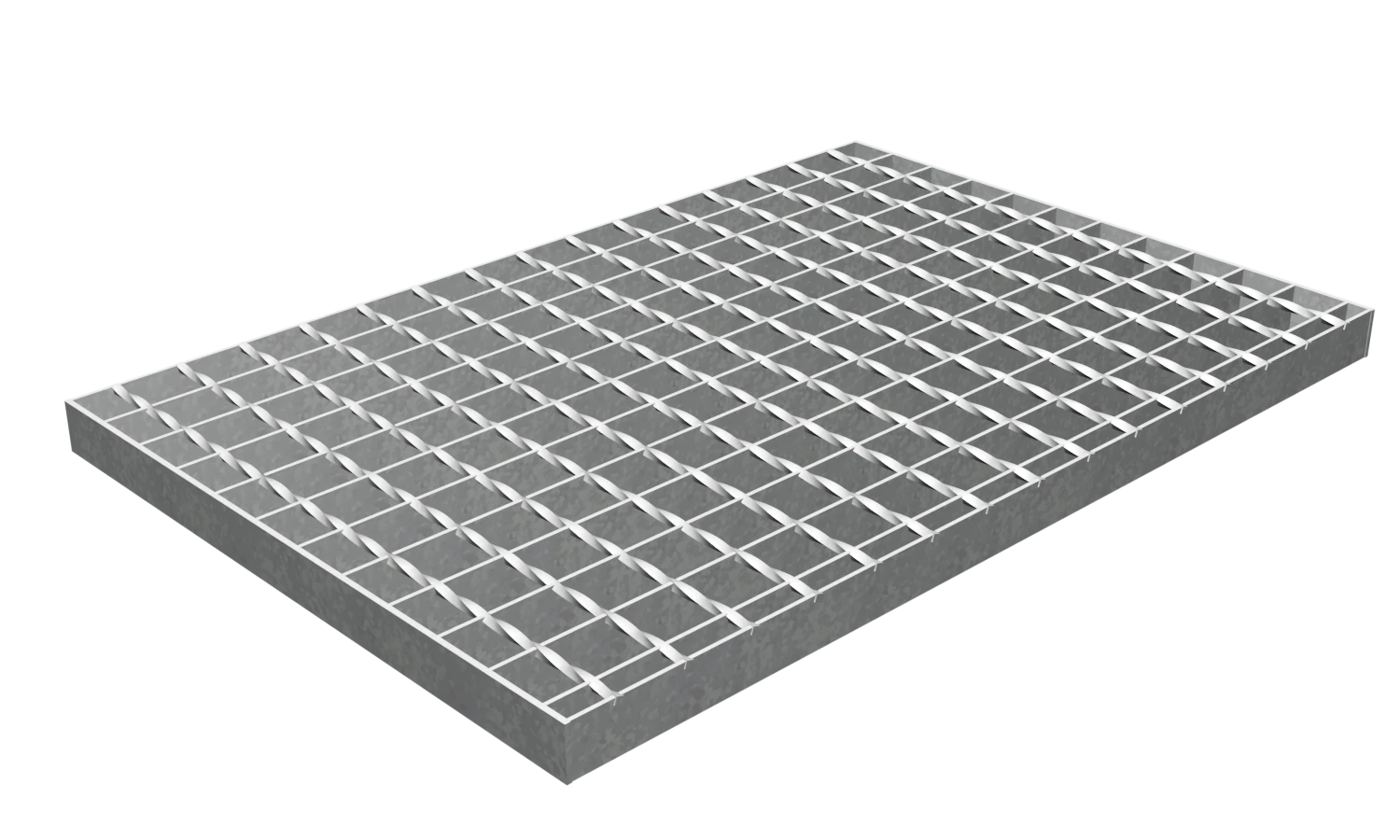

MEISER press-welded gratings have long been the preferred choice for a wide range of industrial applications. Every intersection between the bearing bars and filler bars is resistance-welded under high pressure, creating an exceptionally strong, durable and dimensionally stable structure
Where press-welded gratings are required while simultaneously preventing smaller objects from falling through, MEISER offers press-welded gratings with integrated perforated steel strips.
MEISER offshore gratings have been specifically developed for use on offshore drilling platforms and other demanding marine applications.

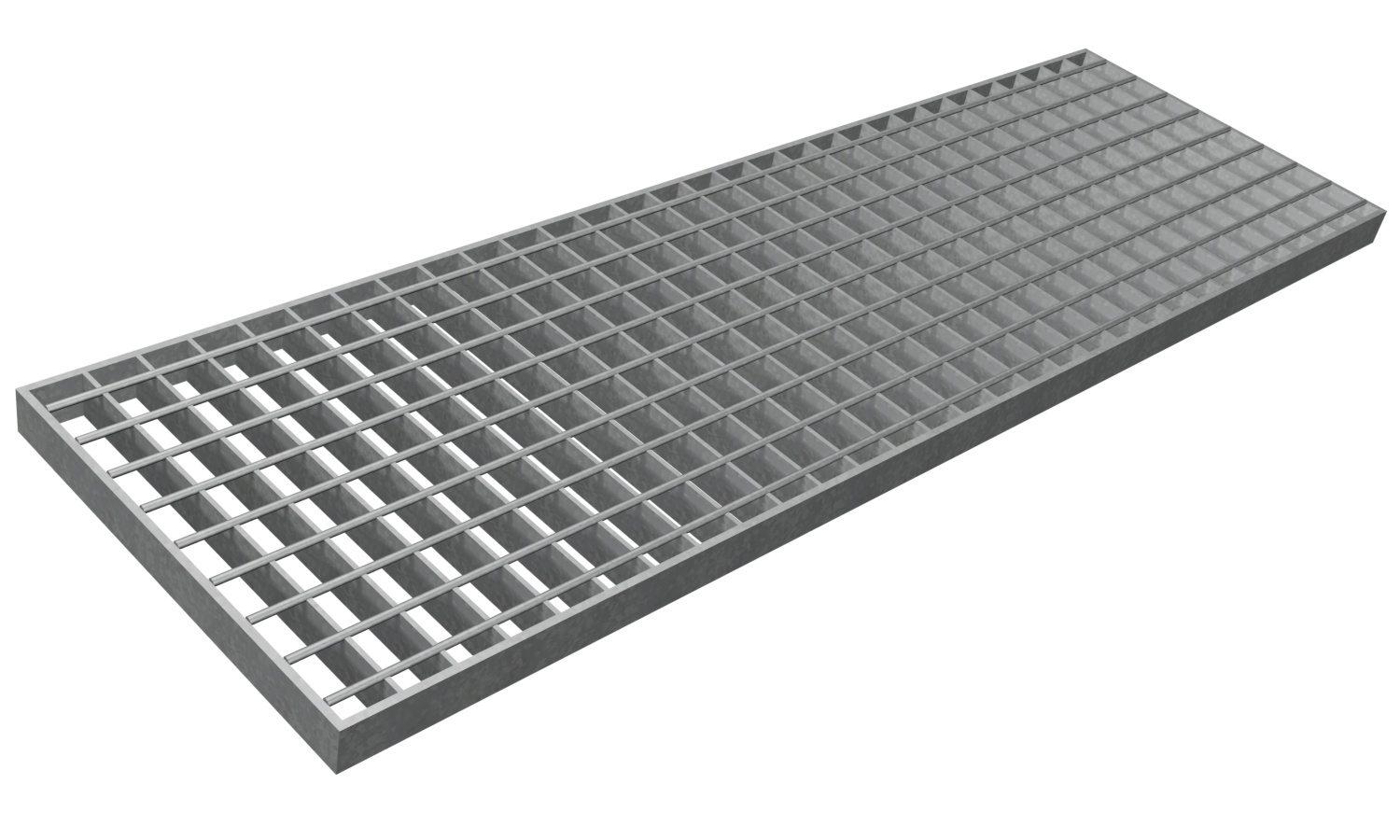

While standard press-welded gratings are manufactured with twisted square filler bars to provide enhanced slip resistance, smooth round bars can be used where architectural appearance takes priority.
Press-welded gratings are widely used in the oil and gas industry, mining, power generation and other heavy-duty industrial environments. They are particularly suitable for applications exposed to high shear forces or where platform coverings require frequent replacement.
MEISER shelf grating has decisive advantages over other shelf coverings in logistics systems. In addition to their durability, light and water permeability are particularly important factors - especially when sprinkler systems are used. In addition, the shelf occupancy is also visible from below. Sophisticated detailed solutions facilitate the installation of the gratings and offer additional, integrated benefits.
This is the usual design, which is inexpensive to manufacture and suitable for different shelves with the same depth but different crossbars.
This grating has a raised edging at the bottom, but only at the ends of the bearing bars. As a result, the locking mechanism is less pronounced and the intended use is more flexible, as you are not tied to a specific crossbar width.

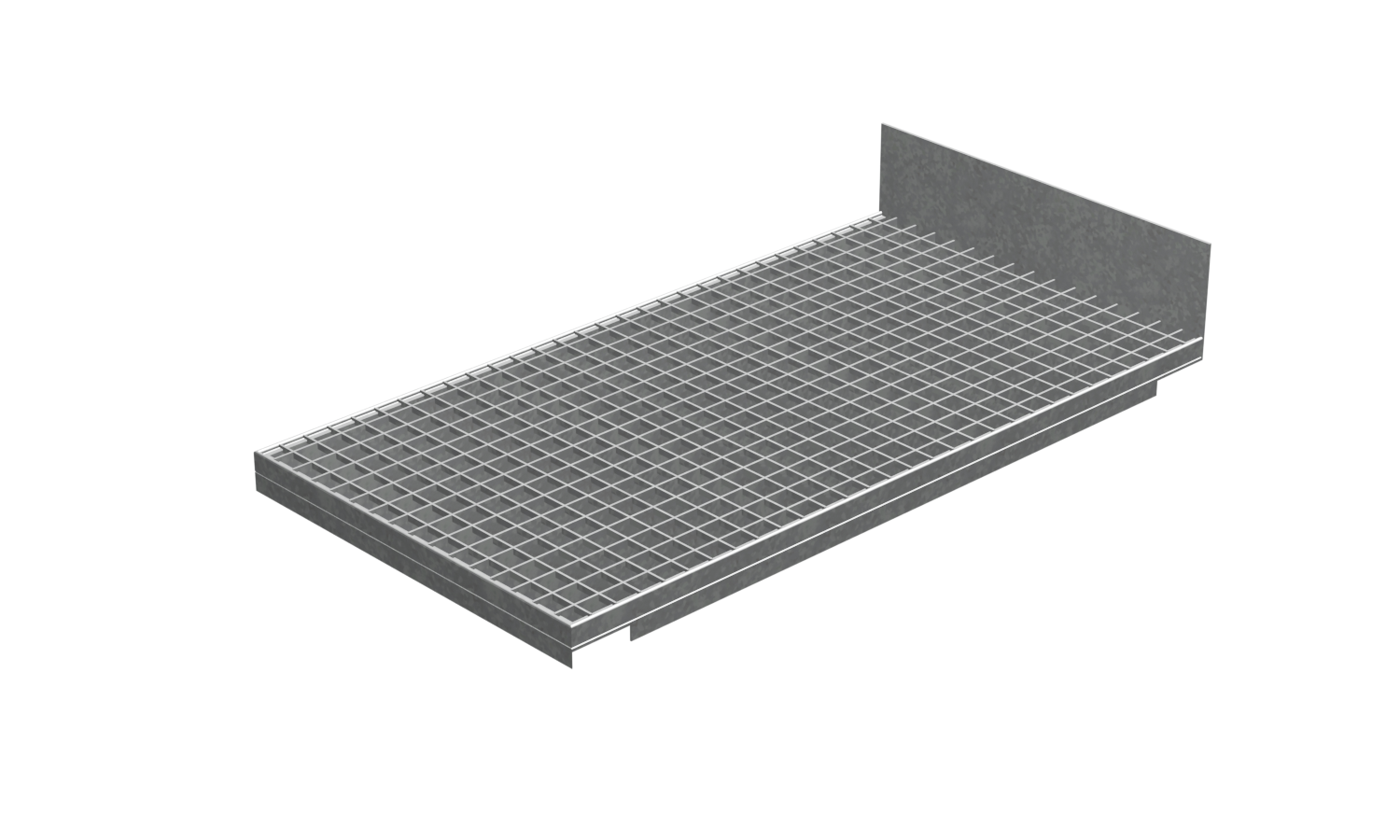

An anti-push-through device is an important safety element in shelving systems. If this has to be installed separately, it incurs considerable costs.
MEISER has also developed a special grating for double shelving. Additional notches allow a continuous connection across the double shelf. Quick assembly is also guaranteed.
This is the most common version of the inserted shelf grating. Our self-developed rolled profile, which is inserted into the bearing bars and additionally welded, serves as the angled collar.

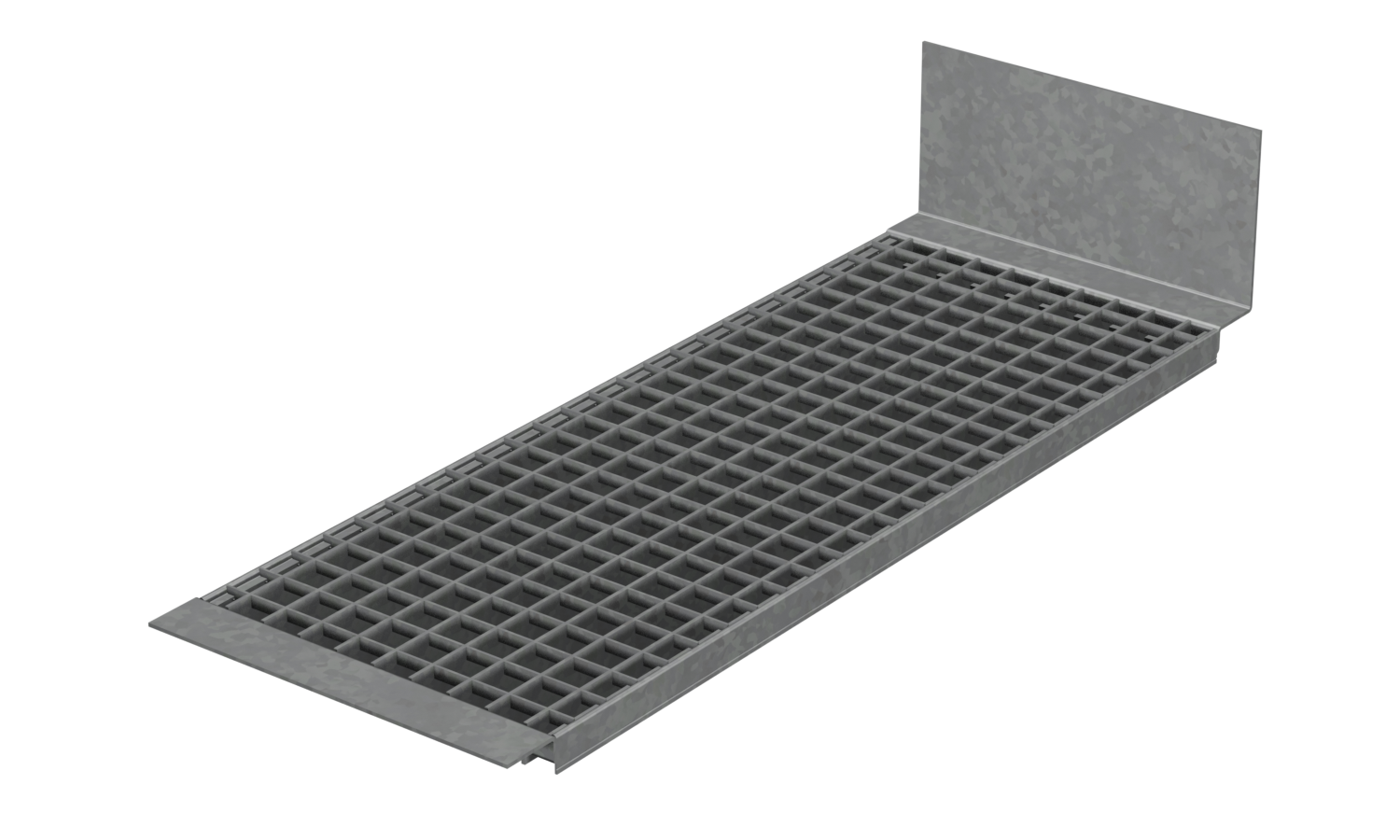

The inserted shelving can also be offered with a push-through protection. In this case, the special Z-profile is supplemented with an additional leg that prevents the goods from sliding through.
This shelf grating element consists of two gratings that are connected to form a unit by a U-profile in the middle support area. This creates a continuous connection above the double shelf, the full shelf height is retained.
Strong. Light. Reliable. With commercially available gratings, the bearing bars are usually of the same height. In shelving applications, however, load carriers are often used that are not moved around much in the shelving and therefore never load some of the bearing bars.
This grating was specially developed for the legally required fire protection. A 0.8 mm thick, sendzimir-galvanized smooth sheet is mounted on the U-profiles or, in the case of gratings, on the Z-profiles and thus acts as a thermal insulation sheet.
MEISER has developed and produced over 5,000 types of grating - many of them to specific specifications from customers, architects or planning offices. Whether functionality, aesthetics or budget set the framework: Technical expertise and experience are required for special solutions such as comb gratings, slatted gratings or louvre gratings. The impulse comes from you, the suitable and reliable solution from MEISER.

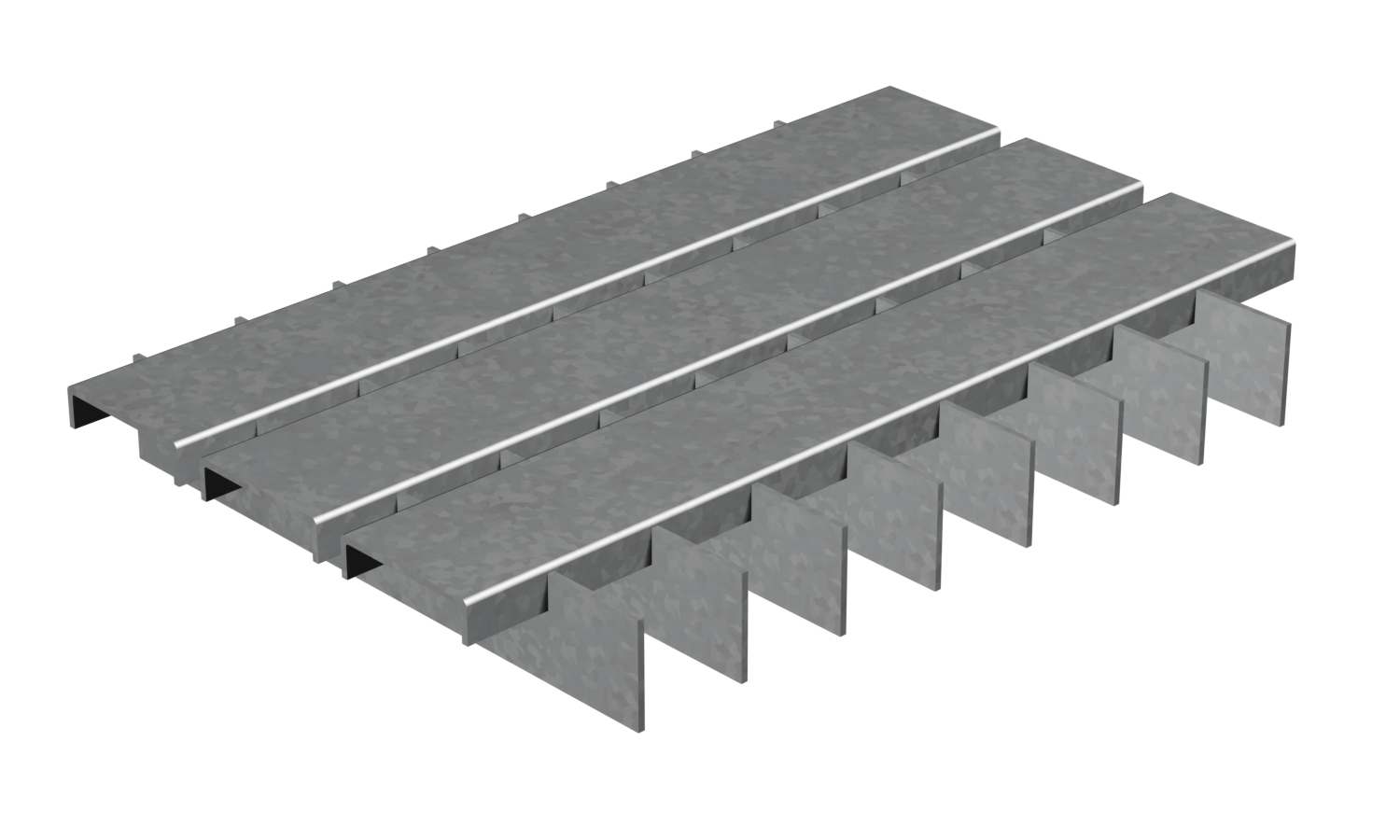

Our range of specialty gratings also includes meiser boat dock gratings. Instead of the crossbars typically used, these gratings feature filler bars with a flat, pressed-in U-profile.

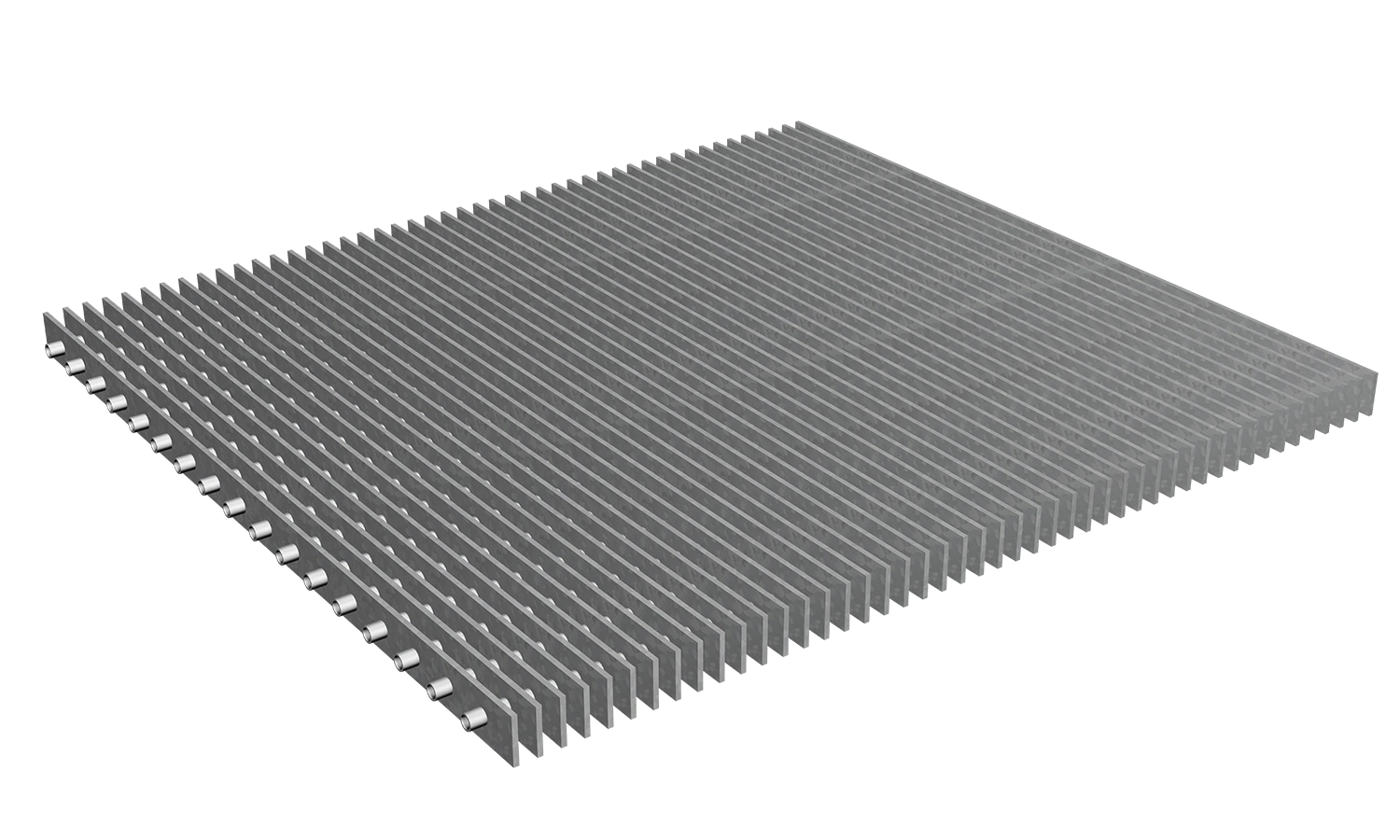

MEISER slatted gratings clearly stand out visually from a classic grating. The function of the filler bar in this design is performed by a tube that is inserted in the middle of the bearing bars. This gives the slatted grating a very high-quality appearance, but is less (...)

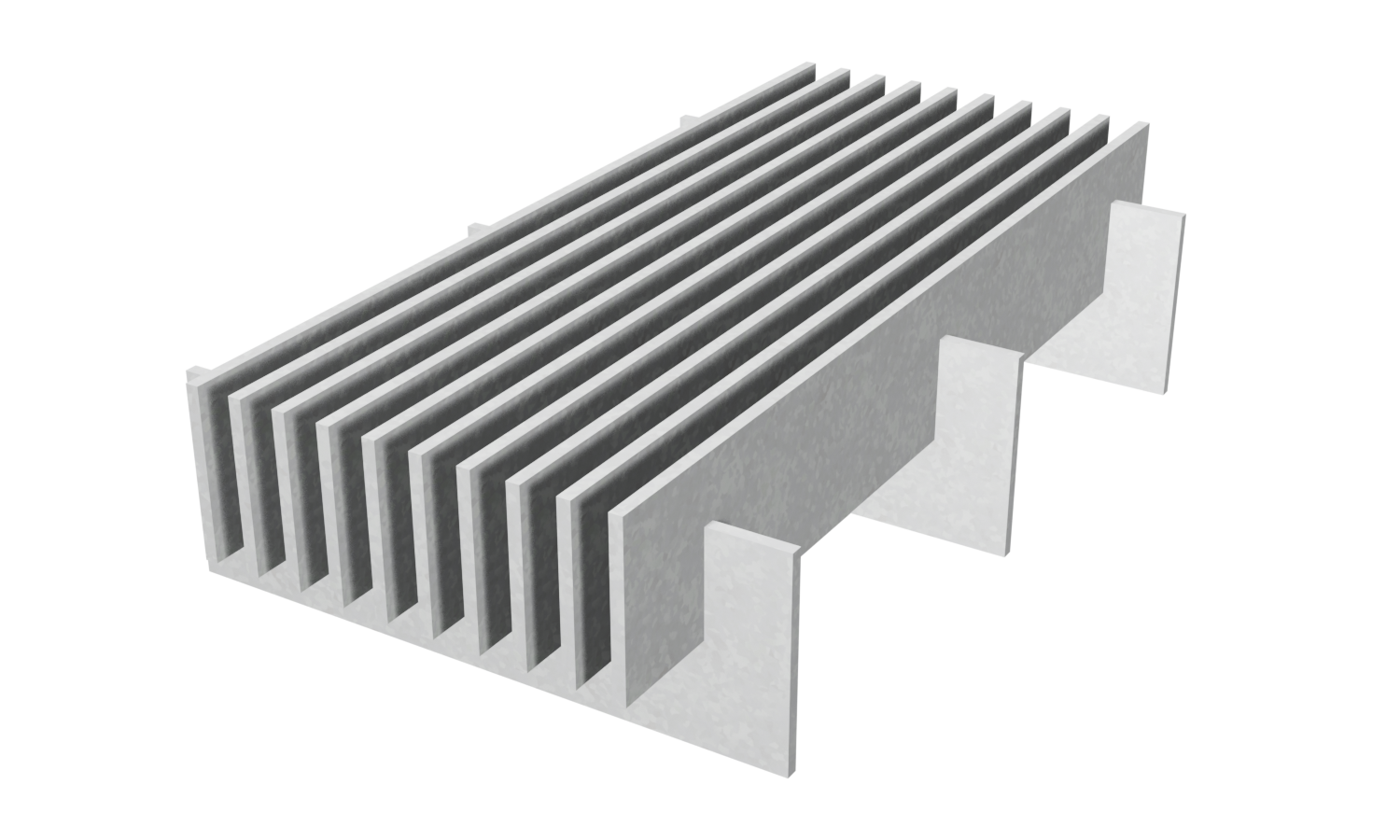

MEISER comb gratings are pressed gratings with filler bars that protrude upwards. This makes the bearing bars almost invisible, so that the grating no longer looks like a grating but like a comb. By emphasizing the filler bars, a very elegant and light appearance is (...)

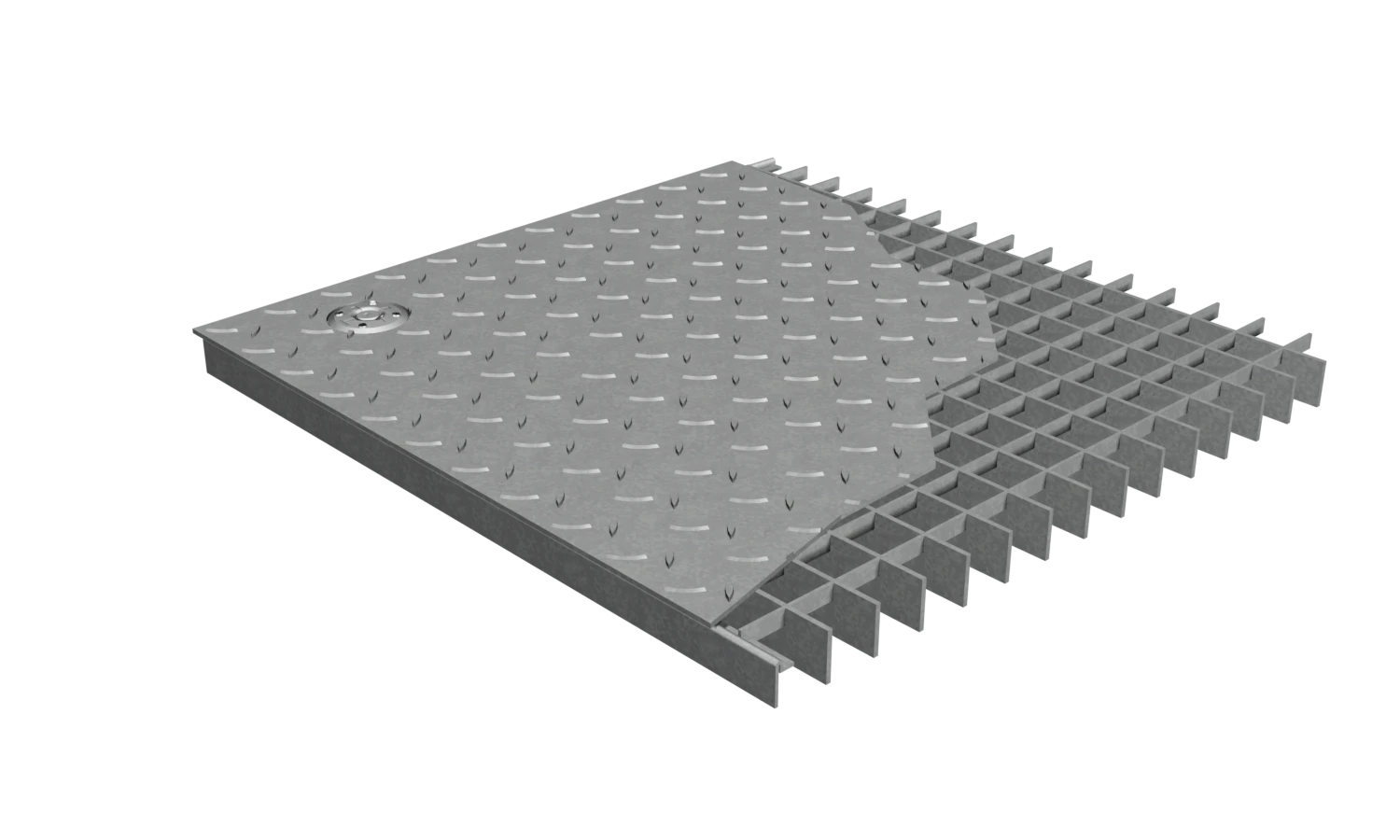

The MEISER Top Plate grating combines the various advantages of a chequer plate covering with those of a grating. The closed surface of a tear plate is supplemented by the high stability of a grating, for example to create a surface that can be driven on.
Press-locked grating, press-welded grating steps and steps with raised safety edge.
The robust edge supports clear step recognition and ensures a secure grip when walking on stairs. This creates resilient step solutions for industrial, commercial and technical access areas.

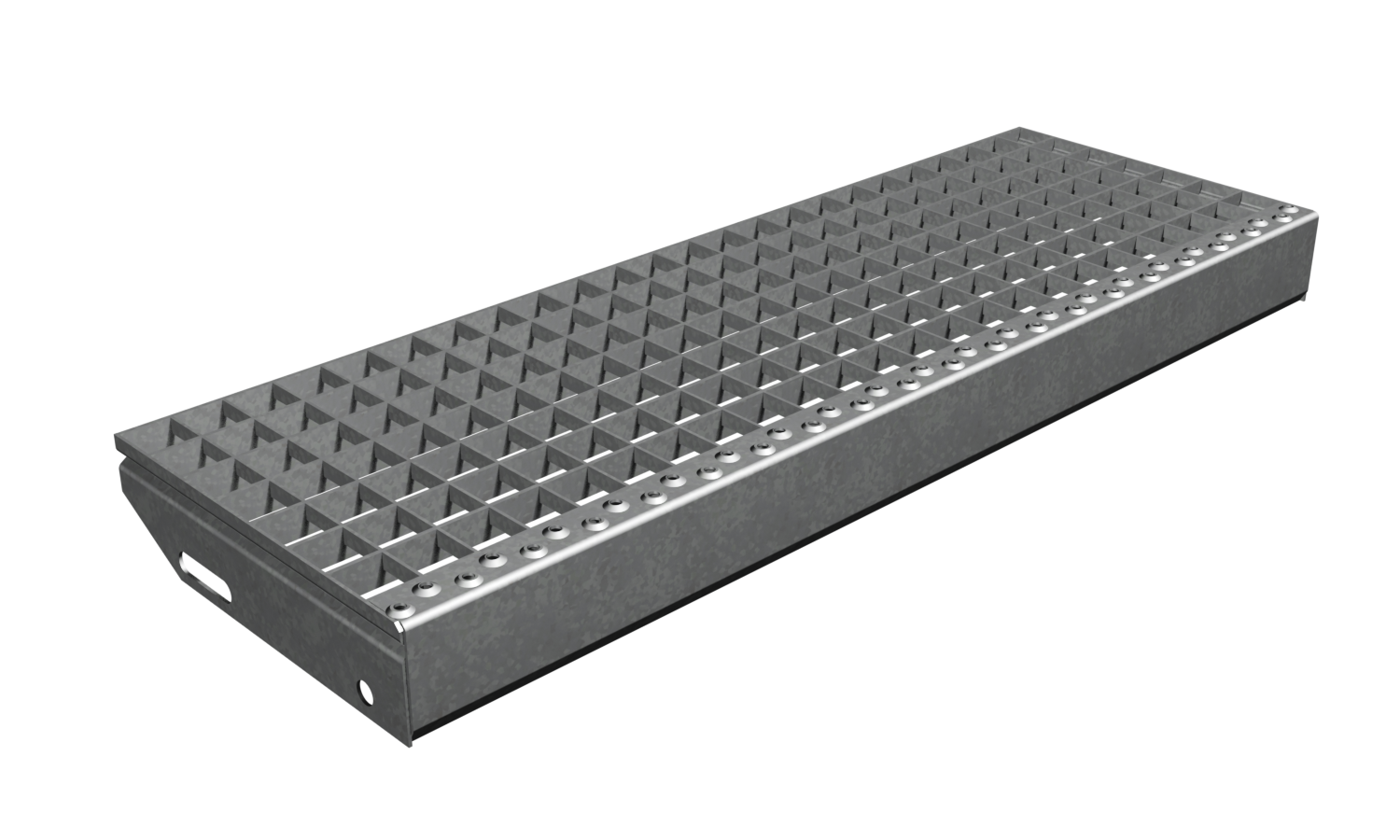

Pressed grating steps can be made from steel, stainless steel and aluminum. The production process is the same as for pressed gratings.
Press-welded grating steps can be manufactured from steel and stainless steel. The production process is the same as for press-welded gratings.
