GRP I + T profiled grating, set bolt fastening
Fixing bolt fastening consisting of retaining flange (length as required) and threaded nail.
GRP systems

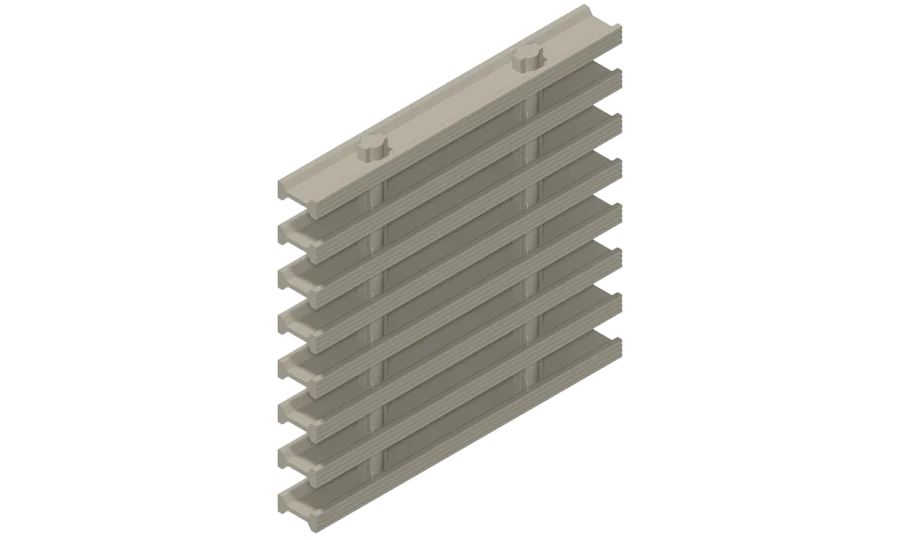

GRP I-profile gratings
GRP profile gratings consist of pultruded bearing and cross bars. The glass content of the grids is ~68 %. GRP profile gratings therefore have a significantly higher rigidity than cast GRP gratings. Therefore, larger spans can be achieved with these gratings or the overall height can be comparatively lower.
Ihre AnsprechpartnerThe special connection of support and cross bars ensures lasting stability.
The bearing bars are manufactured in accordance with EN 13706 with a structure consisting of longitudinal glass fiber rovings, cross-reinforcing glass fiber mats and a surface fleece. Various surfaces are available to choose from. Please also refer to our information on anti-slip properties.
Matching accessories
Attachments for GRP I-profile gratings
GRP I + T profile grating direct screw connection M0300
Consisting of flat upper part of plate, countersunk head screw M8 (length as required), washer 8.4 mm and self-locking hexagon nut M8.
GRP I + T profile grating direct screw connection M2900
Consisting of an overlying upper part of the plate, hexagon head screw M8 (length as required), washer 8.4 mm and self-locking hexagon nut M8.
