Gratings

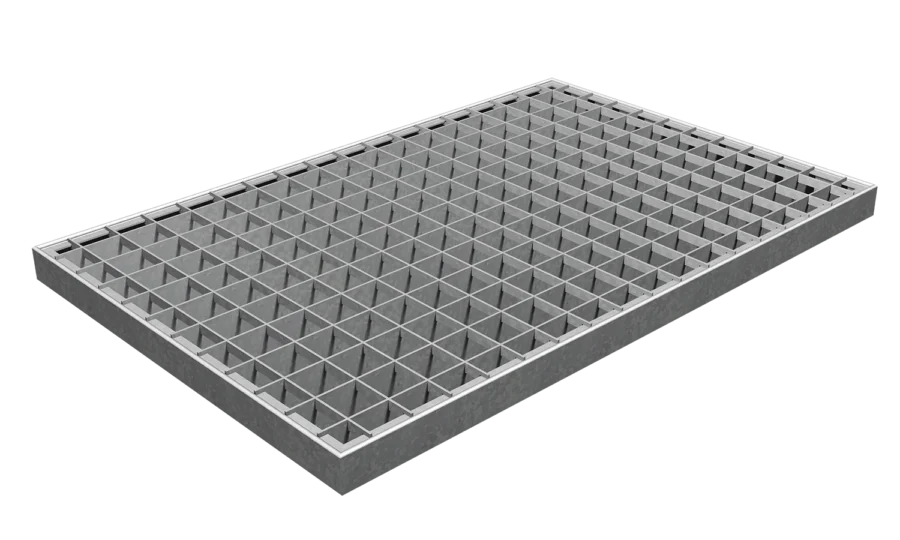

Press-Locked Gratings
Thanks to the wide range of available materials and design options, press-locked gratings can be tailored precisely to the requirements of each application.
Ihre AnsprechpartnerRather than claiming to be superior to press-welded gratings, press-locked gratings offer greater design flexibility and a more refined appearance, making them the preferred choice for many architectural and customised applications.
During production, the filler bars—typically made from cold-rolled flat steel—are pressed into pre-punched bearing bars. The perimeter frame is manufactured from either a T-section or flat bar and attached using the resistance welding process.
Where increased slip resistance is required, the bearing bars and/or filler bars can be serrated. Opposing end meshes are generally identical in size, although the manufacturing process allows for virtually unlimited design possibilities in terms of mesh configuration, dimensions and appearance
Common mesh spacings for bearing bars from 2 to 3 mm
| Support rod | Filler rod | Filler rod | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 11,1 | 11,1 | 16,65 | - | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 21 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 22,2 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 44,4 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 55,5 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
Common mesh spacings for bearing bars from 4 to 5 mm
| Support rod | Filler rod | Filler rod | |||||
|---|---|---|---|---|---|---|---|
| 21 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 25 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 50 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
Standard bearing bar profiles
| Support rod 2 mm | Support rod 3 mm | Support rod 4 mm | Support rod 5 mm |
|---|---|---|---|
| 20/2 | 20/3 | - | - |
| 25/2 | 25/3 | 25/4 | 25/5 |
| 30/2 | 30/3 | 30/4 | 30/5 |
| 35/2 | 35/3 | 35/4 | 35/5 |
| 40/2 | 40/3 | 40/4 | 40/5 |
| 45/2 | 45/3 | 45/4 | 45/5 |
| 50/2 | 50/3 | 50/4 | 50/5 |
| - | 60/3 | 60/4 | 60/5 |
| - | 70/3 | 70/4 | 70/5 |
| - | 80/3 | 80/4 | 80/5 |
| - | 90/3 | 90/4 | 90/5 |
| - | 100/3 | 100/4 | 100/5 |
| - | - | - | 110/5 |
| - | - | - | 120/5 |
| - | - | - | 130/5 |
| - | - | - | 140/5 |
| - | - | - | 150/5 |
| - | - | - | 160/5 |
| - | - | - | 170/5 |
Matching accessories
Attachments for Press-Locked Gratings
Terminal B10
Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.
Clamp S
Consists of flat-head screw, clamp base and square nut.
Safety terminal D
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Safety terminal A
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
Grating butt connectors
Consisting of upper part and lower part with thread and hexagon socket screw.
Grille setting bolt fastening
Consisting of bolt and plate.
Welded-in perforated plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
Double terminal B
Consists of 2 upper bracket parts, lower clamp part, 2 hexagon bolts and 2 square nuts.
