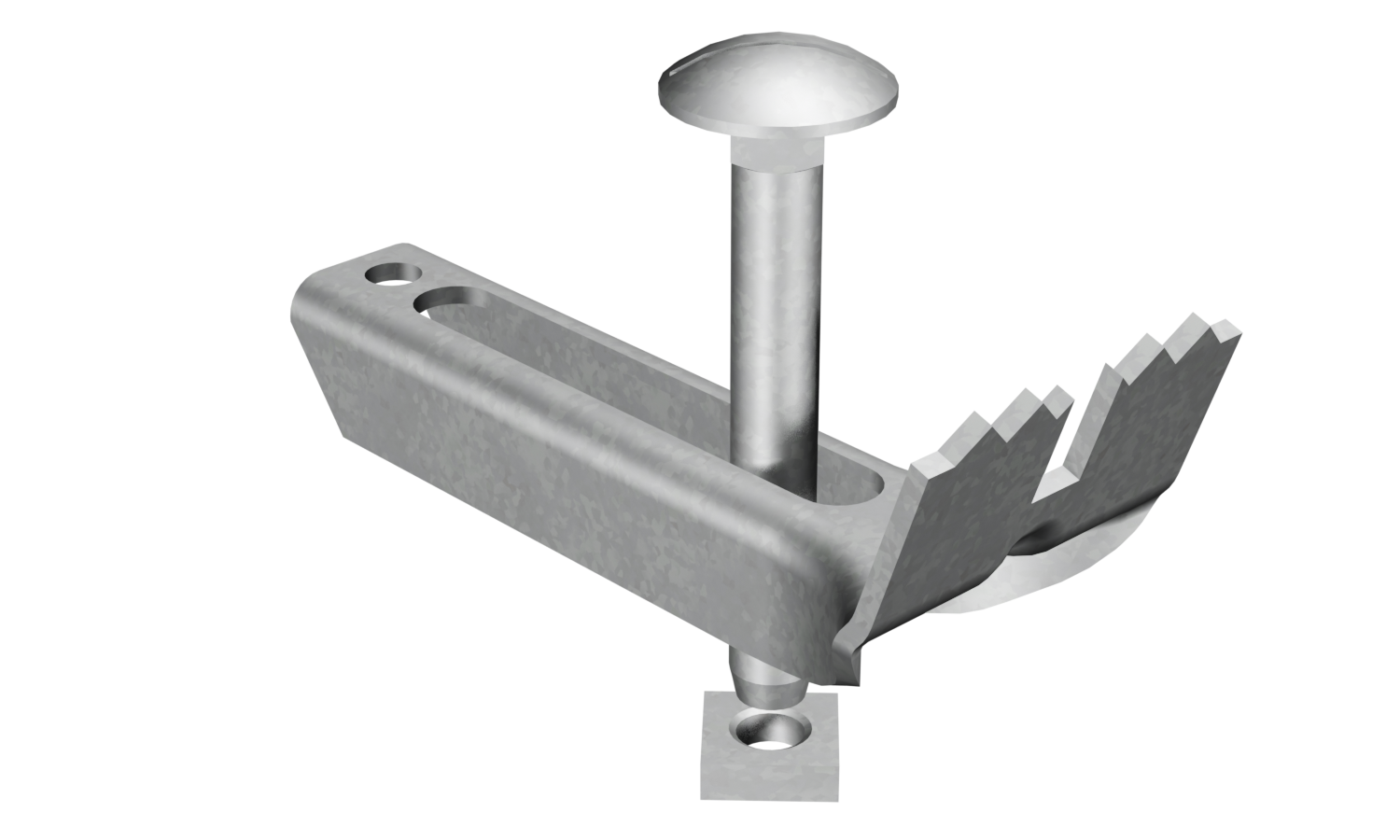

Clamp S
Consists of flat-head screw, clamp base and square nut.
Gratings
Boat Dock Gratings
Our range of specialty gratings also includes MEISER boat dock gratings. Instead of the cross bars typically used, these gratings feature cross bars with a flat, pressed-in U-profile.
Find a contact person GratingsThe boat dock grating is therefore ideal for all types of flooring that do not allow much of a view downward. The clear spacing between the treads is approximately 9 mm; they are made of steel or stainless steel.
Common mesh divisions
| Bearing bar | Cross bar |
|---|---|
| 22,20 | 8,25 |
| 33,30 | 8,25 |
| 66,60 | 8,25 |
Standard bearing bar profiles
| Bearing bar 2 mm | Cross bar 3 mm |
|---|---|
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
| 45/2 | 45/3 |
| 50/2 | 50/3 |
| - | 60/3 |
Matching accessories
Attachments for Boat Dock Gratings
