C-pile double hook
Secure wire guide for stable and durable systems.

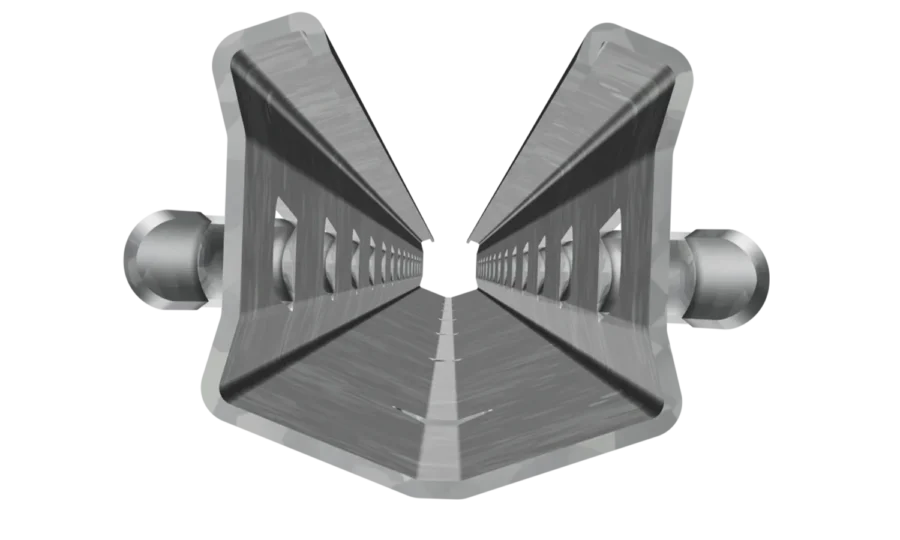

The C40 is a square, compact stake for trellis heights of up to 1.30 m above the ground.
A reinforcement bar at the base provides additional stability and ensures reliable stability even when mechanically processed. This makes the pole ideal for various trellis systems up to 1.30 m high.
| Dimensions (closed x open side) | 42x40 | ||||||
| Material thickness | 1.50 mm/1.80 mm/2.00 mm 1.60 mm/1.90 mm/2.10 mm | ||||||
| Installation depth | up to 1.80 meters minimum 50 cm, from 2.0 meters 1/3 of the pile length | ||||||
| Standard pole lengths | 140-250 | ||||||
| Available metals/finishes/steel grades | Piece galvanized (S235JR HDG), strip galvanized (S250GD+Z275), zinc magnesium (S250GD+ZM310), weatherproof steel (S235JOW C-Type) | ||||||
| Standard height of the system | 1.40 - 1.60 meters above the ground |
Available hooks
Fits perfectly with C40
C-pile hook
Sophisticated hook for maximum safety and efficiency in viticulture.
