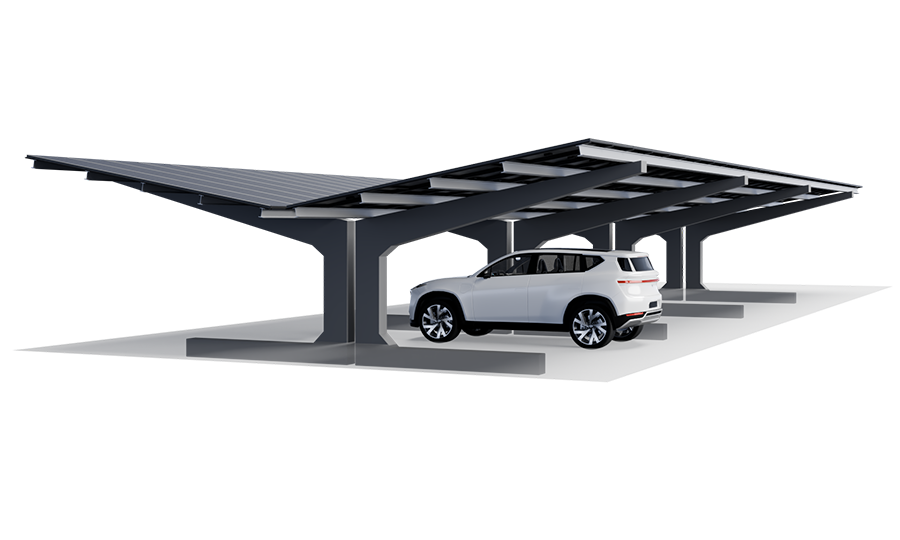

Combination SOLID-5 and SOLID-5
The combination of two SOLID-5 models creates a large V-roof for 2-row parking spaces. The carports can also be separated by a green strip. The column position allows the doors to be opened unhindered. The length of the carports is variable in 1-module increments.
Ihre AnsprechpartnerSecurely anchored with driven foundations, concrete foundations or screw foundations
Regardless of where your solar project is being built – whether on flat farmland, rolling hills, former industrial sites or challenging wasteland: securely anchoring the module tables in the ground is crucial for the longevity, operational reliability and cost-effectiveness of any ground-mounted photovoltaic system.
Choosing the right foundation variant forms the foundation of a sustainable and technically convincing successful project.
- 2-4 module rows upright
- Various project-specific foundation solutions possible, including pile-driven and concrete foundations. Adaptation to ground screw foundations possible. Suitable for soil classes 1-3
- Table inclination 10°-30°, other inclinations on request
- Wind and snow loads are project-specific. Local rules and regulations are taken into account
- Ground clearance 400-1000mm, project-specific approval possible
- Suitable for all commercially available module types
- Module screw connection: threaded terminals screwed from below and direct screw connection
- Rammed foundations steel, hot-dip galvanized to DIN EN ISO 1461, also strip galvanized on customer request ZM430-ZM800
- Profiles without ground contact Strip galvanized ZM310 DIN EN 10346
- Static calculation of the individual tables based on regional data. Delivery of the complete assembly material.
- Up to 40 years product warranty. Individual warranty agreements available.
