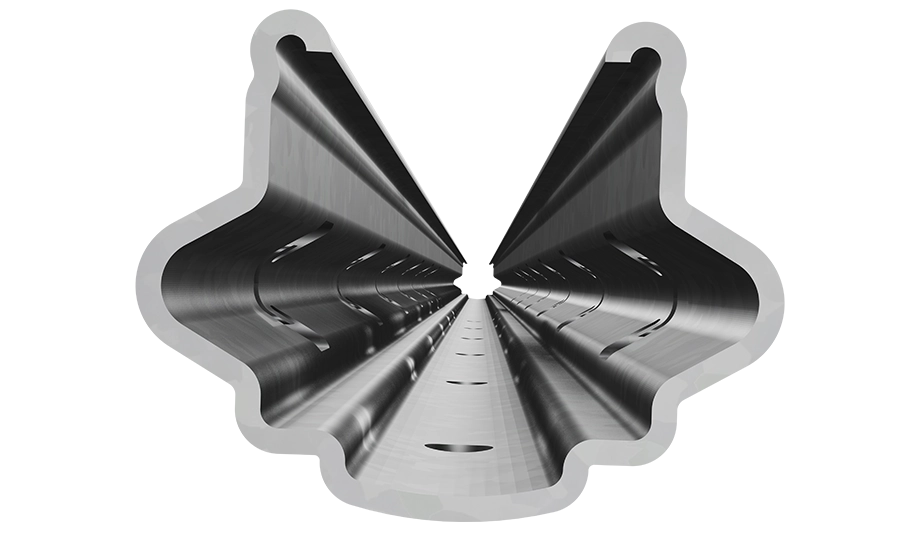

The E540 is a pole with M-cut-outs that allow the wires to be held securely for fast and effective retractions.
Thanks to its reinforced cross-sections, it can reach trellis heights of up to 1.60 m with a thickness of 1.5 mm and up to 1.80 m with a thickness of 1.8 mm.
| Dimensions (closed x open side) | 40x50 | ||||||
| Material thickness | 1.50 mm/1.80 mm | ||||||
| Installation depth | up to 1.80 meters minimum 60 cm, from 2.0 meters 1/3 of the pile length | ||||||
| Standard pole lengths | 180-250 | ||||||
| Available metals/finishes/steel grades | Strip galvanized (S250GD+Z275), zinc magnesium (S250GD+ZM310) | ||||||
| Standard height of the system | 1.70 meters above the ground |
