Permanent Systems

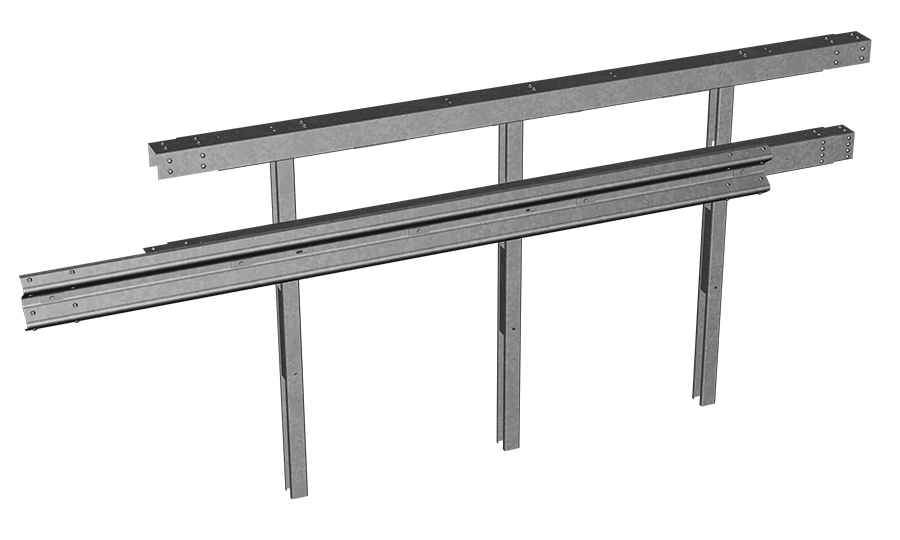

Eco-Safe 1.33 BW Guardrail is a vehicle restraint system for structures and roadsides with an integrated guardrail function. The system is suitable for applications where additional personal protection is required in addition to vehicle restraint.

The design supports a defined impact behavior and transfers forces into the structure in a controlled manner.

Installation is carried out using dowelled base plate posts with approved anchoring systems. In addition, different anchoring variants are possible for different structural situations, for example for steel bridges or inclined structural caps.

Eco-Safe 1.33 BW railings meet the requirements of DIN EN 1317 and achieve containment level H1 with an effective width of W4 and impact severity level B.

With a system height of 1.35 m and a post spacing of 1.33 m, the system is particularly suitable for applications on bridge structures and other permanently installed safety barriers.
