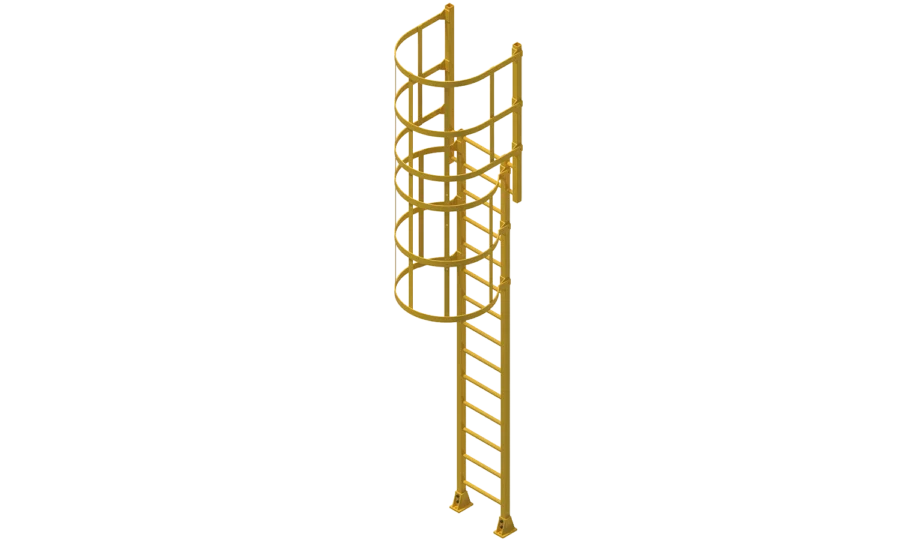

GRP Ladders
MEISER GRP ladders are manufactured from premium-quality pultruded GRP profiles, providing excellent structural strength, outstanding corrosion resistance and exceptional electrical insulation.
Your contact persons GratingsManufactured in accordance with DIN EN ISO 14122-4 and EN 131, they ensure reliable compliance with the highest safety standards.
-
- Clear ladder width: 400 mm (500 mm optional)
- Ladder stiles manufactured from 50 × 50 mm square tube
- Coupling system for ladder lengths exceeding 6 m
- Protective end caps for ladder stiles
- Ribbed, non-slip GRP ladder rungs

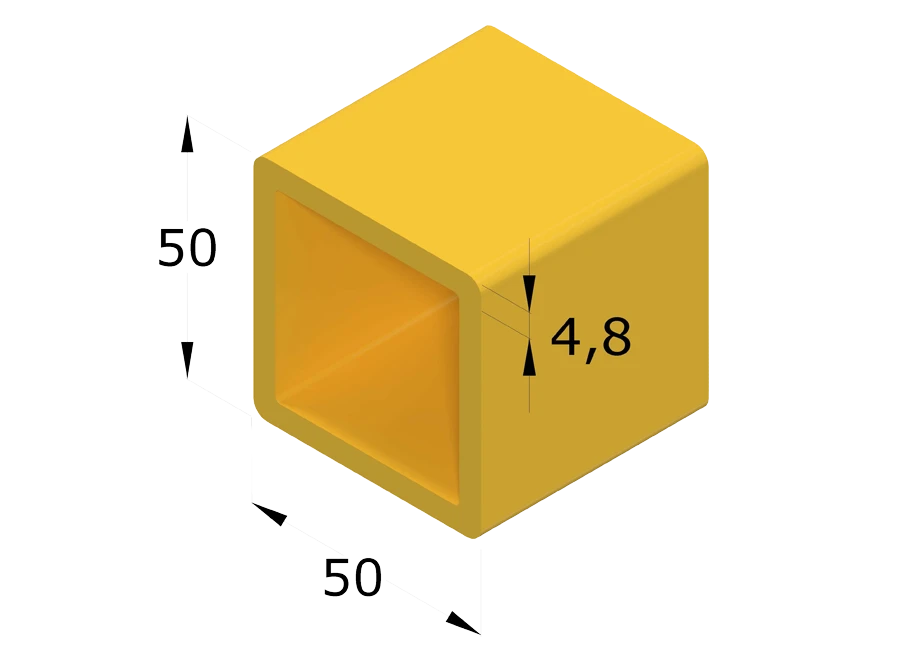

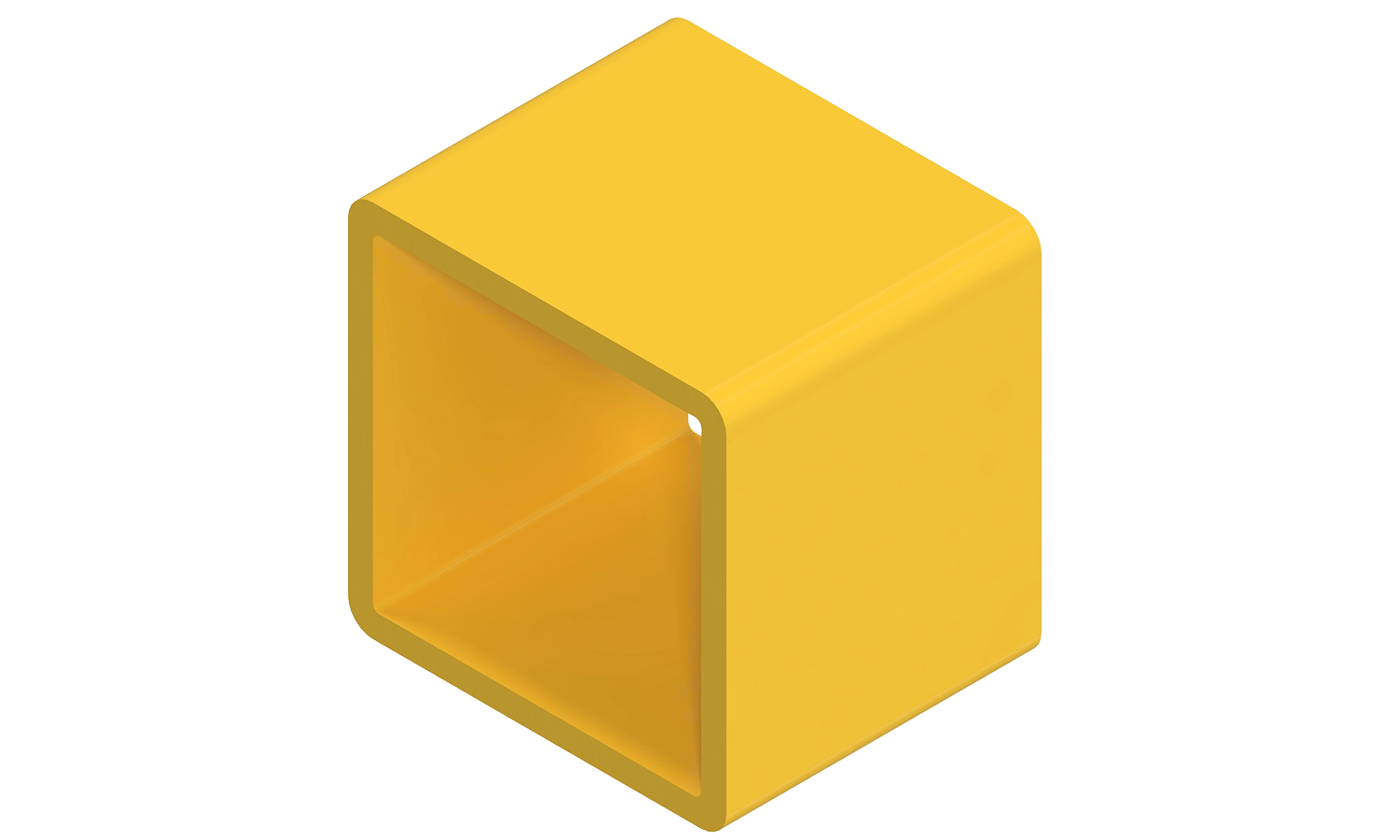

Tie bar (square tube)
| Dimension | Designation according to EN 13706 | Weight/m |
|---|---|---|
| 50 x 4.8 mm | QR 50x50/4.8 EN 13706-BGV-IFU E23 | 1.57 kg |

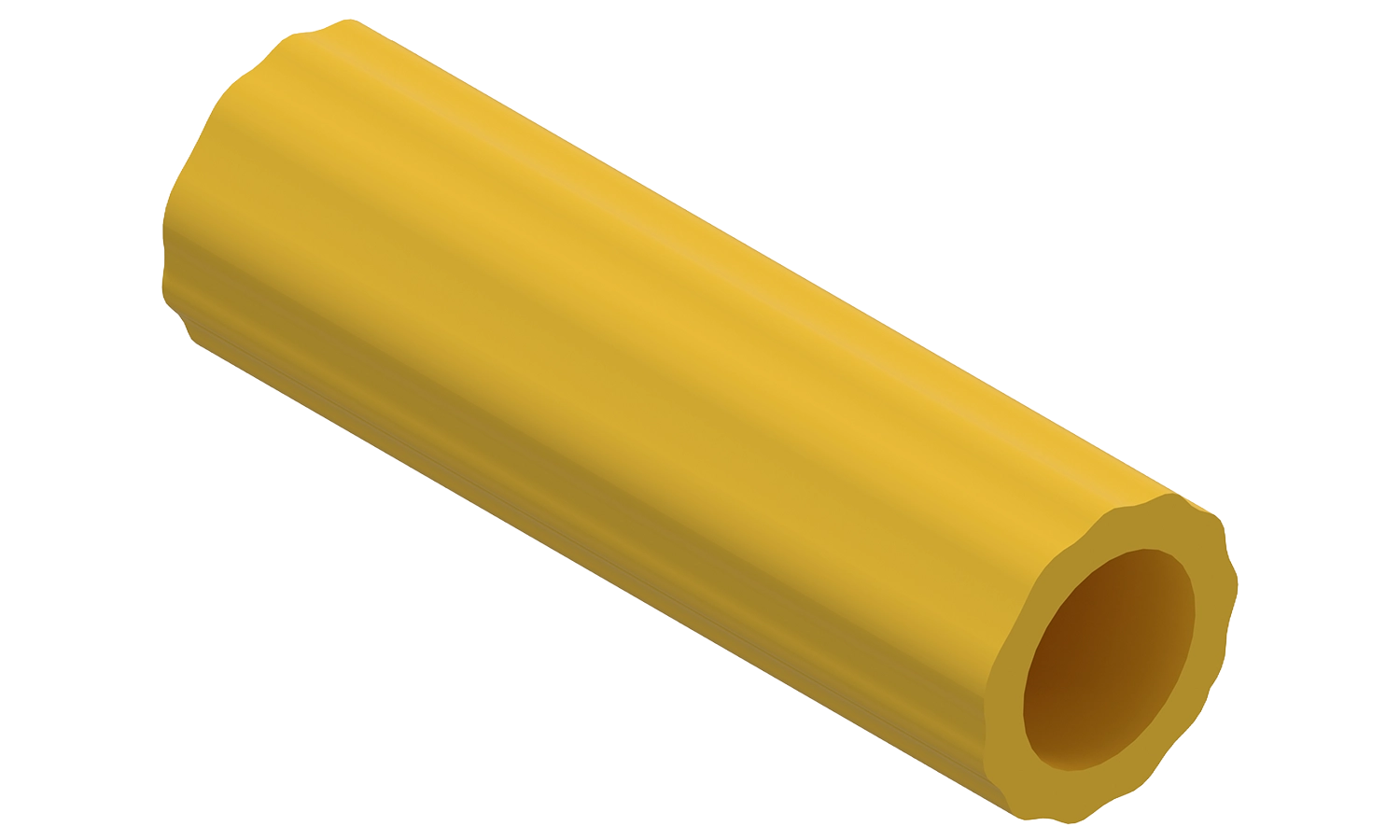

Rung
| Dimension | Designation according to EN 13706 | Weight/m |
|---|---|---|
| 32 x 5 mm | LS31 EN 13706-ZGV-IFU E23 | 0.8 kg |
Detailed views
Standard ladder

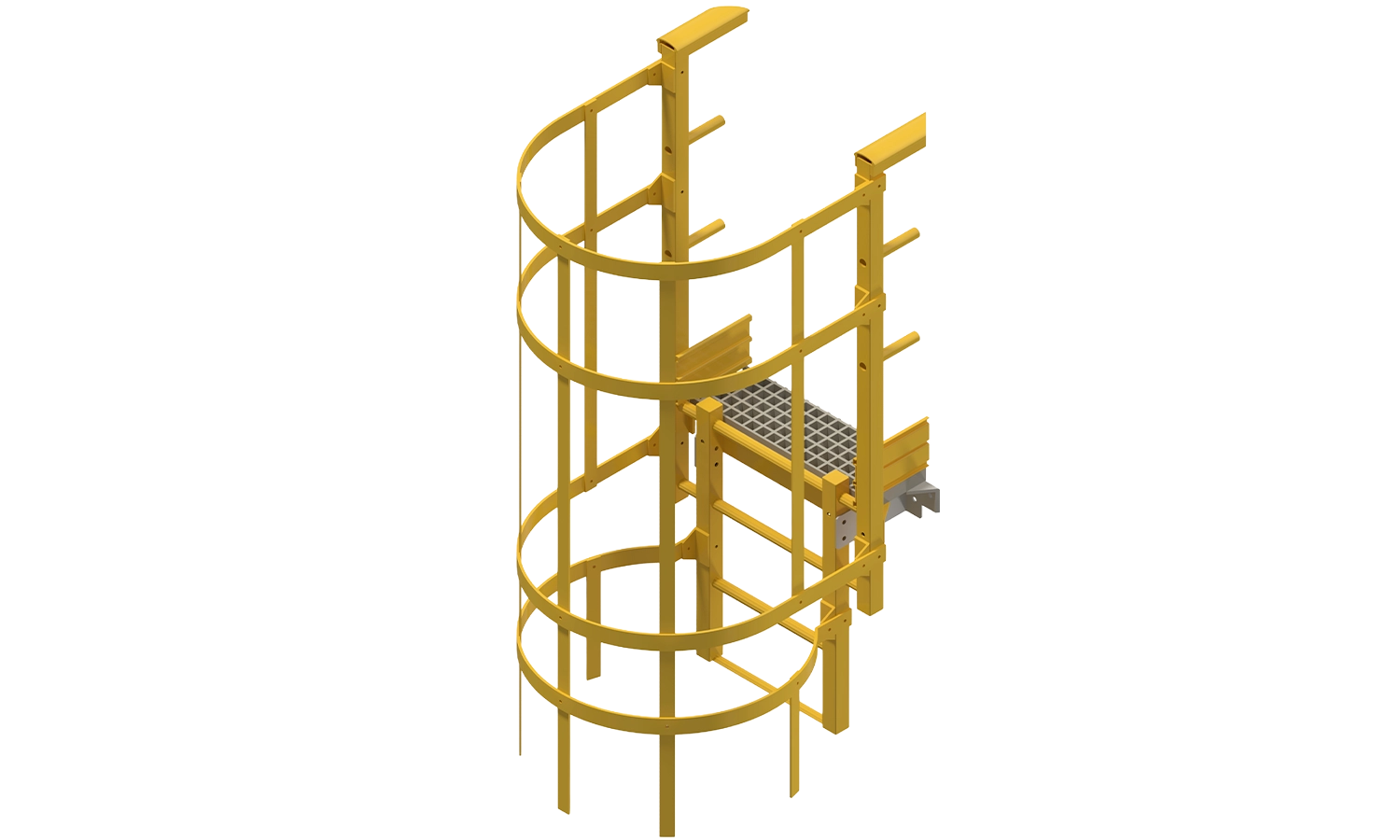

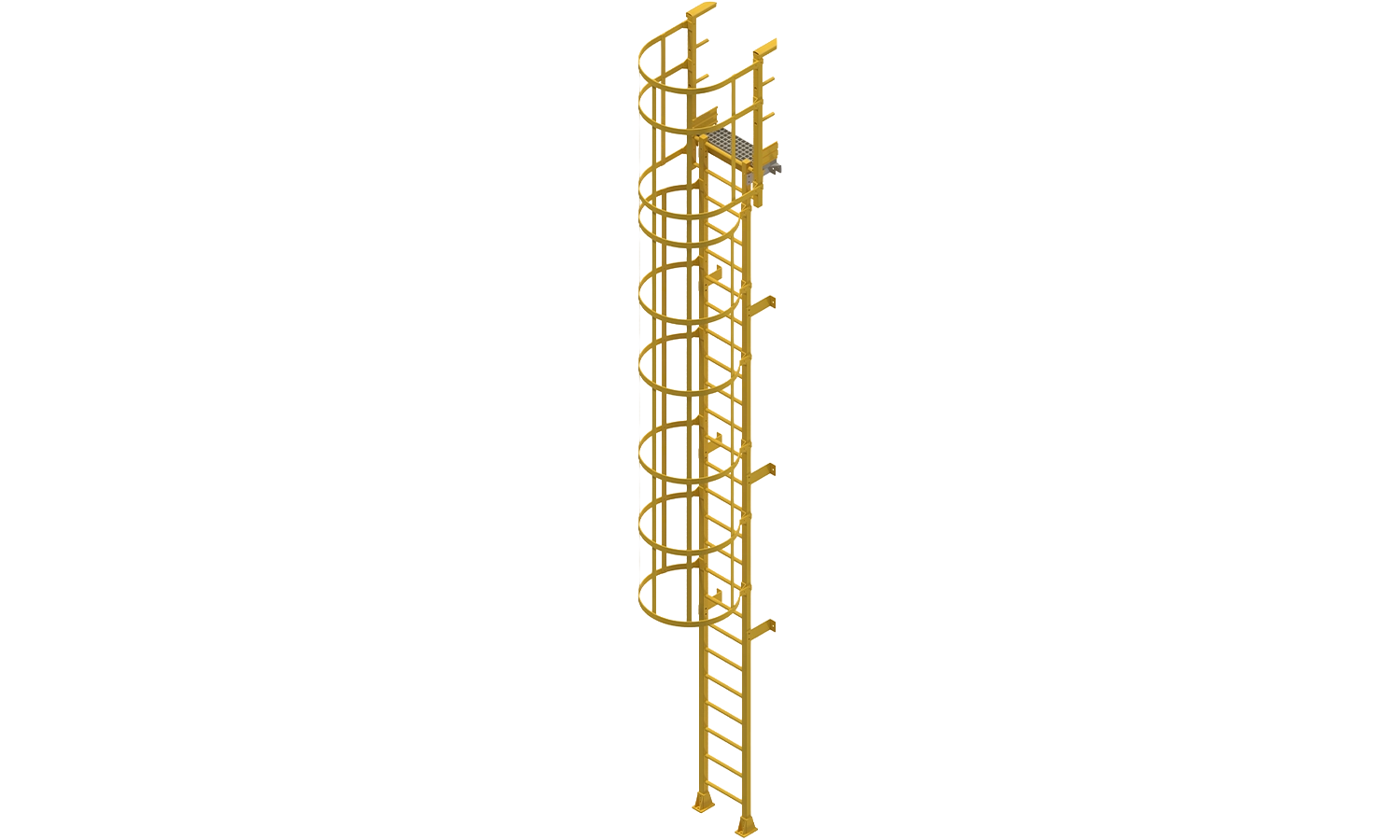

Basket ladder with front exit

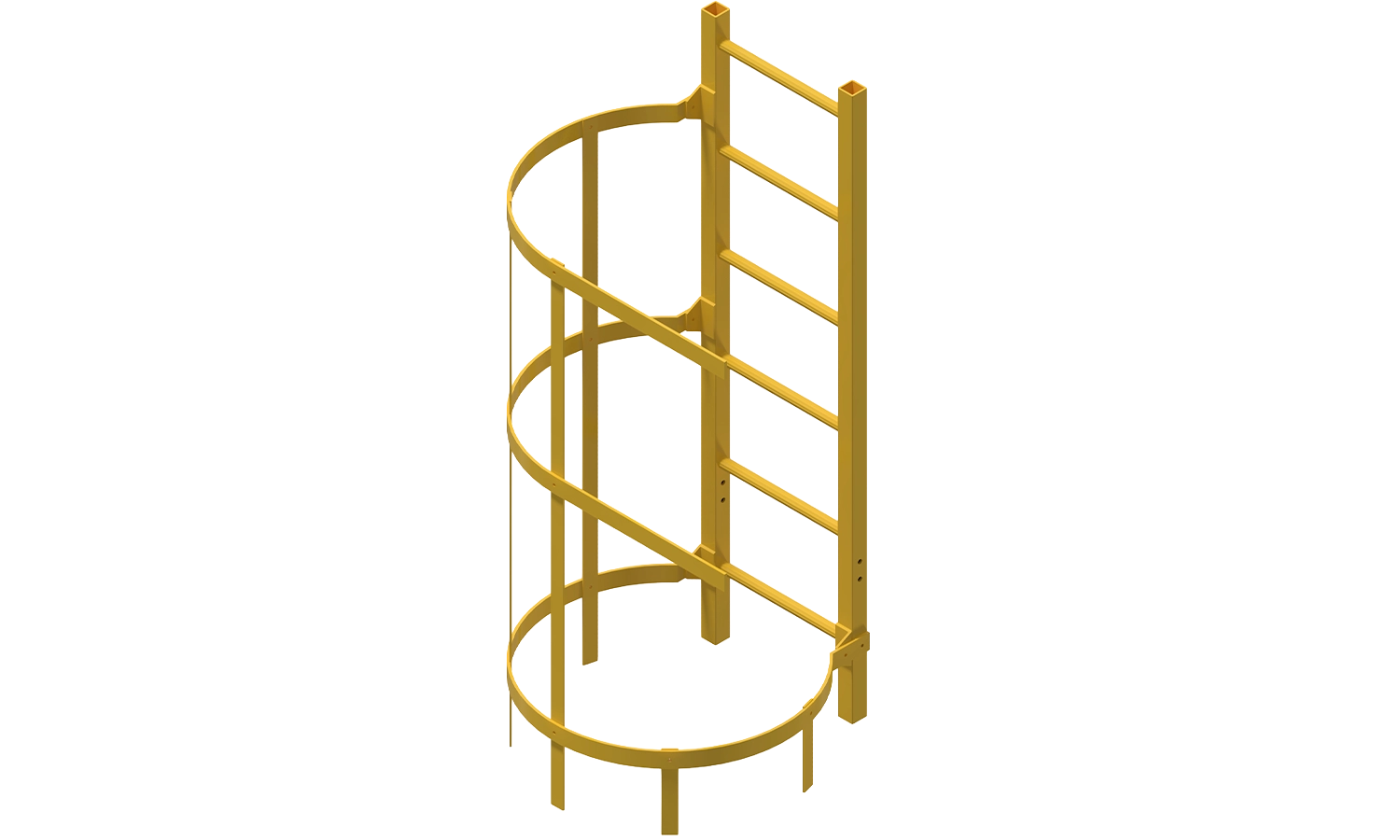

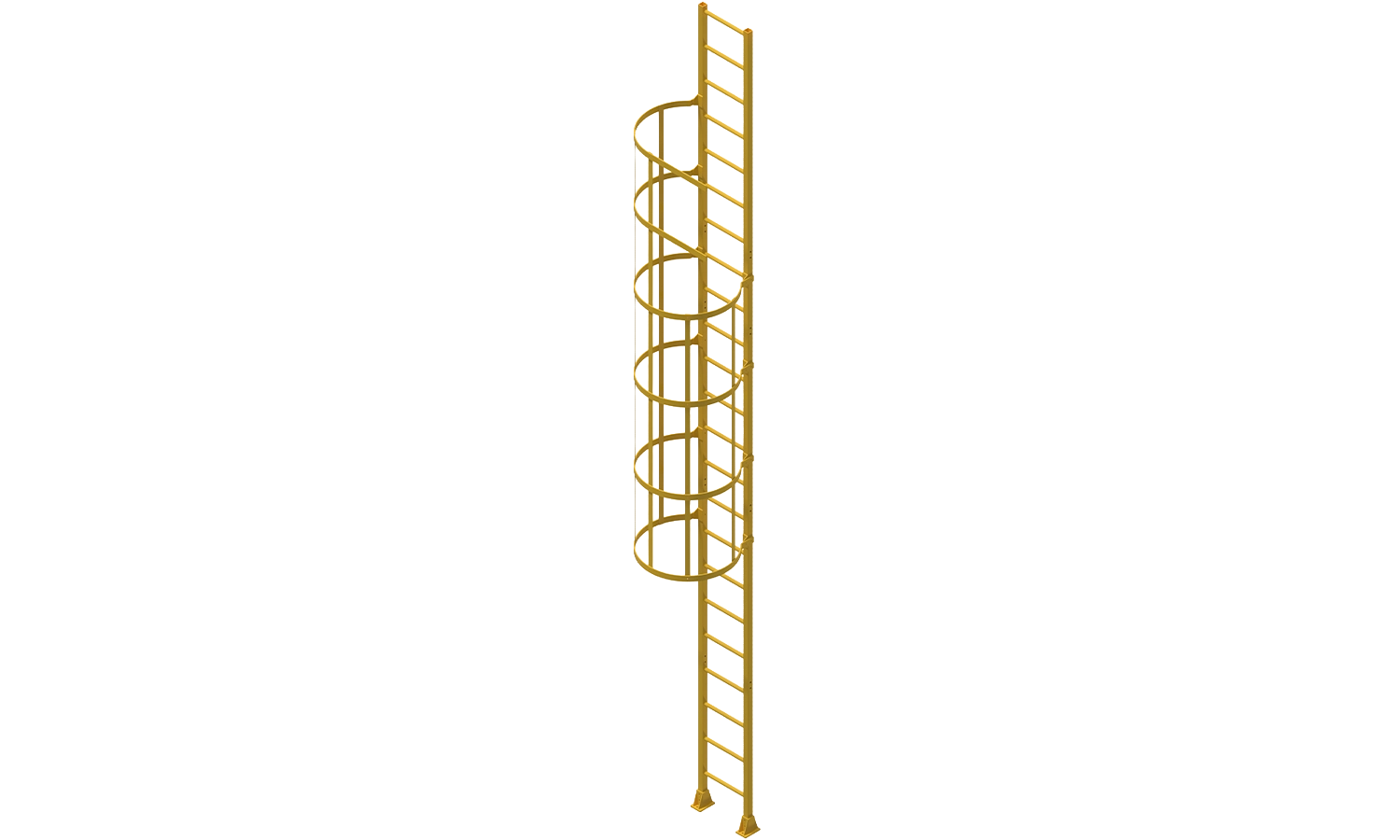

Basket ladder with side exit

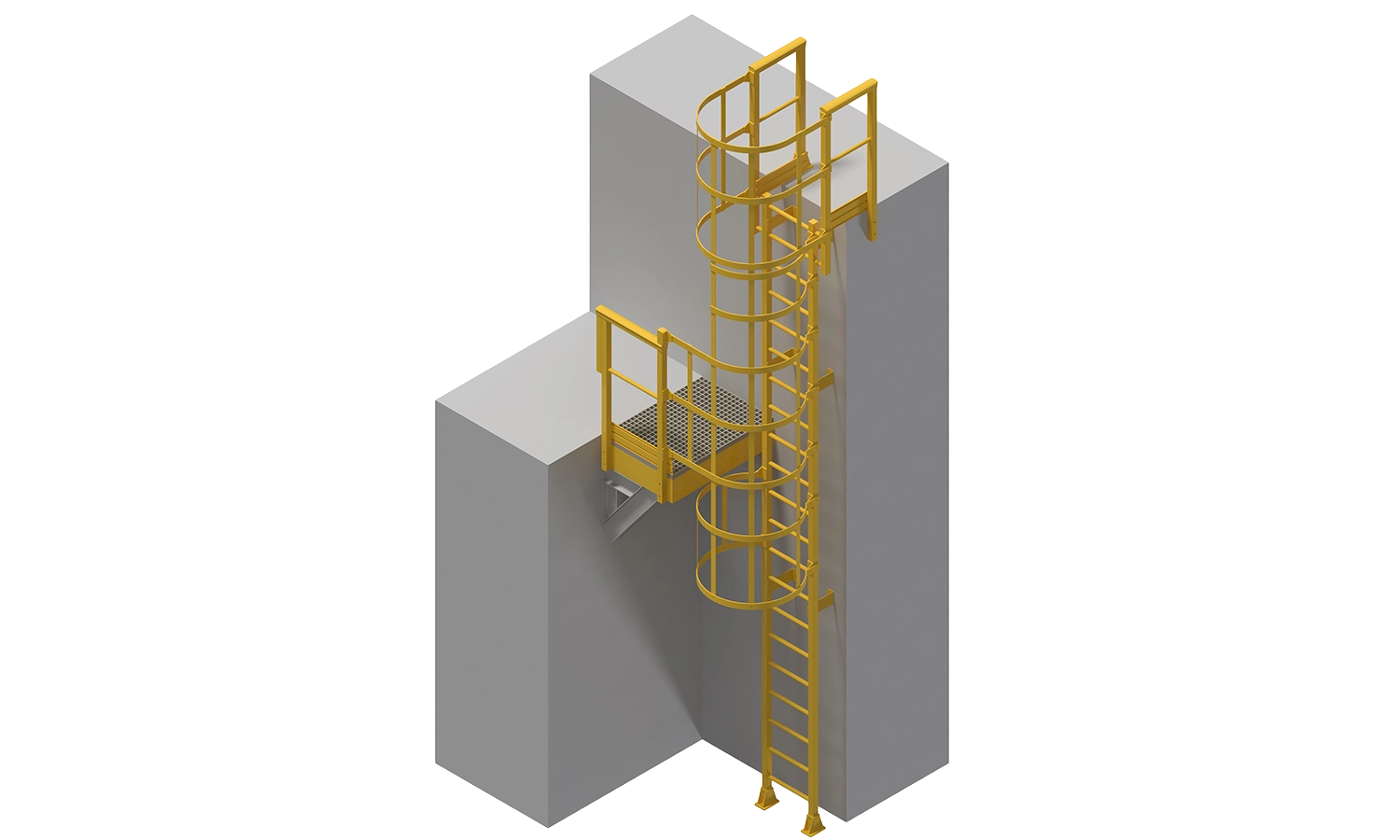

Basket ladder with resting platform

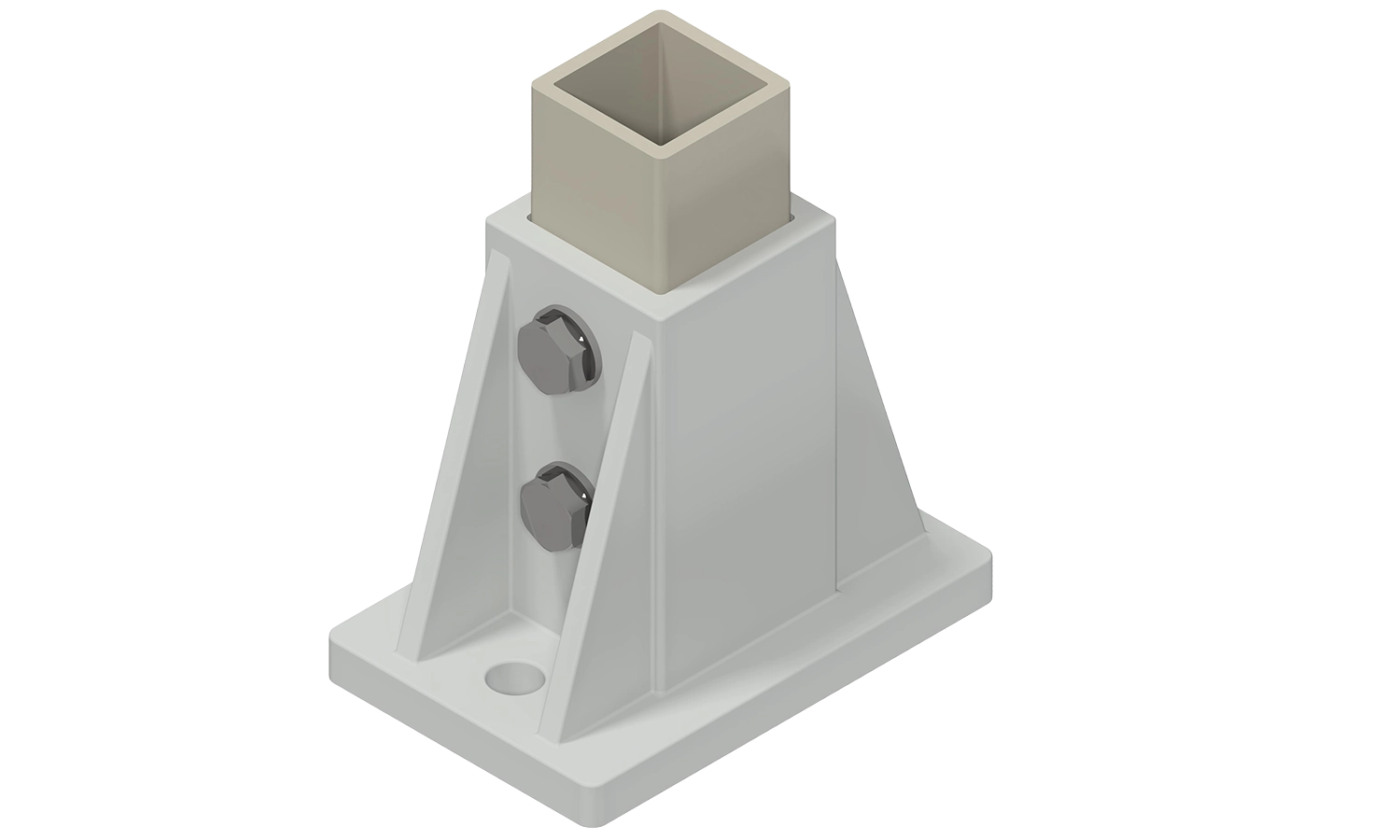

Base for basket ladder
Depending on the application, the following add-on options and accessories are available:
- GRP base shoes for ground fixing
- Wall mounting brackets
- Safety cage (standard from 3 m ladder height) with five vertical support profiles
Safety cage design as required
a) Safety cage with left- or right-hand side exit
b) Safety cage with enlarged exit from 400 mm to 750 mm diameter
c) Safety cage with 700 mm front exit - Metal-reinforced retractable exit extension
- Rest platform with safety railing and wall fixing (standard from 6 m ladder height)
Rest Platform
According to applicable standards, ladders exceeding 6 m in length must incorporate at least two staggered ladder sections separated by a rest platform. Access from the lower ladder section is provided through a safety cage with either left- or right-hand exit. The platform consists of a robust support structure with a GRP grating deck and integrated safety railing.
