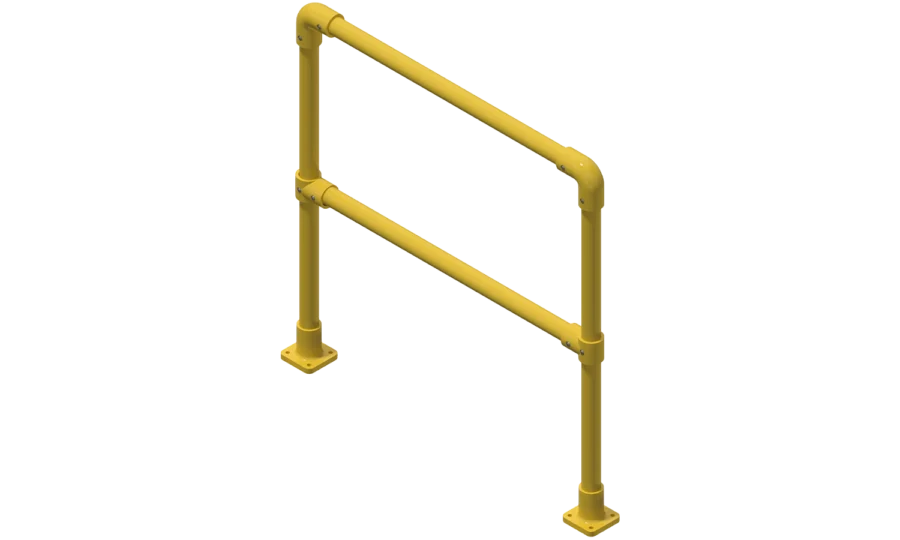

GRP round tube railing
The GRP round tube railing consists of GRP tubes (D = 50 mm). The tubes are connected to each other and in the corner area using special GRP fittings. The tubes are glued into these fittings and additionally stabilized using special rivets.
Ihre AnsprechpartnerThe round tube railing in corresponding segment lengths is ideal as a plug-in railing. Optionally, the connection to the substructure can also be made using a GRP post shoe.
Post, handrail and knee strap (round tube)
| Diemension (ØA X D) | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 50 x 4 mm | R50/4 EN 3706-OGV-IFU E23 | 1.12 kg |
Baseboard
| Dimension | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 150 x 12 x 3 mm | Fl 150/3 EN13706-ZGV-IFU E17 | 0,99 kg |
Detailed view

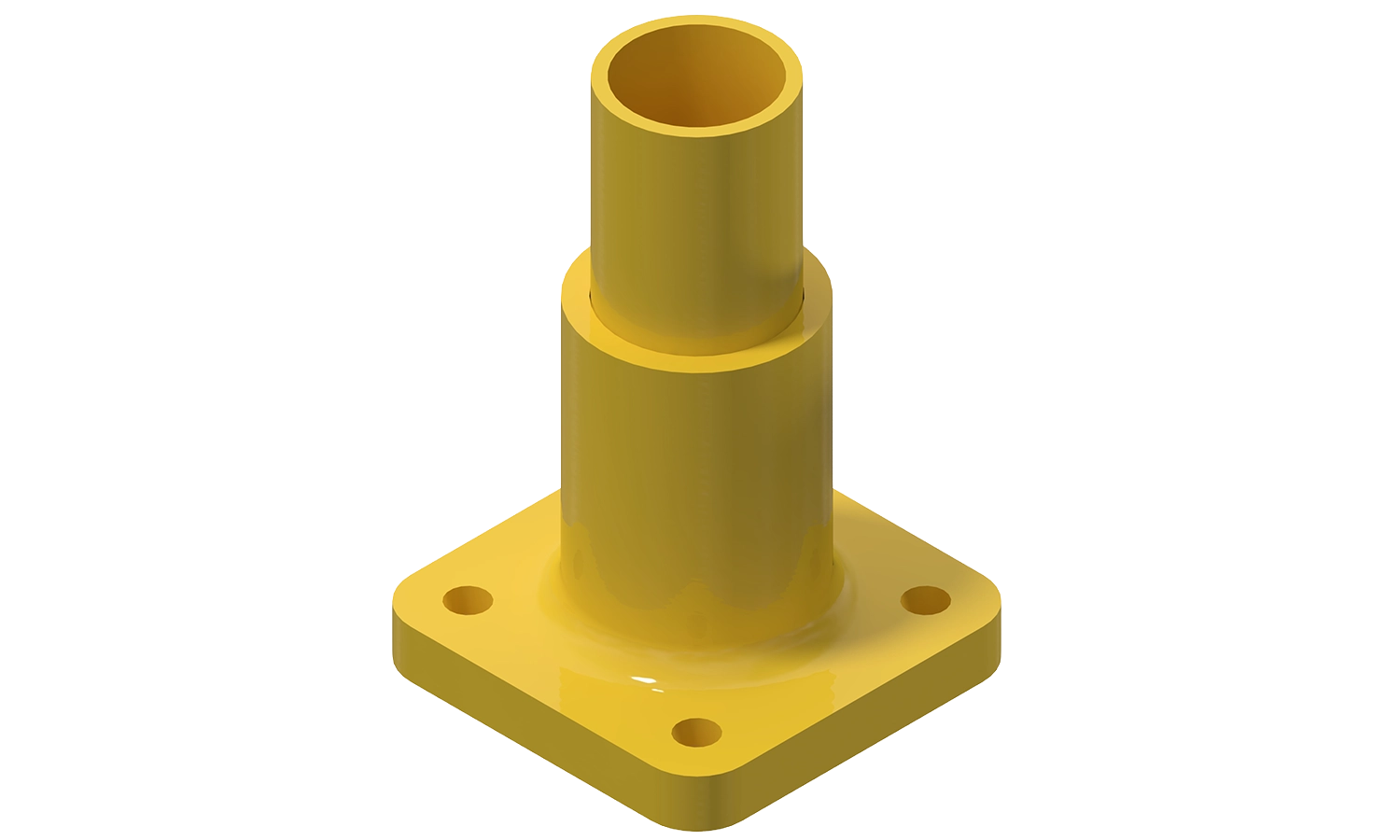

Round tube railing foot

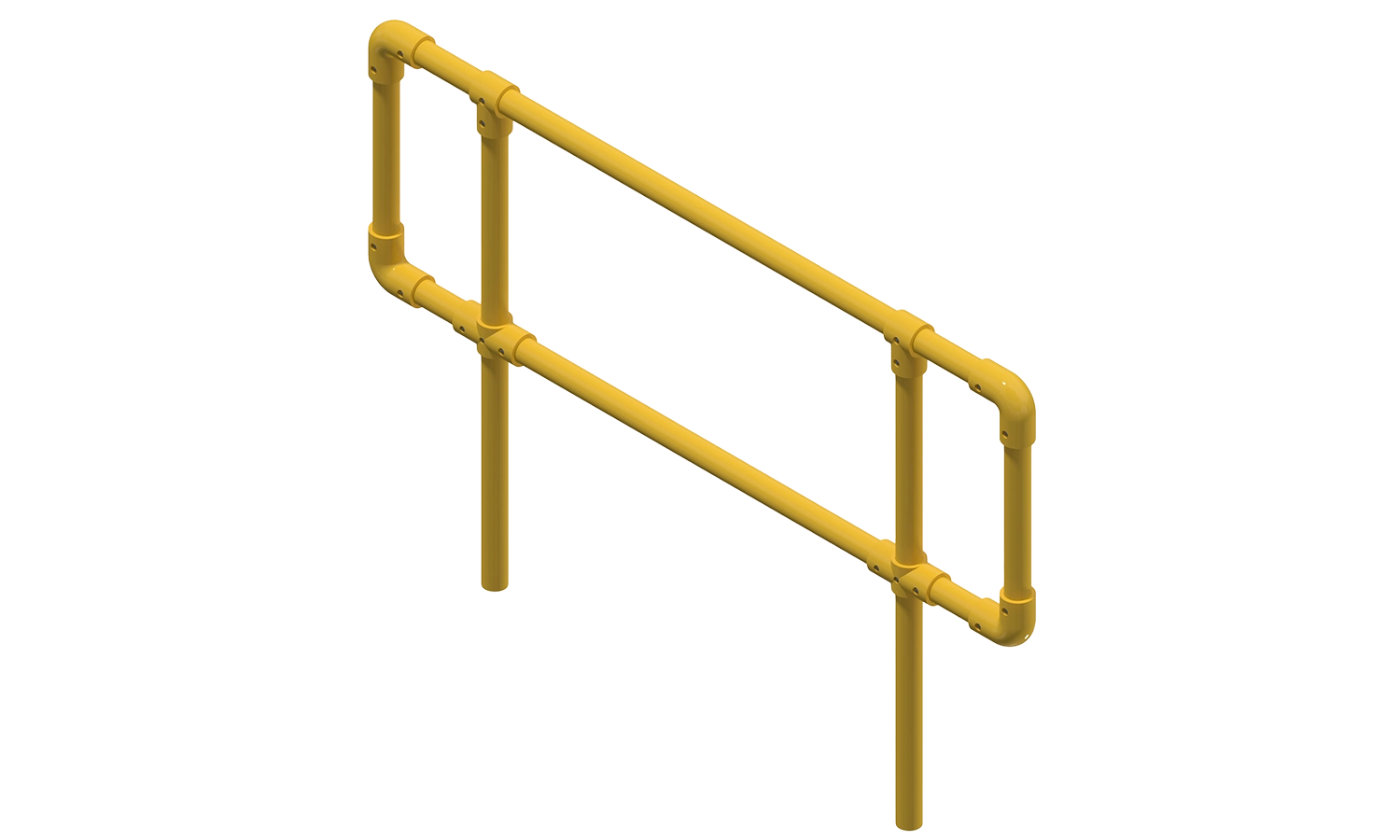

Round tube segment

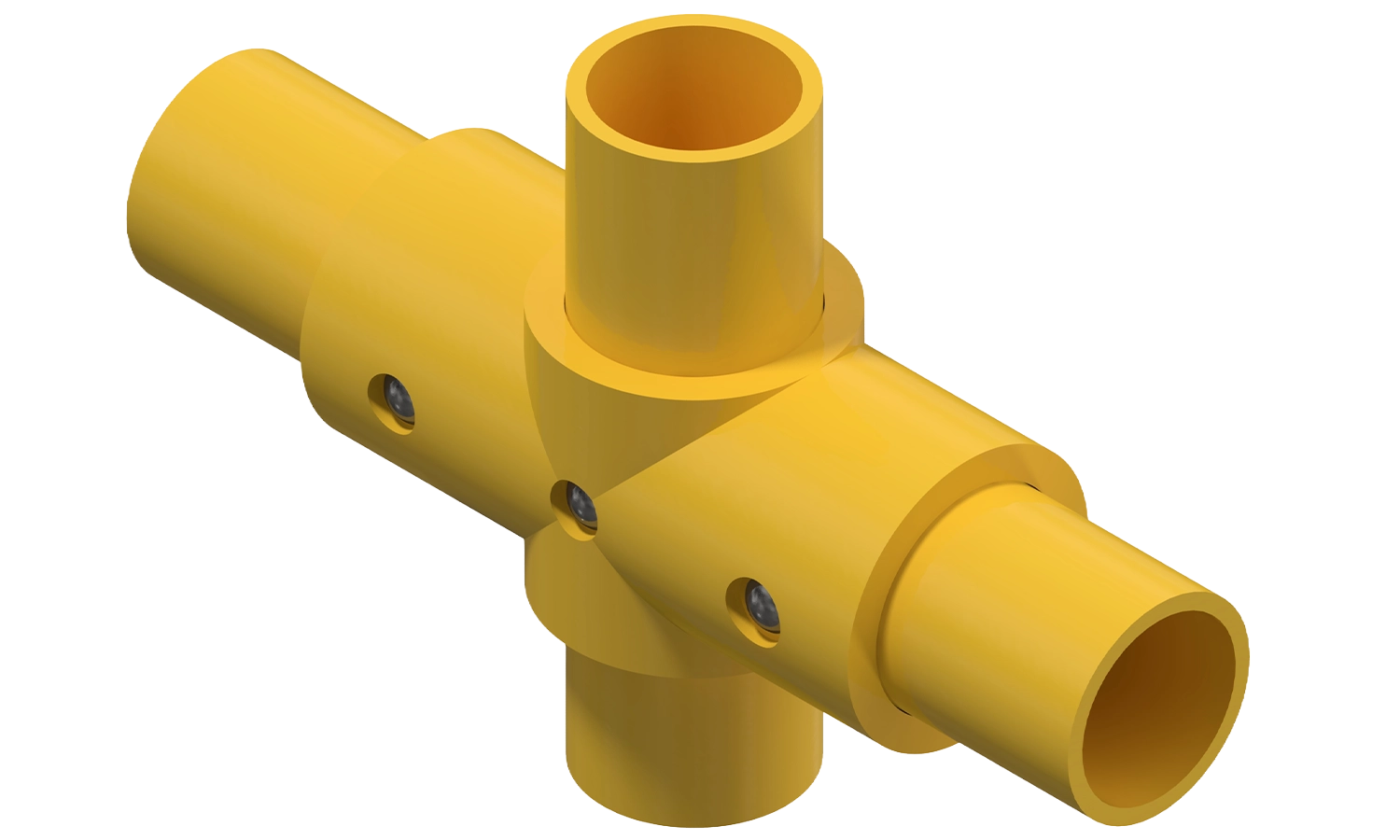

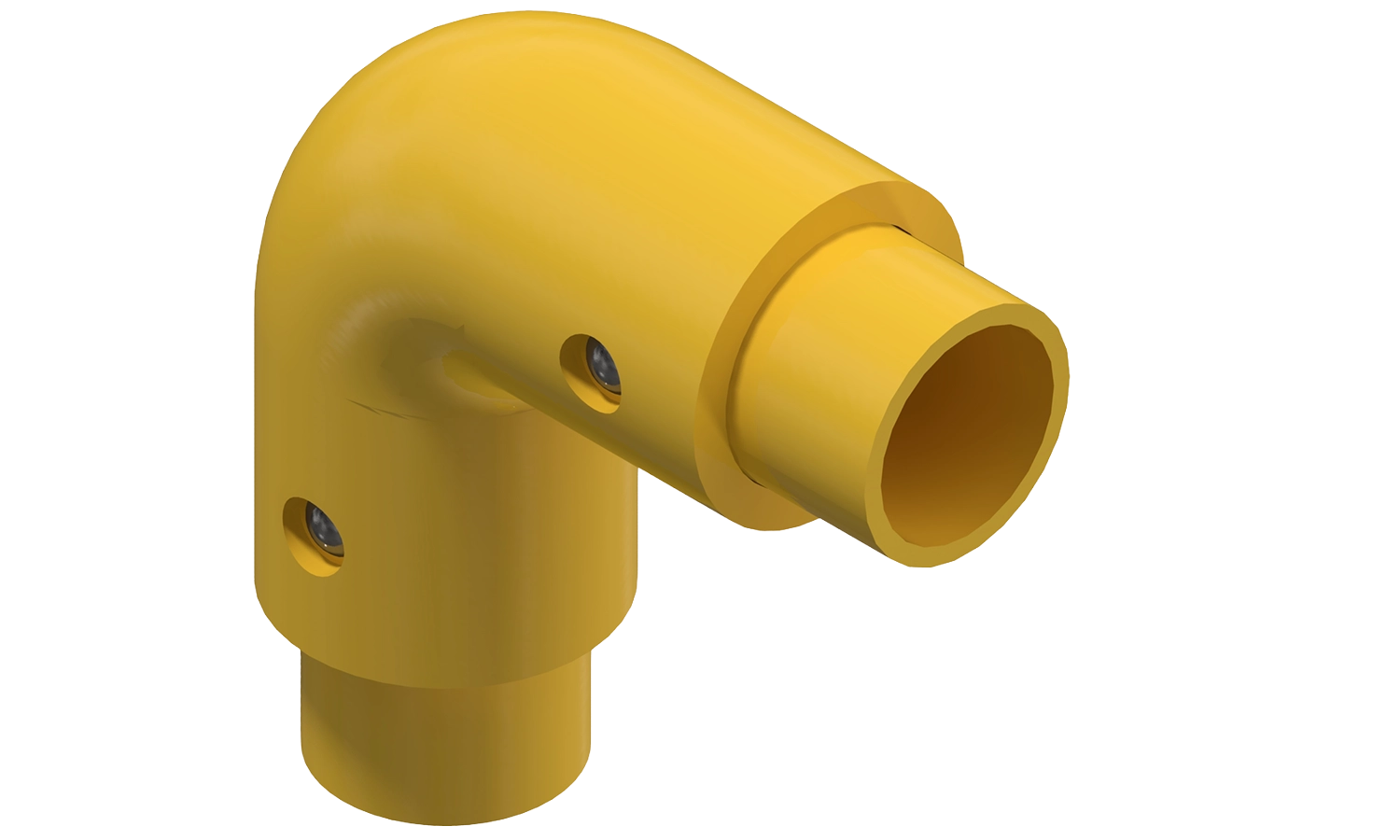

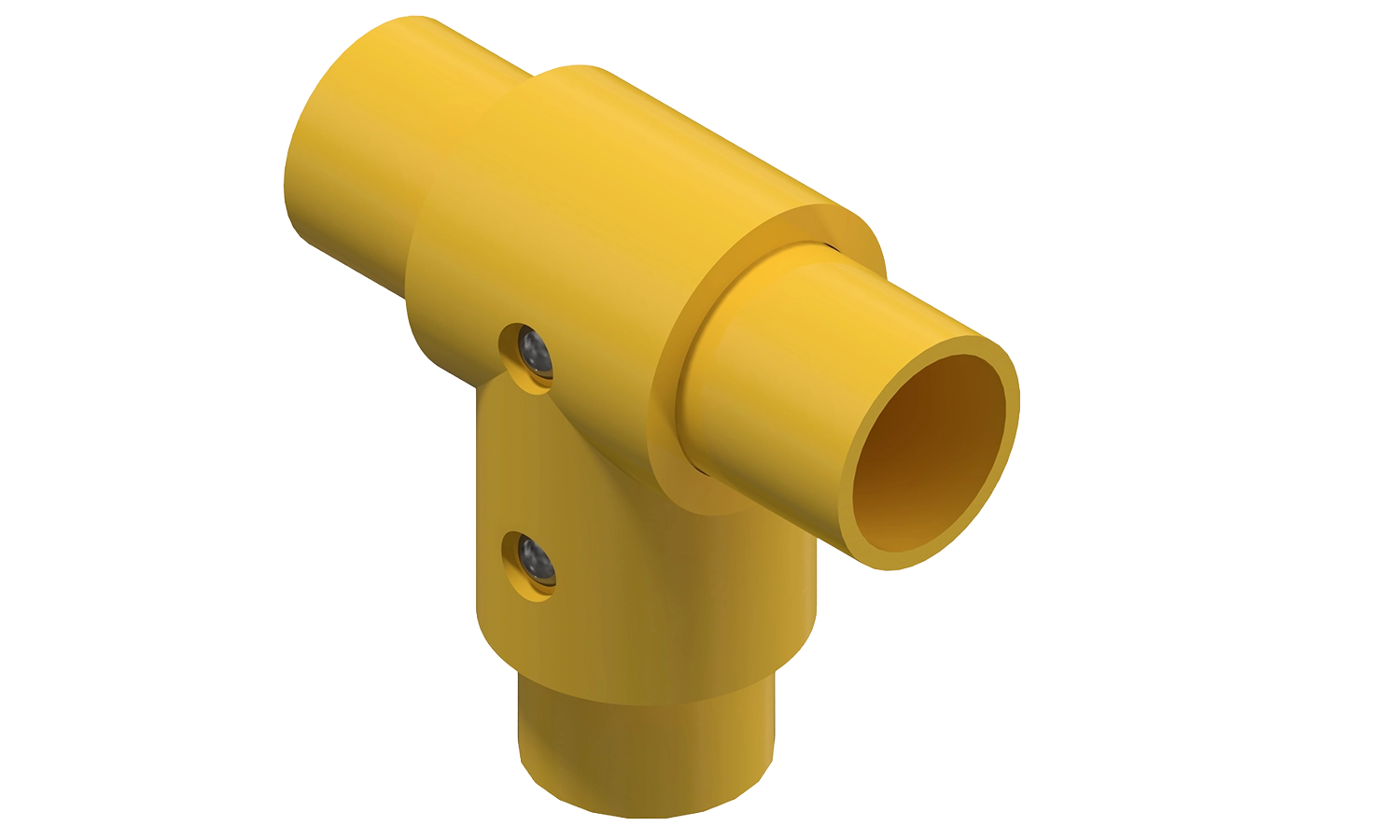

Round tube segment connector
