GRP standard railing
The GRP standard guardrail is a railing in accordance with DIN EN ISO 14122-3 with an ergonomically shaped handrail, a knee rail (either single or double) and a toe rail.
Ihre AnsprechpartnerDepending on the static requirements, the GRP standard railings are available with a post cross-section of 50 x 50 mm or 60 x 60 mm. Connectors for the handrail, knee rail(s) and toe boards are included in the scope of delivery. The connection to the substructure is either screwed to the side or by means of special post shoes made of GRP or metal material.
Post (square tube)

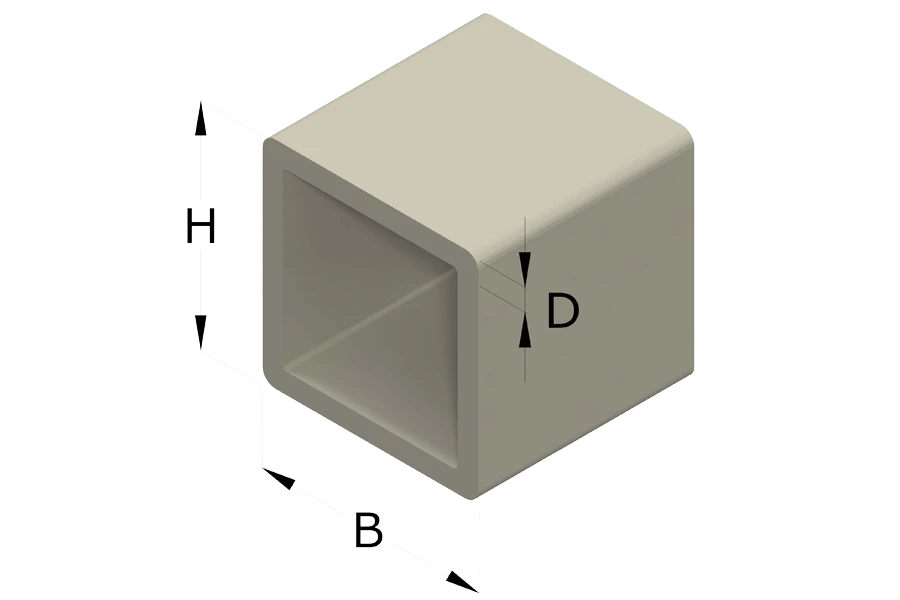

| Dimension [H/W x D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 50 x 5.0 mm | QR 50x50/5 EN13706-BGV-IFU E23 | 1.62 kg |
| 60 x 4.5 mm | QR 60x60/4.5 EN13706-BGV-IFU E23 | 1.88 kg |
Handrails

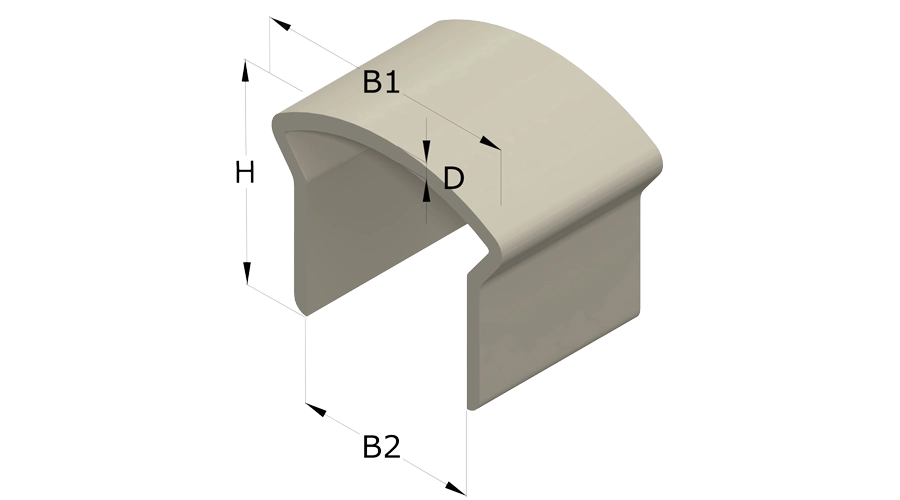

| Dimension [B1 X B2 X H X D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 70 x 50 x 54 x 4 mm | O 70x50/4 EN 13706-ZGV-IFU E23 | 1.14 kg |
| 80 x 60 x 54 x 4mm | O 80x60/4 EN 13706-ZGV-IFU E23 | 1.19 kg |
Knee strap (round tube)

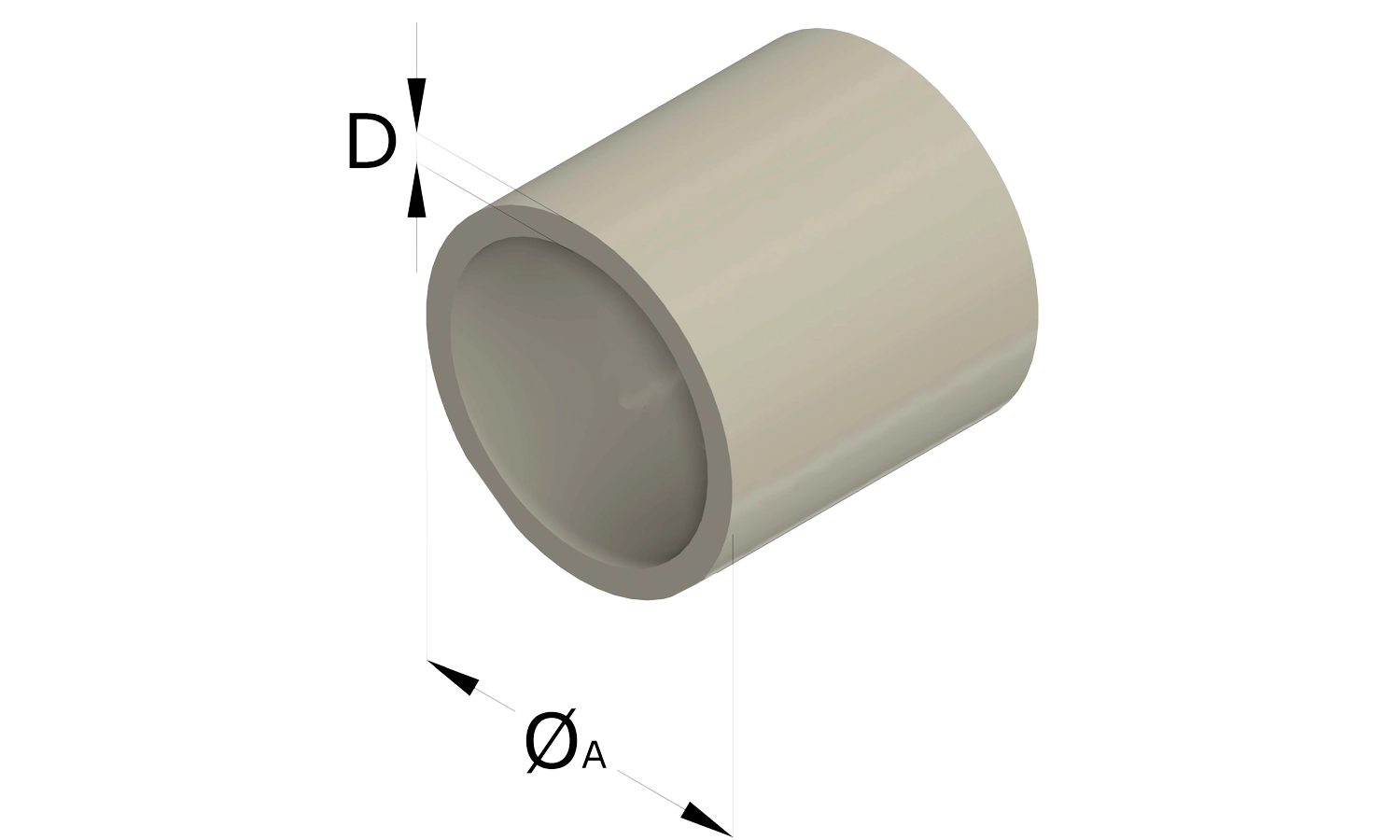

| Dimension [ØA x D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 30 x 2.8 mm | R30/2.8 EN 3706.OGV-IFU E17 | 0.48 kg |
| 40 x 4 mm | R40/4 EN13706-OGV-IFU E23 | 0.90 kg |
Baseboard
| Dimension | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 153x15x3.5 mm | Fl 153x15/3.5 EN13706-ZGV-IFU E17 | 1.24 kg |
Detailed views

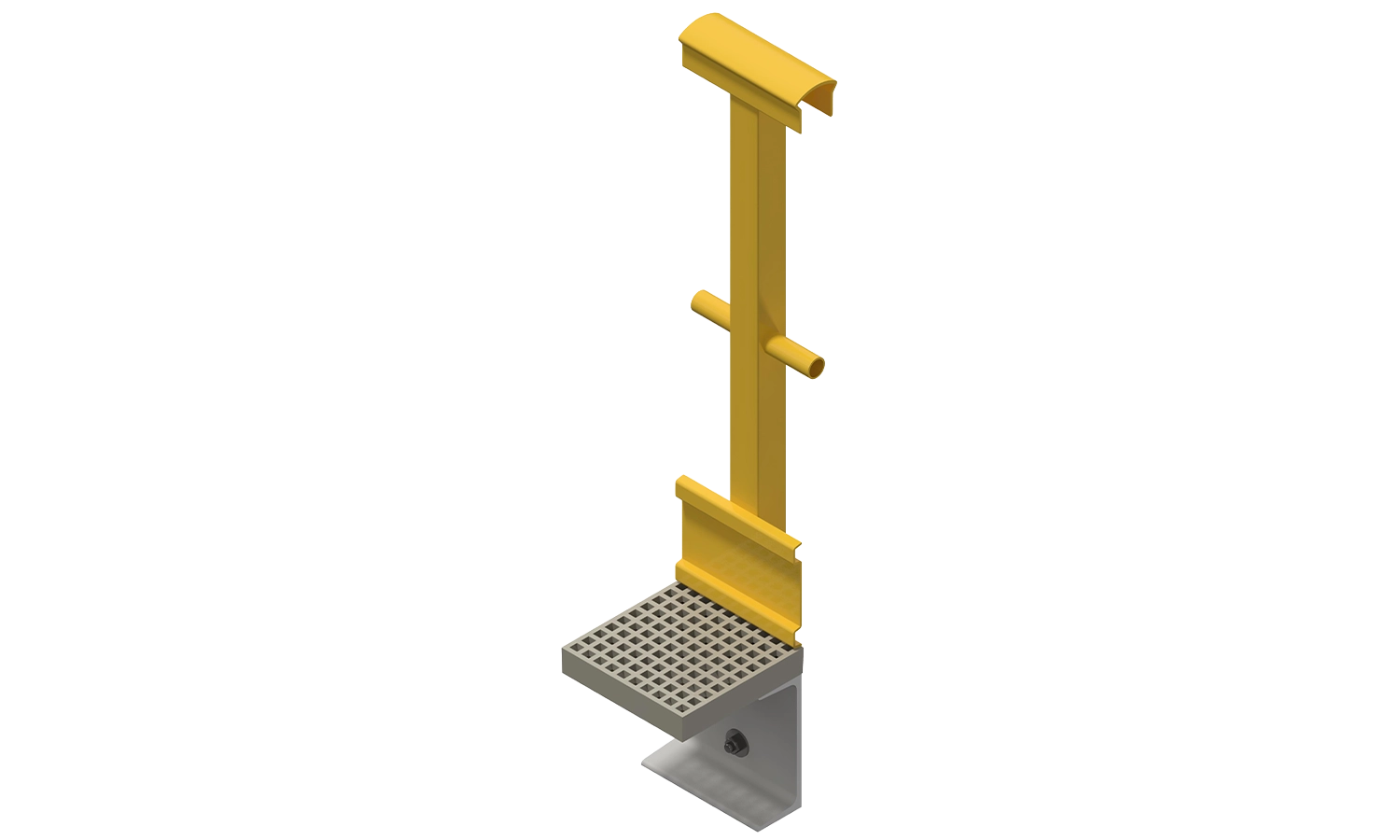

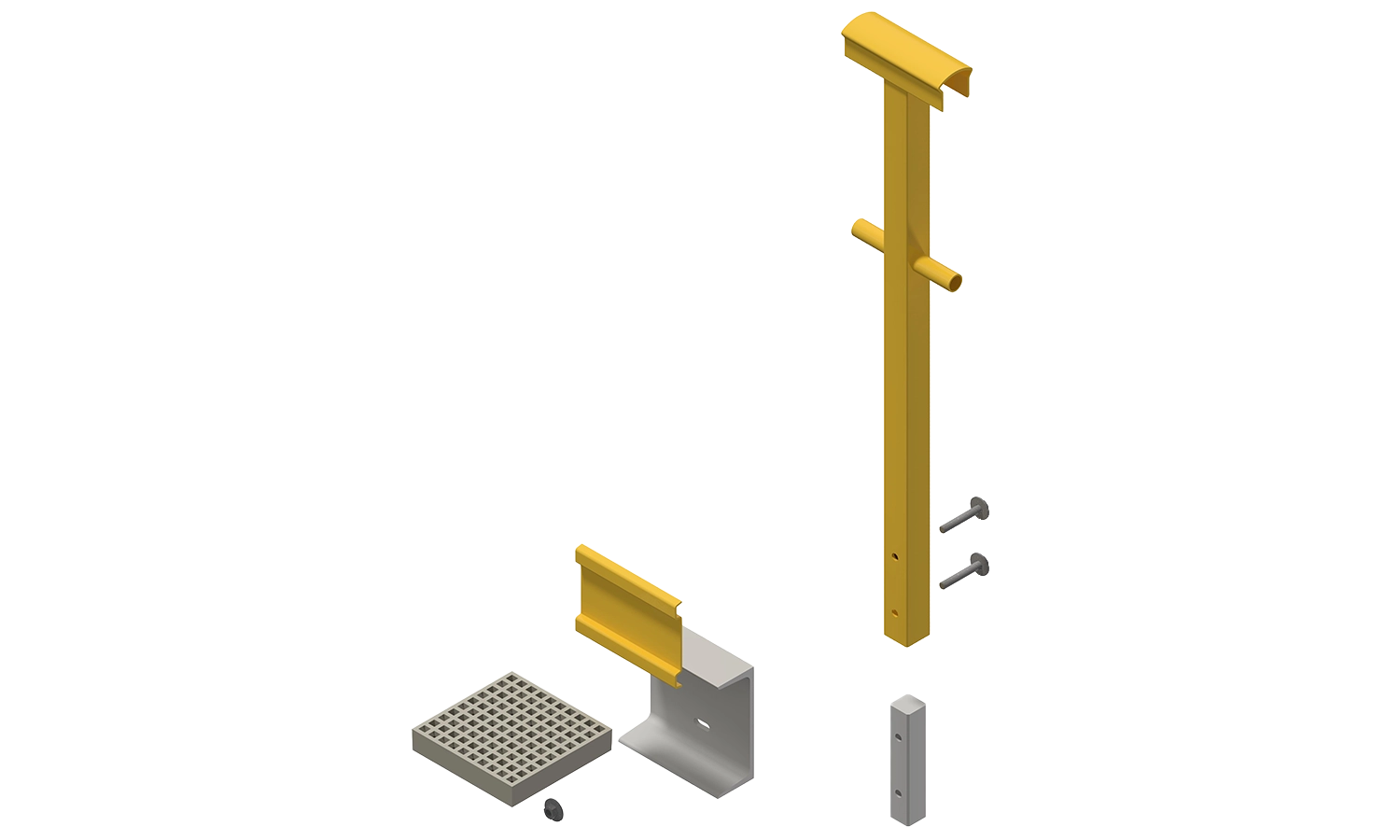

Railing connection straight at the side
Railing corner
Railing joint
Staircase

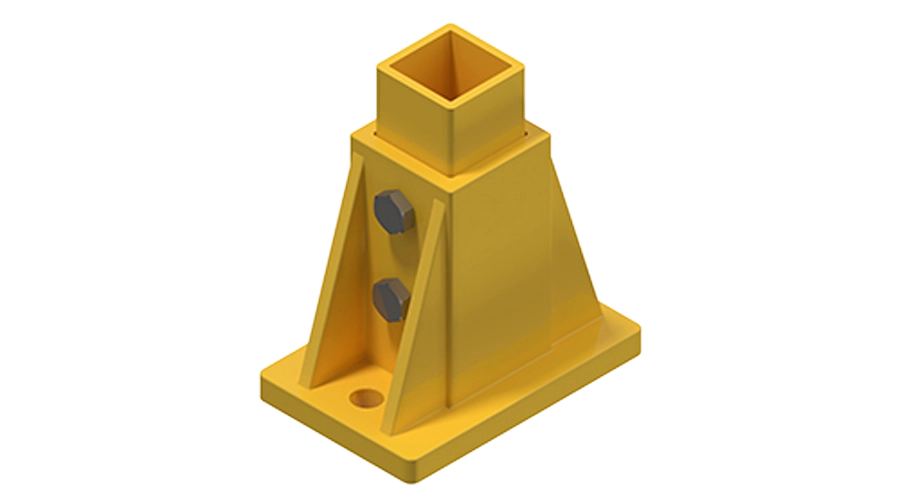

GRP post shoe
Steel post shoe
End caps
Handrail cap

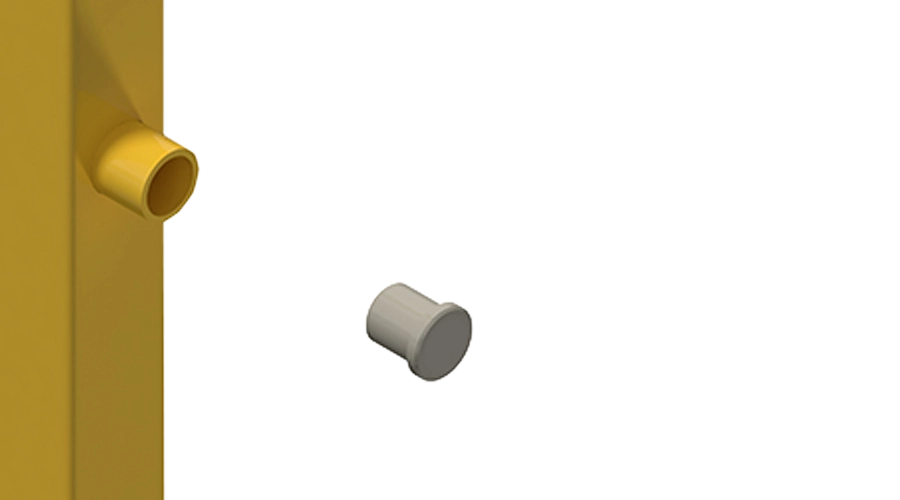

Knee cap
