Ladder rung profiles
MEISER ladder rung profiles feature a perforated and embossed surface that provides exceptional slip resistance, ensuring secure footing even in demanding industrial environments.
Your contact persons GratingsOur large selection of different ladder rung profiles guarantees the ideal solution for the way up for a wide range of applications.
Occupational safety and maximum slip resistance are the most important factors here. Our ladder rung profiles are supplied in an untreated finish. We are happy to offer you various special designs on request.
|

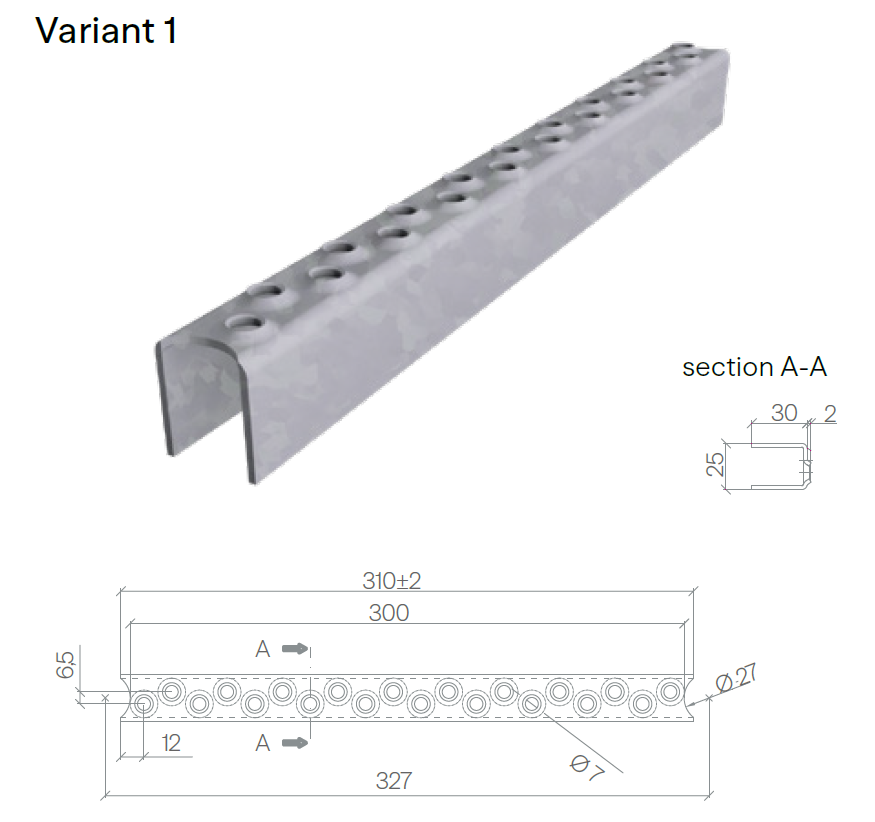

Variant 1 25 x 30 x 2
|

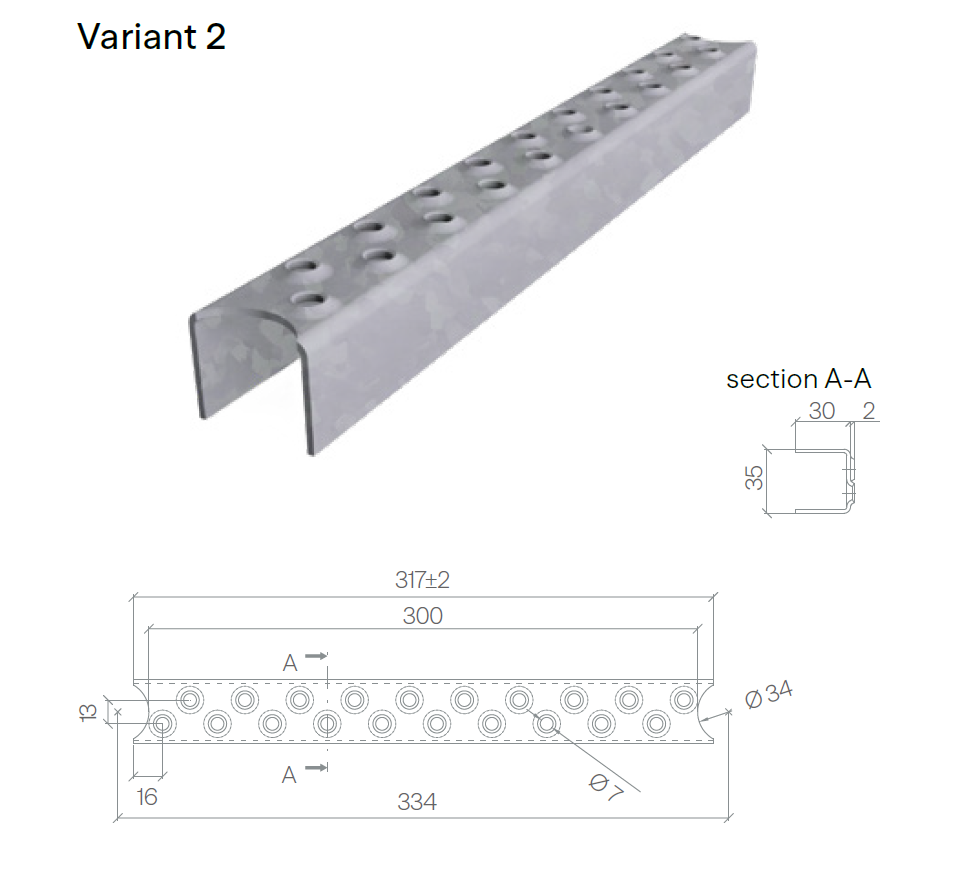

Variant 2 35 x 30 x 2
|

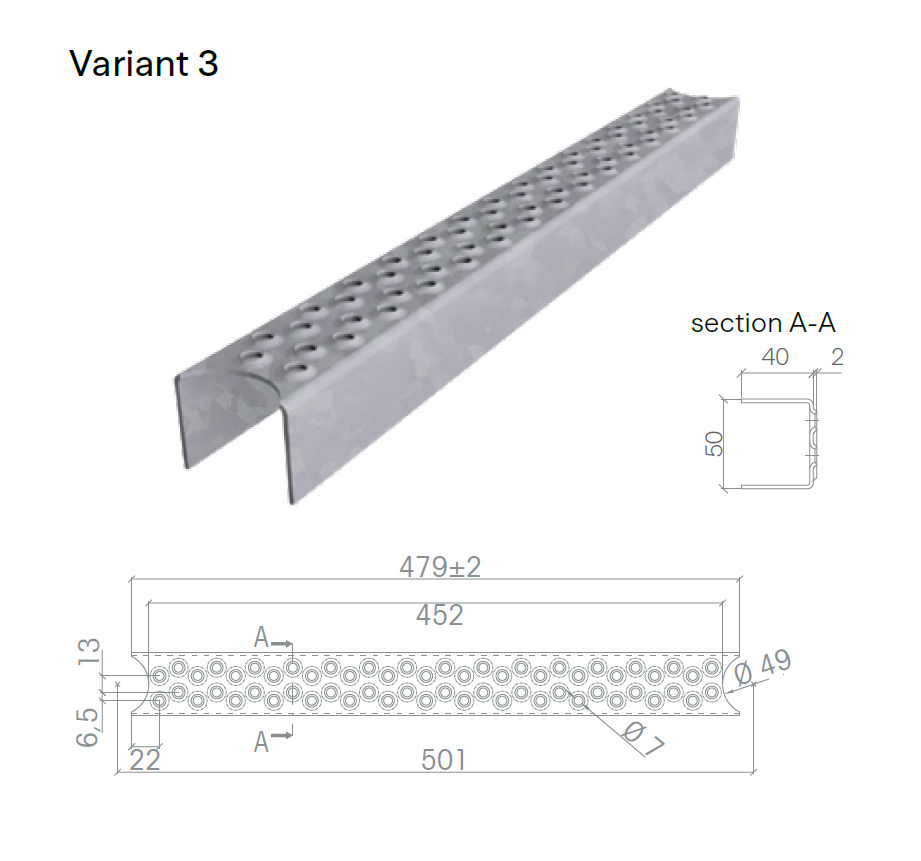

Variant 3 50 x 40 x 2
|
||||
|---|---|---|---|---|---|---|
|
Length in mm |
Weight in kg/pc. |
Length in mm |
Weight in kg/pc. |
Length in mm |
Weight in kg/pc. | |
|
Steel StW 22 | 327* | 0,40 | 334* | 0,47 | 501* | 0,96 |
| 2.000 | 2,42 | 2.000 | 2,79 | 2.000 | 3,83 | |
|
Stainless steel V2A | 327* | 0,40 | 334* | 0,47 | 501* | 0,97 |
| 2.000 | 2,43 | 2.000 | 2,81 | 2.000 | 3,86 | |
|
Aluminum AlMg3 | 327* | 0,14 | 334* | 0,16 | 501* | 0,33 |
| 2.000 | 0,83 | 2.000 | 0,96 | 2.000 | 1,32 | |
|
Stainless steel V4A 1.4404 | 2.000 | 2,40 | 2.000 | 2,81 | 2.000 | 3,86 |
| * = with notching | ||||||
