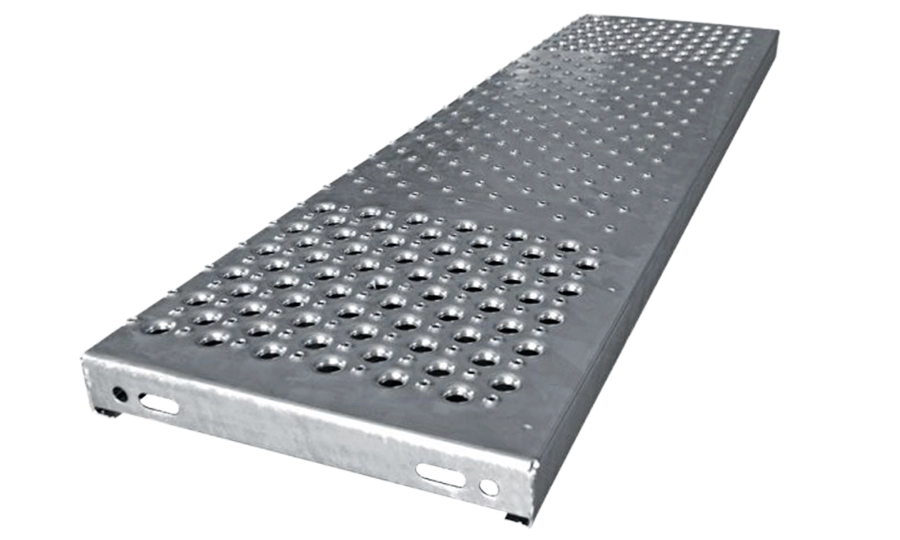

Mixed 3Z Step
The Mixed 3Z step combines Tolmixte perforations on the outer sections with Tolpicot perforations in the centre, providing excellent grip and a clearly structured tread surface.
Find a contact person GratingsDesigned for staircases with inclinations of 27° or greater and a 50 mm overlap, it meets ERP and APH requirements.
| Width (mm) | 900 | 1.000 | 1.200 | 1.400 |
| Depth (mm) | 330 | 330 | 330 | 330 |
| Height (mm) | 50 | 50 | 50 | 75 |
| Mass (kg/p) | 7,1 | 7,8 | 9,2 | 10,7 |
Technical Data
- Hot-dip galvanised steel (ISO 1461)
- Perforated fixing edge
- 12 mm bolted connection (fixings available on request)
