Louvre Gratings

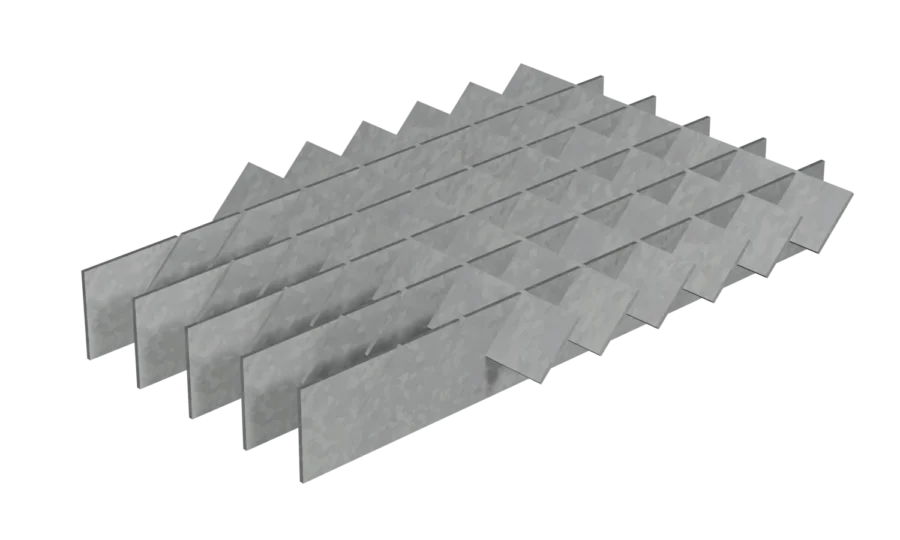

Where reduced visibility or controlled screening is required, louvre gratings provide an effective solution. Their applications extend far beyond walkways, bridges and transition areas.
Ihre AnsprechpartnerLouvre gratings are also widely used as sun-shading elements, façade cladding, ventilation screens and suspended ceiling systems. MEISER manufactures louvre gratings in steel, aluminium and stainless steel.
The louvre bars can be set at angles of 15°, 30° or 45°, allowing different levels of visibility and light transmission. The maximum installation depth is 100 mm. Please note that a 15° louvre angle is only technically feasible with a bearing bar thickness of 3 mm. Our technical specialists will be happy to advise you on the most suitable configuration.
Common mesh divisions
| Support rod | Filler rod | Filler rod | |
|---|---|---|---|
| 33,3 | 22,2 | 33,3 | 66,6 |
| 66,6 | 22,2 | 33,3 | 66,6 |
| 99,9 | 22,2 | 33,3 | 66,6 |
Standard bearing bar profiles
| Support rod 2 mm | Support rod 3 mm |
|---|---|
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
| 45/2 | 45/3 |
| 50/2 | 50/3 |
| - | 60/3 |
| - | 70/3 |
| - | 80/3 |
| - | 90/3 |
| - | 100/3 |
Matching accessories
Attachments for Louvre Gratings
Welded-in perforated plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
