Clamp B
Consisting of upper part of bracket, lower part of clamp, hexagonal bolts M8x60 and square nut M8.
Gratings
Full Gratings

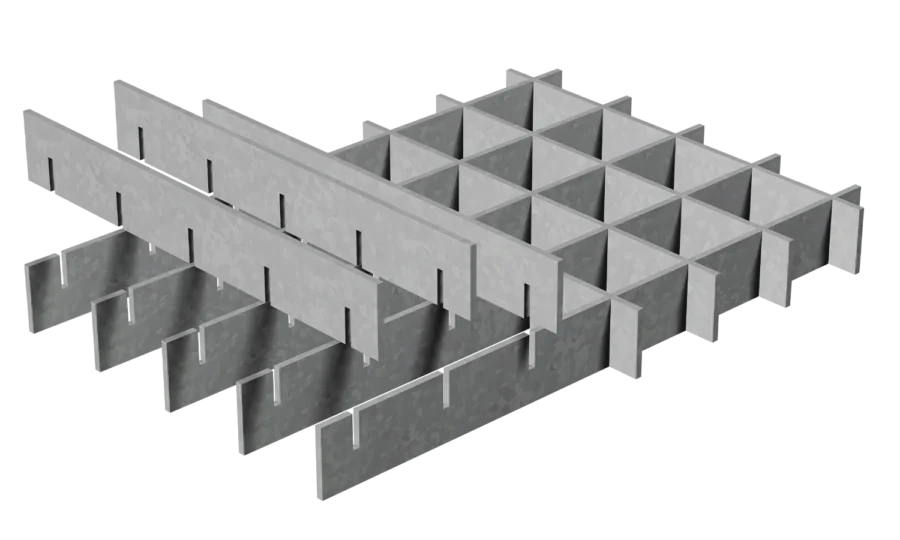

Full gratings are characterised by bearing bars and cross bars with identical cross-sections, resulting in a uniform grid with equal bar heights. The bearing bars span the support structure and remain unslotted on the underside.
Find a contact person GratingsCompared with conventional press-locked gratings, full gratings provide greater visual screening while offering a distinctive architectural appearance.
MEISER full gratings are available in a range of materials and can be manufactured with heights of up to 100 mm. For production reasons, one side of the grating must not exceed 1,800 mm. Mesh sizes, edging profiles and dimensions can be individually adapted to suit the required span and installation conditions.
Common mesh spacings for bearing bars from 2 to 3 mm
| Bearing bar | Cross bar | ||||||
|---|---|---|---|---|---|---|---|
| 22,2 | 16,65 | 22,2 | - | 44,4 | 66,6 | ||
| 33,3 | 16,65 | 22,2 | 33,3 | - | 66,6 | ||
| 44,4 | 16,65 | 22,2 | - | 44,4 | - | ||
| 66,6 | 16,65 | 22,2 | 33,3 | - | 66,6 | ||
Common mesh spacings for 5 mm bearing bars
| Bearing bar | Cross bar | |||
|---|---|---|---|---|
| 33,3 | 16,65 | 33,3 | 66,6 | 99,9 |
| 66,6 | 16,65 | 33,3 | 66,6 | - |
| 99,9 | 16,65 | 33,3 | - | 99,9 |
Standard bearing bar profiles
| Bearing bar 2 mm | Bearing bar 3 mm | Bearing bar 5 mm |
|---|---|---|
| 25/2 | 25/3 | - |
| 30/2 | 30/3 | 30/5 |
| 35/2 | 35/3 | 35/5 |
| 40/2 | 40/3 | 40/5 |
| 45/2 | 45/3 | 45/5 |
| 50/2 | 50/3 | 50/5 |
| - | 60/3 | 60/5 |
| - | 70/3 | 70/5 |
| - | 80/3 | - |
| - | 90/3 | - |
| - | 100/3 | - |
Matching accessories
Attachments for Full Gratings
Grating Heald bolt fastener
Consisting of bolt and plate.
Safety clamp A
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Safety clamp D
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
Welded-in holed fixing plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
