MEISER 1-Pile

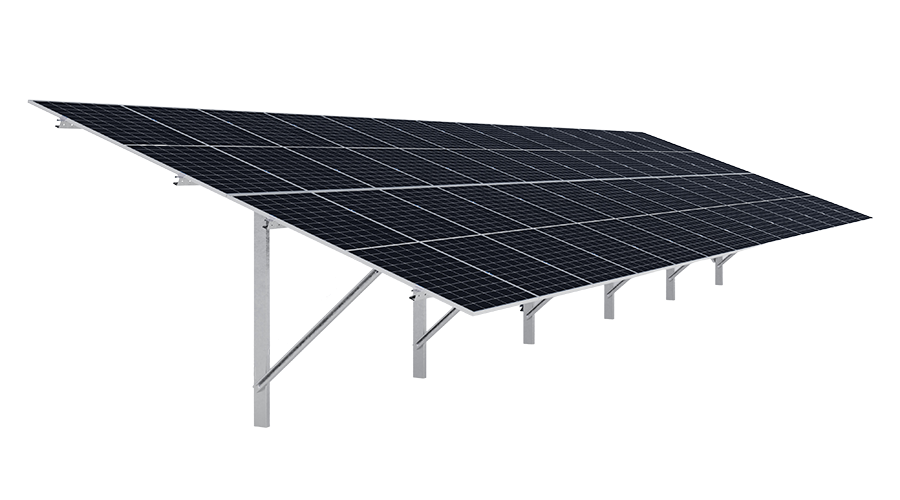

MEISER 1-Pile is a single-foot mounting system for ground-mounted photovoltaic systems with module orientation in portrait and landscape format.
Ihre AnsprechpartnerThe MEISER 1-Pile mounting system is designed for use in ground-mounted photovoltaic systems and enables different module orientations. The system is implemented in portrait format with a maximum of two modules. The modules are placed on top and then screwed or fixed in place using clamps.
The integrated cable routing enables safe and structured installation. In addition, interfaces for DC string routing, standardized inverter brackets and connection options for external lightning protection in accordance with DIN EN 62305 are available.
Pile-driven, concrete or screw foundations are available for the foundations. The system design is project-specific based on geological evaluation and static calculations.
The system consists of posts, longitudinal beams, clamping rails and struts. The components are available in various steel grades. For corrosion protection, batch galvanizing in accordance with DIN EN ISO 1461, strip galvanizing and Magnelis® coating are available. The system is designed for corrosion classes from C2 to C5.
Assembly is carried out using just three standard tools. Project-specific engineering, comprehensive documentation and technical support including site supervision are also offered.
- 2-4 module rows upright
- Various project-specific foundation solutions possible, including pile-driven and concrete foundations. Adaptation to ground screw foundations possible. Suitable for soil classes 1-3
- Table inclination 10°-30°, other inclinations on request
- Wind and snow loads are project-specific. Local rules and regulations are taken into account
- Ground clearance 400-1000mm, project-specific approval possible
- Suitable for all commercially available module types
- Module screw connection: threaded terminals screwed from below and direct screw connection
- Rammed foundations steel, hot-dip galvanized to DIN EN ISO 1461, also strip galvanized on customer request ZM430-ZM800
- Profiles without ground contact Strip galvanized ZM310 DIN EN 10346
- Static calculation of the individual tables based on regional data. Delivery of the complete assembly material.
- Up to 40 years product warranty. Individual warranty agreements available.
| System type | Single-foot mounting system |
| Module orientation | Portrait or Landscape |
| Number of modules on top of each other | 2-4 modules |
| Tilt angle | 10°-30° |
| Slope of the terrain | 0°-18° OW / 0°-16° NS |
| Foundation variants | Rammed foundation, concrete foundation, root profile, screw foundation |
| Soil classes | I-IV |
| Cable routing | integrated |
