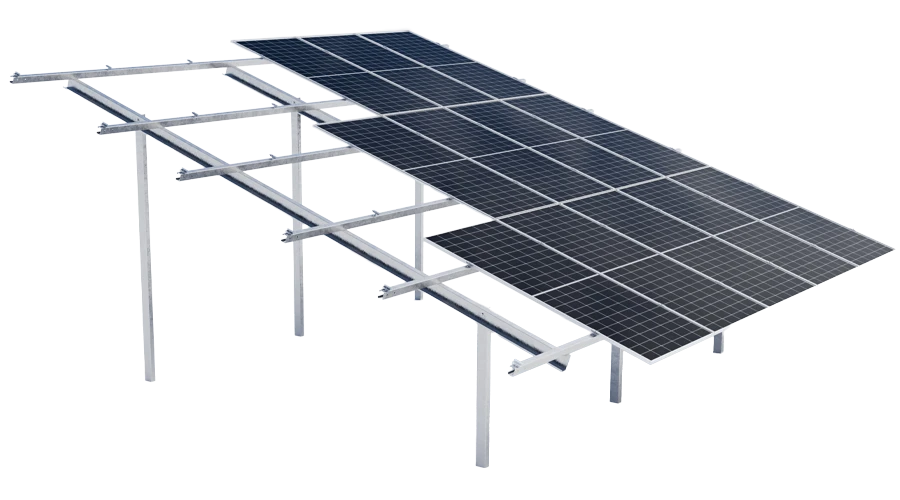

MEISER Portrait is a two-foot mounting system for ground-mounted photovoltaic systems in portrait format with up to four rows of modules.
Ihre AnsprechpartnerMEISER Portrait is a two-foot mounting system for ground-mounted photovoltaic systems in portrait format with up to four rows of modules. The modules are laid on top and fixed in place using clamps or direct bolting.
The system has integrated cable routing for safe and structured installation. It offers mounting and protection options for DC strings as well as standardized inverter brackets. Connection points for external lightning protection in accordance with DIN EN 62305 are available.
Pile-driven, concrete or screw foundations are available for the foundations. The system design is project-specific based on geological evaluation and static calculations.
The system consists of posts, cross beams or girders and clamping rails. The components are available in various steel grades. For corrosion protection, batch galvanizing in accordance with DIN EN ISO 1461, strip galvanizing and Magnelis® coating are available. The system is designed for atmospheric corrosion classes from C2 to C5.
Assembly is carried out using three standard tools. Project-specific engineering, static calculations and technical support during implementation are also offered.
- 2-4 module rows upright
- Various project-specific foundation solutions possible, including pile-driven and concrete foundations. Adaptation to ground screw foundations possible. Suitable for soil classes 1-3
- Table inclination 10°-30°, other inclinations on request
- Wind and snow loads are project-specific. Local rules and regulations are taken into account
- Ground clearance 400-1000mm, project-specific approval possible
- Suitable for all commercially available module types
- Module screw connection: threaded terminals screwed from below and direct screw connection
- Rammed foundations steel, hot-dip galvanized to DIN EN ISO 1461, also strip galvanized on customer request ZM430-ZM800
- Profiles without ground contact Strip galvanized ZM310 DIN EN 10346
- Static calculation of the individual tables based on regional data. Delivery of the complete assembly material.
- Up to 40 years product warranty. Individual warranty agreements available.
| System type | Two-foot mounting system |
| Module orientation | Portrait |
| Number of modules on top of each other | 2-4 modules |
| Tilt angle | 10°-30° |
| Slope of the terrain | 0°-18° OW / 0°-16° NS |
| Foundation variants | Rammed foundation, concrete foundation, root profile, screw foundation |
| Soil classes | I-IV |
| Cable routing | integrated |
