MEISER Landscape

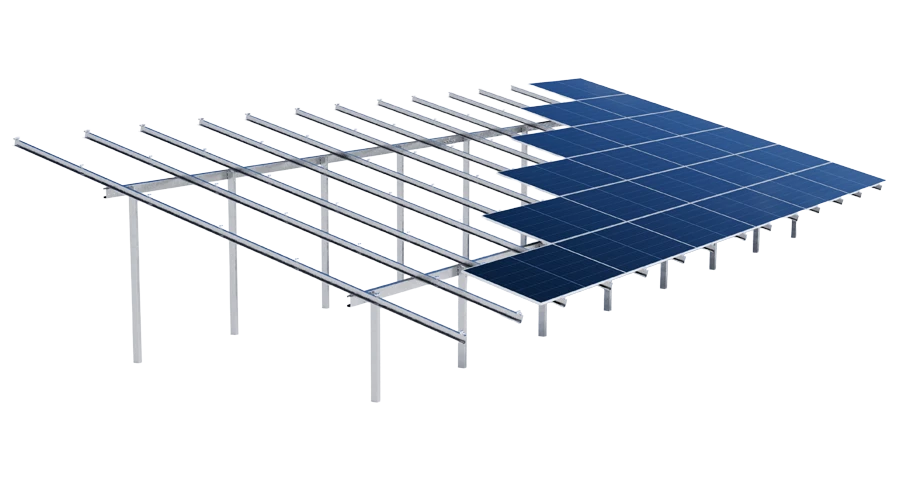

MEISER Landscape is a two-foot mounting system for ground-mounted photovoltaic systems in landscape format with up to six rows of modules.
Ihre AnsprechpartnerMEISER Landscape is a two-foot mounting system for ground-mounted systems in landscape format and enables the arrangement of four to six rows of modules. The modules are laid on top, screwed or fixed in place using clamps.
The integrated cable routing enables safe and structured installation. In addition, interfaces for cable management, DC string routing, standardized inverter brackets and connection options for external lightning protection in accordance with DIN EN 62305 are available.
Pile-driven, concrete or screw foundations are available for the foundations. The system design is project-specific based on geological evaluation and static calculations.
The system consists of posts, longitudinal beams and clamping rails. The components are available in various steel grades. For corrosion protection, batch galvanizing in accordance with DIN EN ISO 1461, strip galvanizing and Magnelis® coating are available. The system is designed for corrosion classes from C2 to C5.
Assembly is carried out using just three standard tools. Project-specific engineering and comprehensive documentation, including static calculations, CAD data and assembly documents, are also offered.
- 4-6 horizontal module rows
- Various project-specific foundation solutions possible, including pile-driven and concrete foundations. Adaptation to ground screw foundations possible. Suitable for soil classes 1-3
- Table inclination 10°-30°, other inclinations on request
- Wind and snow loads are project-specific. Local regulations and provisions are taken into account
- Ground clearance 400-1000mm, project-specific approval possible
- Suitable for all commercially available modules
- Module screw connection: threaded terminals screwed from below and direct screw connection
- Rammed foundations steel, hot-dip galvanized to DIN EN ISO 1461, also strip galvanized on customer request ZM430-ZM800
- Profiles without ground contact: Strip galvanized ZM310 DIN EN 10346
- Static calculation of the individual tables based on regional data. Delivery of the complete assembly material.
- Up to 40 years product warranty. Individual warranty agreements available.
| System type | Two-foot mounting system |
| Module orientation | Landscape |
| Number of modules on top of each other | 4-6 modules |
| Tilt angle | 10°-25° |
| Slope of the terrain | 0°-18° OW / 0°-16° NS |
| Foundation variants | Rammed foundation, concrete foundation, root profile, screw foundation |
| Board classes | I-IV |
| Cable routing | integrated |
