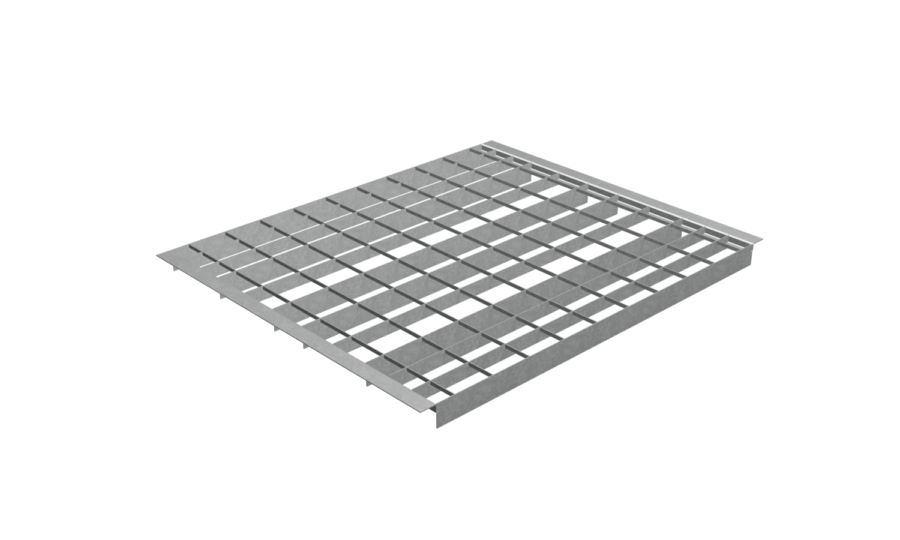

MEISER Module
Strong. Lightweight. Reliable. Conventional shelf gratings are typically manufactured with bearing bars of uniform height. In practice, however, many storage systems use standardised load carriers that only apply loads to specific bearing bars.
Your contact persons GratingsThe MEISER Module has been developed specifically for these defined loading conditions. By combining higher bearing bars in heavily loaded areas with lower bearing bars in less stressed sections, a highly efficient and lightweight shelving solution is achieved.
Because the load cases and permissible loads are clearly defined, each module is optimised for the storage of Euro pallets and half-Euro pallets, whether placed lengthwise or crosswise, as well as for evenly distributed loads.
MEISER manufactures two grating types across several load categories, enabling customers to select the most suitable solution for their application. Both designs feature a 40 mm horizontal Z-profile flange.
| Load (kg/grate) | Clear compartment depth (mm) | Grille width (mm) | Grille height (mm) | Material thickness (mm) | Mesh spacing (mm) Bearing bar | Mesh spacing (mm) Cross bar |
|---|---|---|---|---|---|---|
| 1.000 | 1.000 (995) | 890 | 60 | 1,5 | 66 (99) | 66 |
| 800 | 1.000 (995) | 890 | 55 | 1,5 | 66 (99) | 99 |

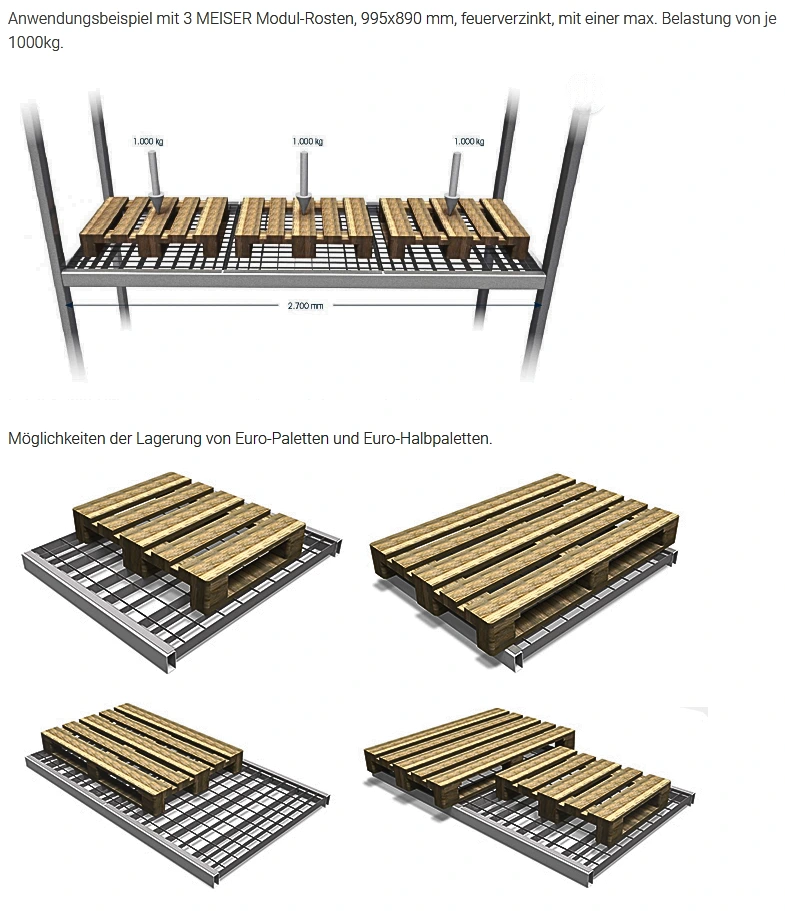

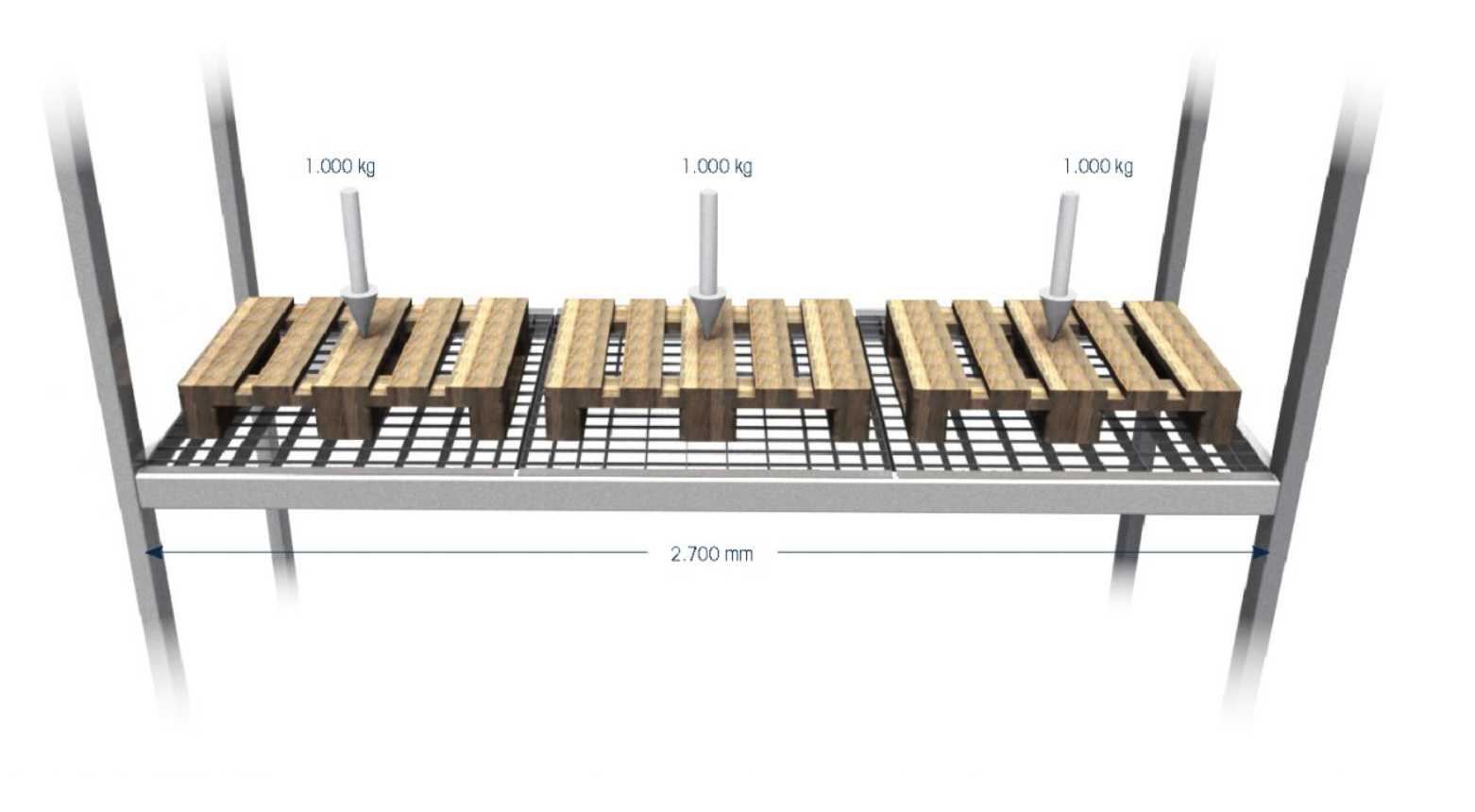

Application example of 3 MEISER Modul gratings, 995x890mm, hot dip galvanized, with a max. payload of 1.000 kg each.

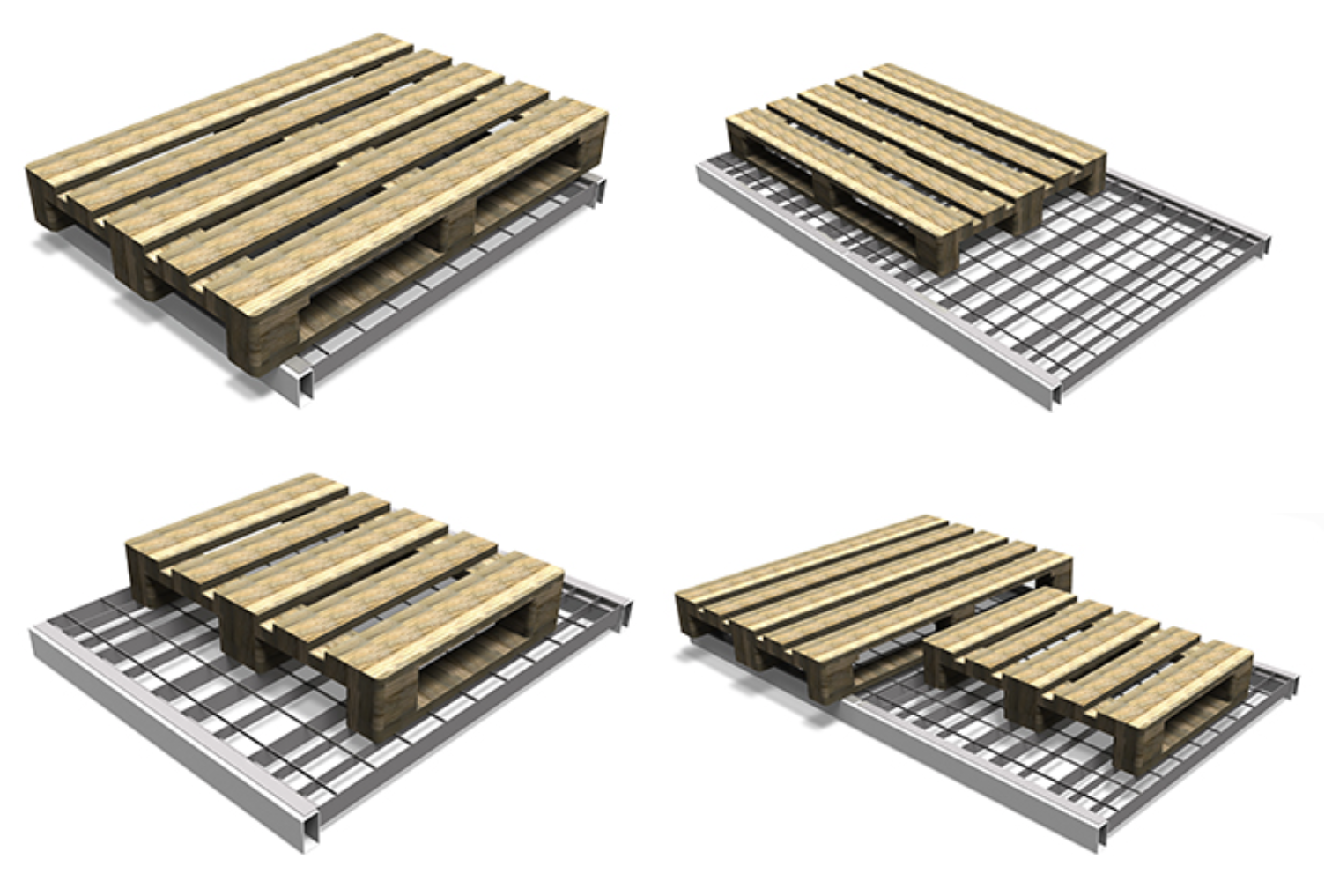

Possibilities to store euro pallets and half euro pallets:
Advantages of the MEISER Module
– Integrated Z-profile for recessed installation with a maximum installation height of just 2 mm
– Simple selection of the appropriate load category
– Standard dimensions for the most common shelving systems [e.g. 1,800 mm (2 piece), 2,700 mm (3 piece) and 3,600 mm (4 piece)]
– Fast availability from stock (small quantities within 48 hours; larger quantities on request)
– Suitable for sprinkler-protected warehouses thanks to an open area exceeding 90%
– Low deflection under load (less than L/200), meeting the requirements of DIN EN 15635
– Lightweight design for easier handling
– Cost-efficient solution
– Straightforward calculation of maximum shelf loads
