Sheet metal profile gratings

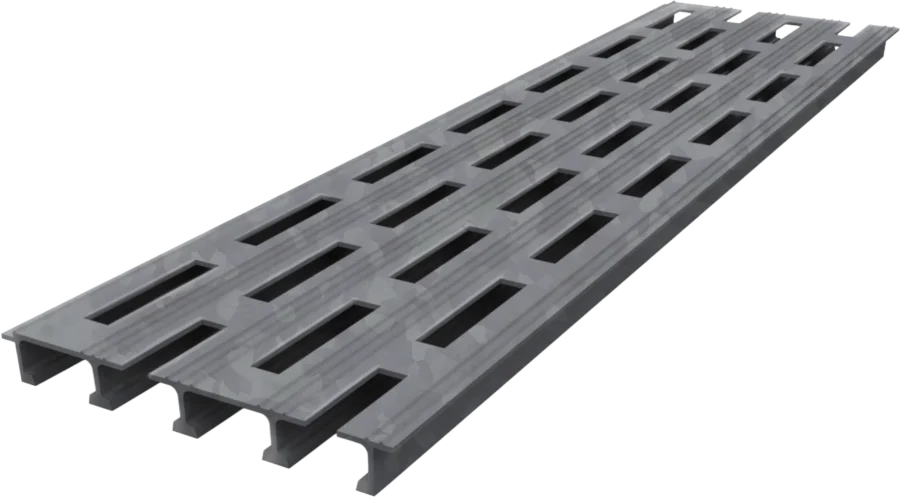

Nervopal with perforations
Nervopal is a functional flooring and walkway system that combines safety and stability with an open, practical surface. The perforations facilitate the drainage of liquids and help ensure a low-slip walking surface.
Ihre AnsprechpartnerNervopal with perforations is used as a floor covering and walkway on tankers, in refrigerated trailers and trucks and as a mobile platform for public vehicles.
The system is also suitable for demanding installations in coastal areas, on jetties, in refineries and in the food and sulphur industries.
* Produced in France.
| Type | Smooth | With perforation |
|---|---|---|
| 1 h = 20 mm | 11 kg/m2 | 10 kg/m2 |
| 2 h = 25 mm | 16 kg/m2 | 15 kg/m2 |
- Material: profiled aluminum AlMg3 (6060 F22)
- Properties: low dead weight with high load capacity
- Construction heights:

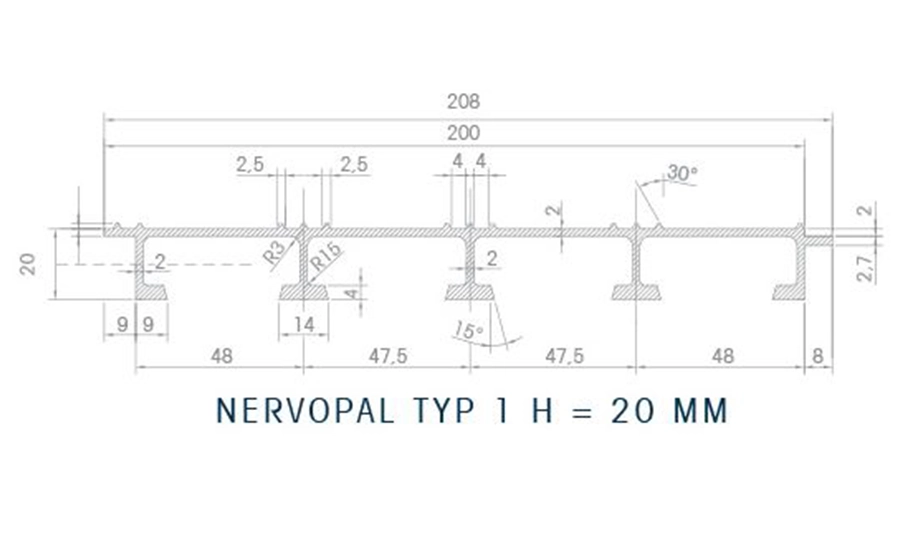

- Type 1: 20 mm

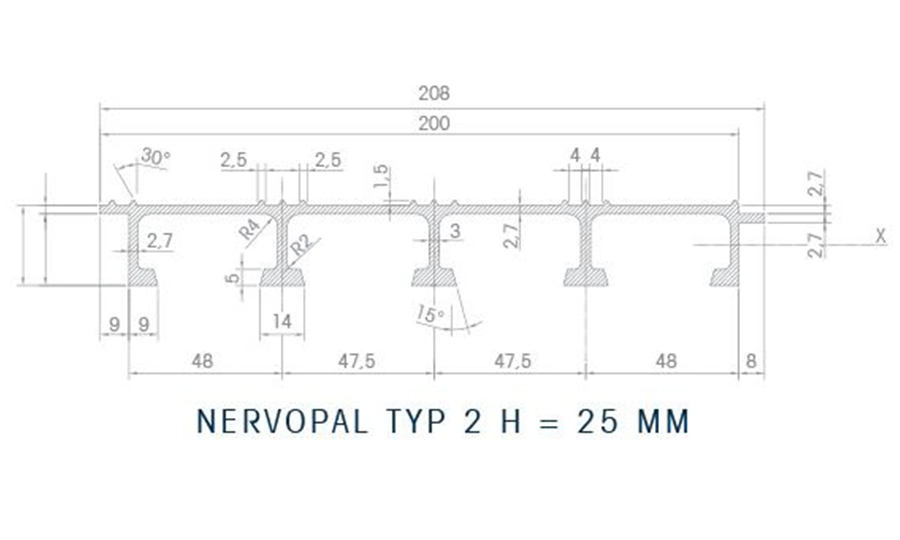

- Type 2: 25 mm
- Perforation: 80 × 15 mm
- Bar width: 110 mm
- Lengths:
- Standard length 4,000 mm
- Customization possible
- Load capacity: designed for surface loads
