Sheet metal profile gratings

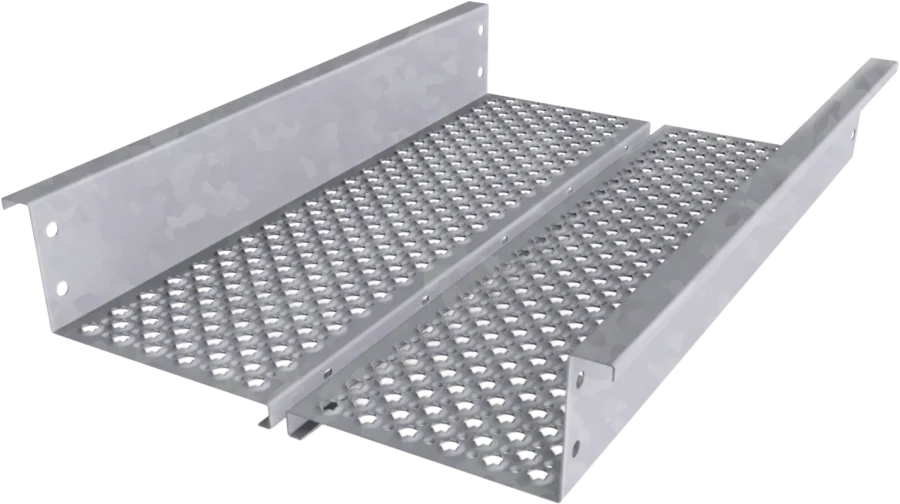

Passcran
The Passcran walkway is a safe and robust solution for industrial walkways in demanding applications. Thanks to its sophisticated design, it offers a high level of safety and comfort combined with easy handling.
Ihre AnsprechpartnerThe Passcran catwalk is used in the chemical and petrochemical industries as well as in the iron and steel industry as a catwalk in technical galleries.
It is also widely used in mining and quarries, for example on conveyor belts, and generally in industrial plants and ports on cranes and overhead cranes. The anti-slip surface and reliable drainage of liquids increase safety in daily operations.
- Material: hot-dip galvanized steel
- Standard: EN ISO 14122 “Safety of machinery – Permanent means of access to machinery”
- Features: integrated baseboard
- Assembly: quick installation
- Total width:
- 600 mm → Weight approx. 16 kg/lfdm
- 700 mm → Weight approx. 18.5 kg/running meter
- Maximum span: up to 2,500 mm
- Permissible surface load: 250-350 kg/m²
Matching accessories
Attachments for Passcran
BPR quick fastening
Clamp connection with countersunk head screw M8.
BPR flange
Clamp connection with cage nut and countersunk head screw M8.
