Gratings

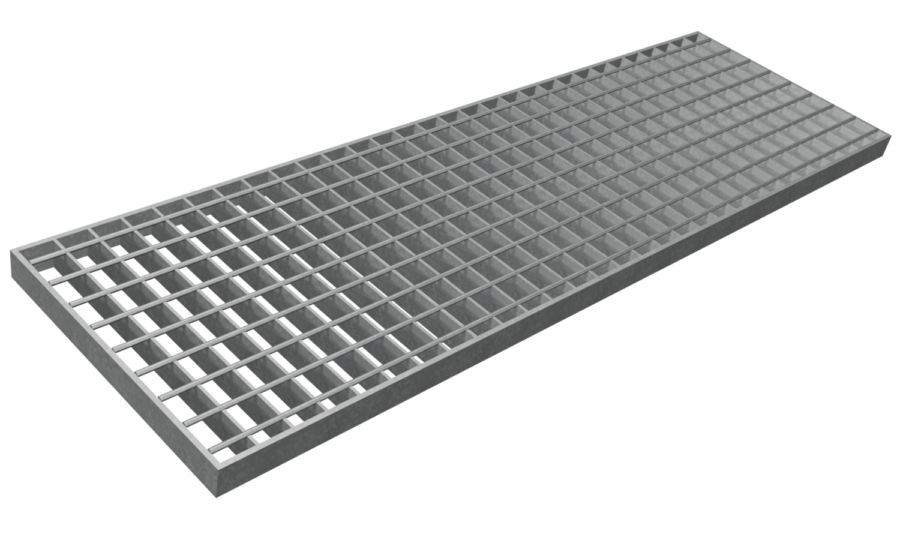

Press-Welded Gratings with Smooth Round Bars
While standard press-welded gratings are manufactured with twisted square cross bars to provide enhanced slip resistance, smooth round bars can be used where architectural appearance takes priority.
Find a contact person GratingsAvailable for all standard mesh sizes, this version offers a cleaner, more refined appearance and is therefore particularly well suited to visible architectural applications.
The proven strength of the press-welded construction remains unchanged, as every intersection is permanently resistance-welded. Materials, surface finishes, edging profiles and dimensions can all be customised to meet the structural and aesthetic requirements of each project.
Common mesh divisions
| Bearing bar | Cross bar | ||||||
|---|---|---|---|---|---|---|---|
| 15,08 | - | - | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 17,15 | - | - | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 20,77 | - | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 23,69 | - | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 25,00 | - | - | - | - | - | 76,2 | 101,6 |
| 30,15 | - | - | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 34,30 | 19,25 | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 41,45 | - | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 45,23 | - | - | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 51,45 | - | - | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 60,30 | - | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
| 68,60 | - | 24,0 | - | 38,1 | 50,8 | 76,2 | 101,6 |
Standard bearing bar profiles
| Bearing bar 2 mm | Bearing bar 3 mm | Bearing bar 4 mm | Bearing bar 5 mm |
|---|---|---|---|
| 25/2 | 25/3 | 25/4 | 25/5 |
| 30/2 | 30/3 | 30/4 | 30/5 |
| 35/2 | 35/3 | 35/4 | 35/5 |
| 40/2 | 40/3 | 40/4 | 40/5 |
| 45/2 | 45/3 | 45/4 | 45/5 |
| - | 50/3 | 50/4 | 50/5 |
| - | 60/3 | 60/4 | 60/5 |
| - | 70/3 | 70/4 | 70/5 |
| - | - | 80/4 | 80/5 |
Matching accessories
Attachments for Press-Welded Gratings with Smooth Round Bars
Double clamp B
Consists of 2 upper bracket parts, lower clamp part, 2 hexagon bolts and 2 square nuts.
Welded-in holed fixing plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
Grating Heald bolt fastener
Consisting of bolt and plate.
Grating butt joint
Consisting of upper part and lower part with thread and hexagon socket screw.
Clamp B
Consisting of upper part of bracket, lower part of clamp, hexagonal bolts M8x60 and square nut M8.
Clamp B 10
Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.
Clamp S
Consists of flat-head screw, clamp base and square nut.
Safety clamp D
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
