Double hook
The practical wire shelf for the winter

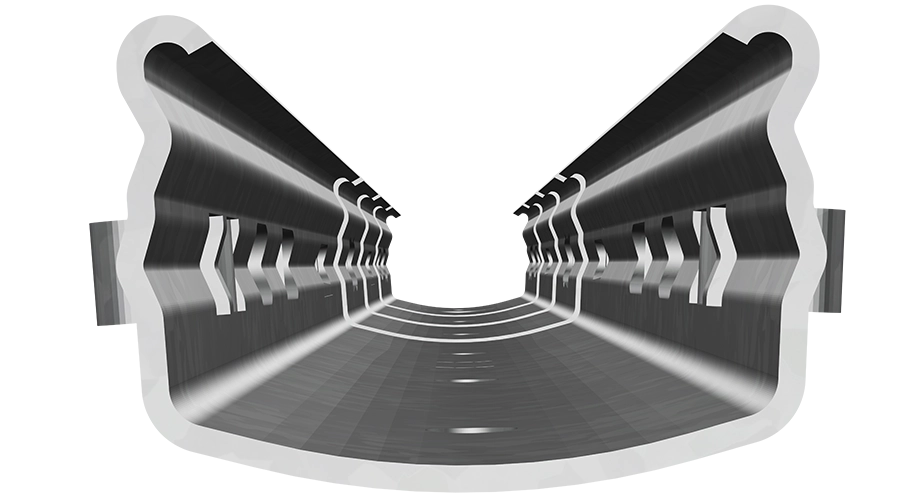

The P4 post is suitable for trellis systems up to a height of 1.60 m. The standard version is equipped with waisted S-hooks and can optionally be used as a Combi post, which allows additional flexibility in wire guidance.
| Dimensions (closed x open side) | 31x43 | ||||||
| Material thickness | 1.50 mm/1.80 mm 1.65 mm/1.95 mm | ||||||
| Installation depth | up to 1.80 meters minimum 50 cm, from 2.0 meters 1/3 of the pile length | ||||||
| Standard pole lengths | 140-230 | ||||||
| Available metals/finishes/steel grades | Piece galvanized (S235JR HDG), strip galvanized (S250GD+Z275), zinc magnesium (S250GD+ZM310), weatherproof steel (S235JOW C-Type) | ||||||
| Standard height of the system | 1.00 - 1.40 meters above the ground |
Available hooks
Fits perfectly with Profile P4
S-Hook 8 mm
The sophisticated solution for securely fastening irrigation hoses.
Combination hook
Our sophisticated inner hook principle
S-Hook, 10 mm, short
Safe, flexible, efficient - the S-hook for every application in viticulture.
R-hook
With the R-hook, we are presenting a proven and at the same time further developed solution that noticeably simplifies and optimizes both mechanical and manual work processes.
S-hook, 10 mm long
The S-hook enables fast, secure and flexible fastening of wires in viticulture.
