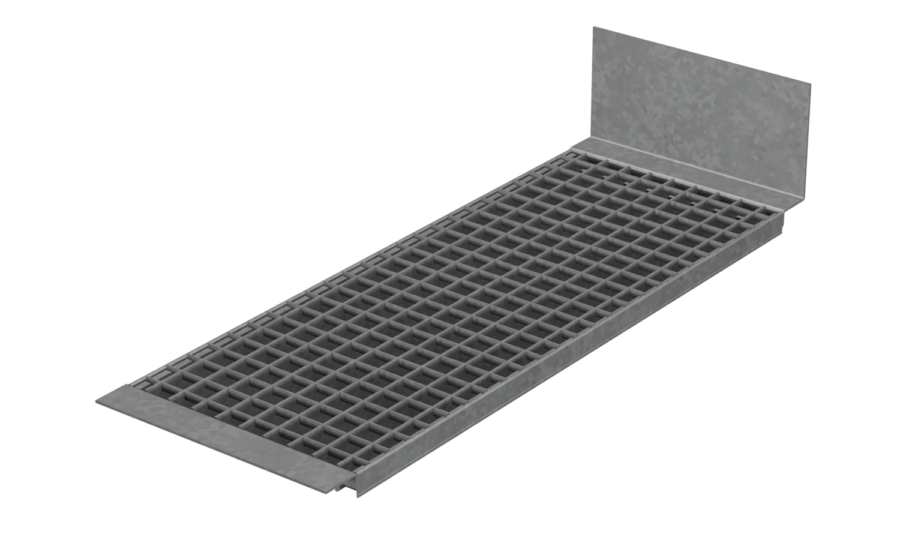

Inserted Shelf Gratings with Z-Profile and Push-Through Protection

This version combines the proven Z-profile design with integrated push-through protection. An additional flange on the profile prevents stored goods from sliding through the rear of the shelving system, providing enhanced operational safety.

Find a contact person

Matching accessories

Attachments for Inserted Shelf Gratings with Z-Profile and Push-Through Protection

Inspiration & Projekte: Clamp B

Clamp B

Consisting of upper part of bracket, lower part of clamp, hexagonal bolts M8x60 and square nut M8.

Inspiration & Projekte: Hilti clamp – XMGR

Hilti clamp – XMGR

High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.

Inspiration & Projekte: Hook fastening

Hook fastening

Consisting of upper part of bracket or plate, hook made of bent round steel with welded-on sleeve nut and M8 hexagon bolt.
