Spiral staircase treads
MEISER Spiral staircase treads are available with a wide range of surface profiles, offering extensive functional and design possibilities for virtually every application.
Find a contact person GratingsThey are supplied in an unfinished version for on-site welding to a central support tube.

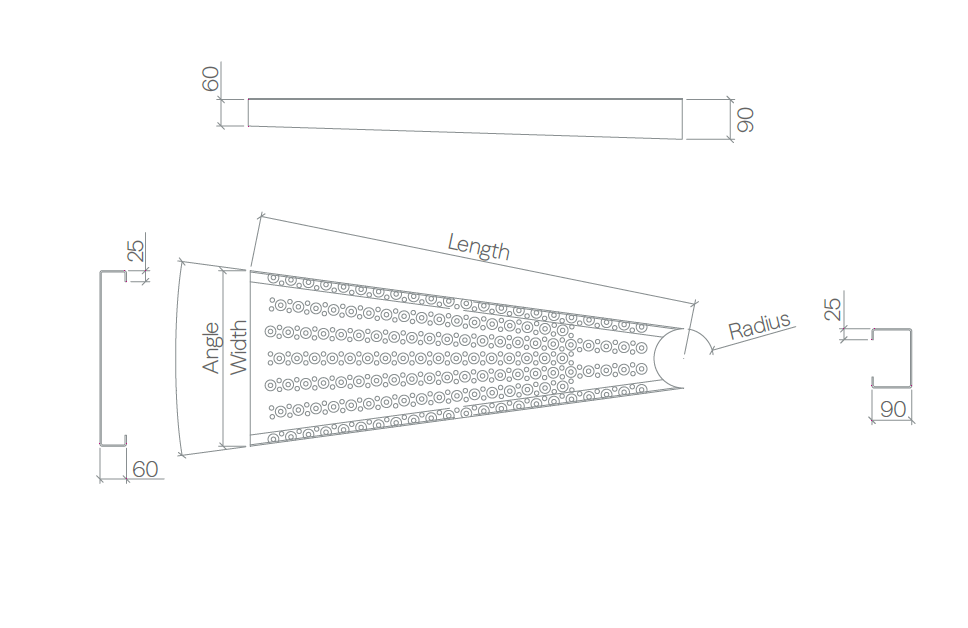

Dimensions MEISER bearing spiral staircase treads, can be used in right and left coiled versions.
Raw steel
| Length (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg) | Radius (mm) | Angle |
|---|---|---|---|---|---|---|
| 800 | 368 | 90/60 | 3,00 | 5,80 | 57 | 18,5° |
| 900 | 386 | 90/60 | 3,00 | 6,90 | 67 | 16,4° |
| 1.000 | 403 | 90/60 | 3,00 | 7,80 | 67 | 15,7° |
| 1.200 | 411 | 90/60 | 3,00 | 9,70 | 84 | 11,7° |
