Sheet metal profile gratings

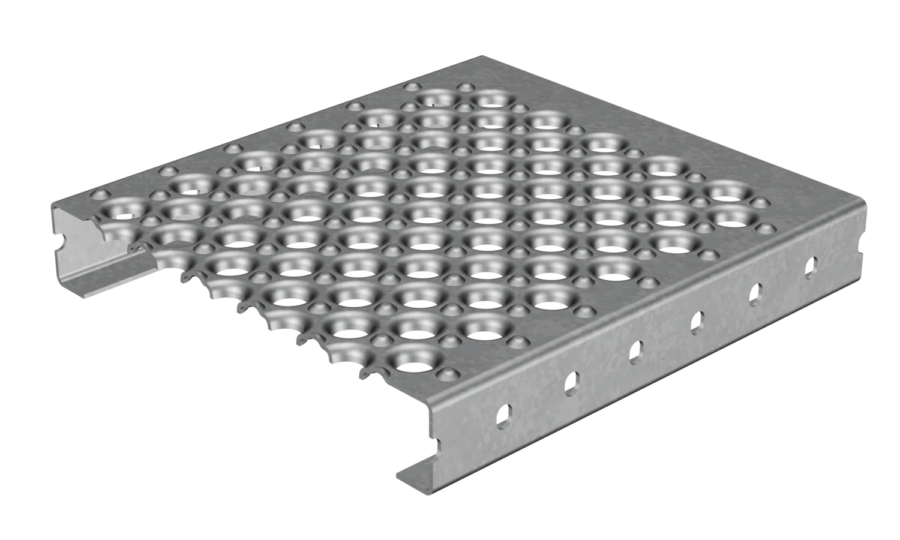

Stepclair 01
Stepclair O1 has a good drainage effect and good air permeability thanks to its large downward perforations.
Ihre AnsprechpartnerThe upward-facing embossing has no sharp edges, but is sufficiently slip-resistant.
Stepclair O1 is suitable for industrial applications as a service platform, walkway or as a step and landing in staircase construction.
Special sizes or special material on request. Available dimensions according to stock program.

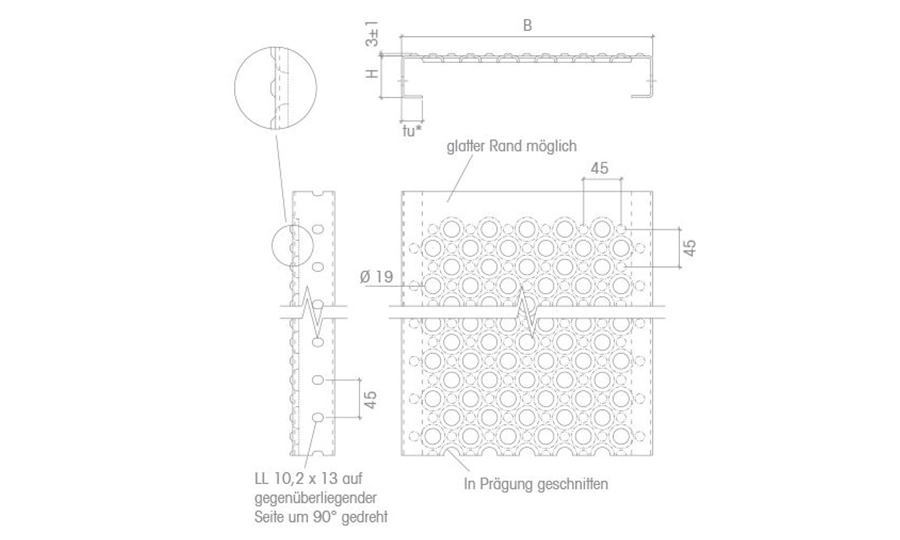

All dimensions in mm.
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 182 / 240 / 298 / 330 / 356 variable | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 45 |
Matching accessories
Attachments for Stepclair 01
BPR cast metal washer with countersunk hole
Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.
BPR quick fastening
Clamp connection with countersunk head screw M8.
BPR flange
Clamp connection with cage nut and countersunk head screw M8.
