Sheet metal profile gratings

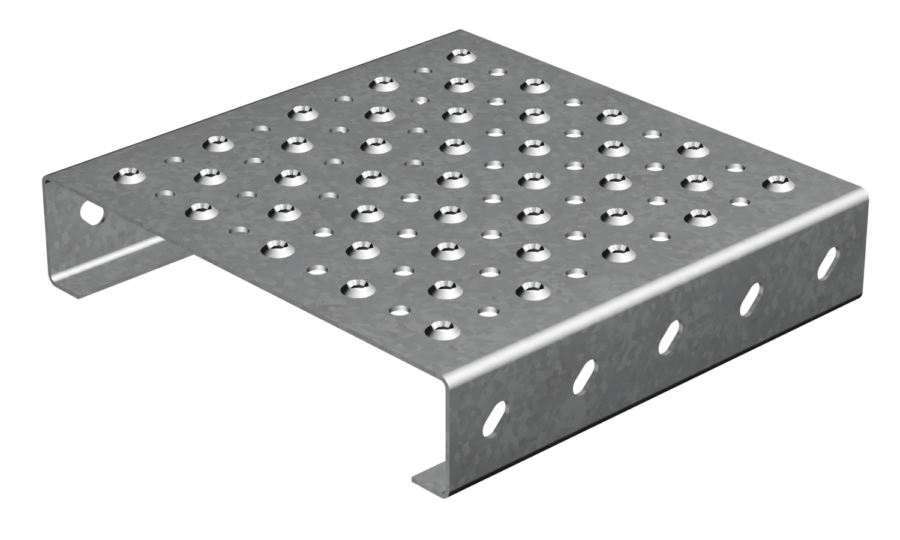

Toldeco 8
Toldeco 8 has small, upwardly pronounced holes that give the grating sufficient slip resistance thanks to additional serration.
Ihre AnsprechpartnerThe additional 8 mm perforation ensures that liquids can drain away. This means that the Toldeco 8 can be used both indoors and outdoors for staircases, landings and walkways.

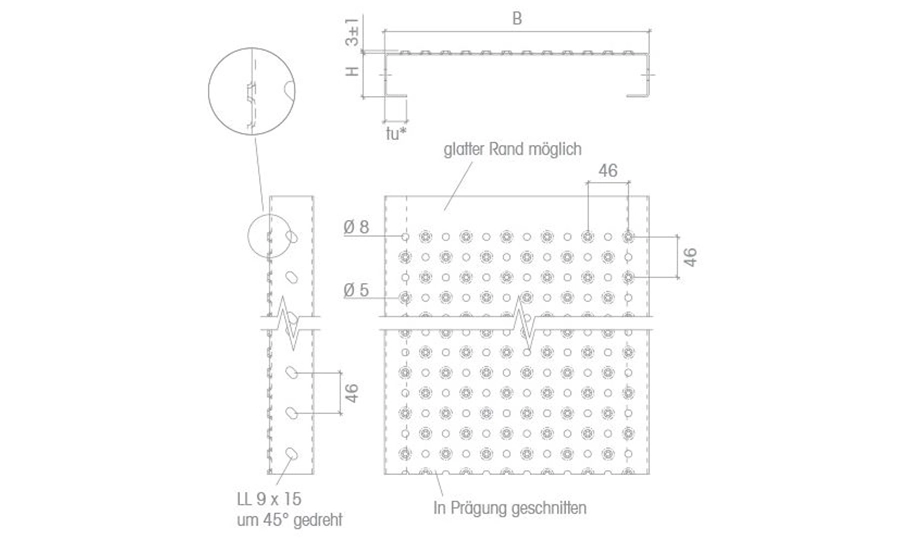

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R11 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R11 |
| Aluminum [AIMg3] | 2,0 / 3,0 | R11 |
| Stainless steel [AISI 304L] | 2,0 | R11 |
| Preferred widths | 180 / 240 / 300 / 330 / 356 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Toldeco 8
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR quick fastening
Clamp connection with countersunk head screw M8.
BPR flange
Clamp connection with cage nut and countersunk head screw M8.
