BPR Screw connection
Hexagon bolt M8 x 20 with washers and self-locking nut.
Profile Planking

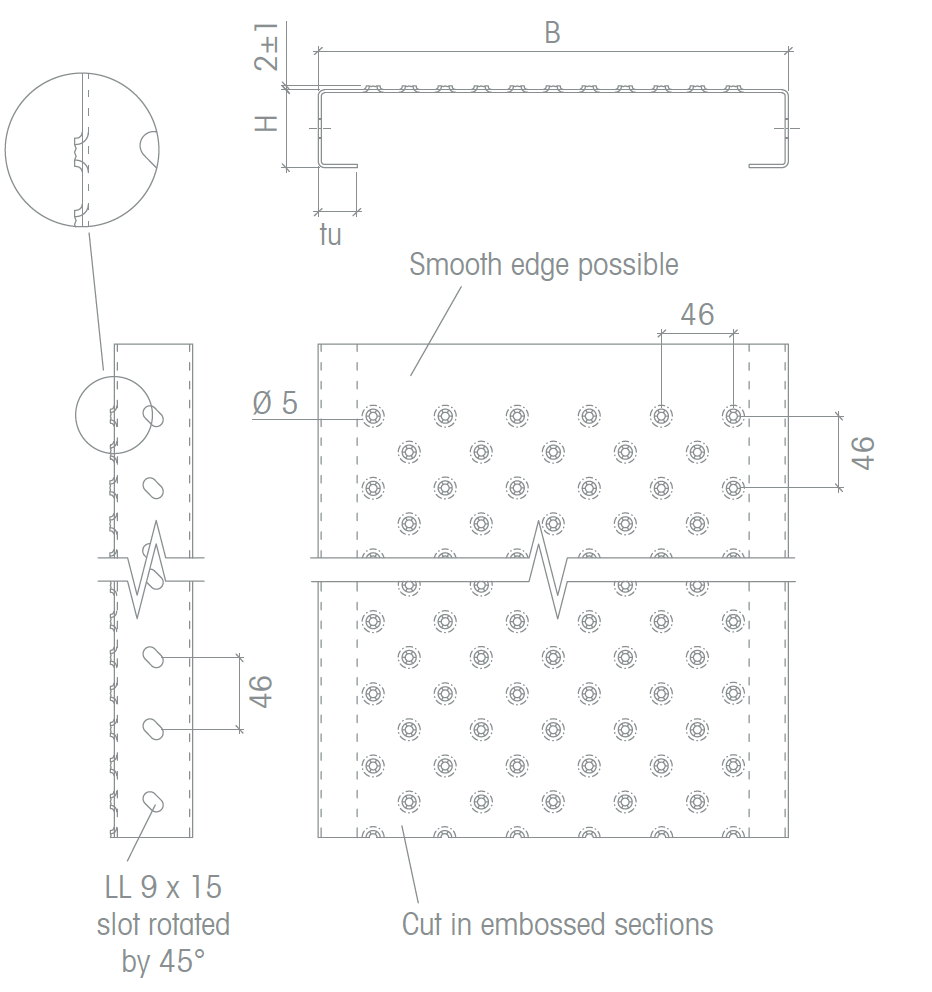

Tolpicot N
Tolpicot N provides the same benefits as Aderstep N while incorporating additional serration for enhanced slip resistance.
Your contact persons GratingsDimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Manufactured in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [AISI 304L] | 2,0 | R12 |
| Preferred widths | 180 / 240 / 300 / 330 / 360 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Tolpicot N
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
