Sheet metal profile gratings

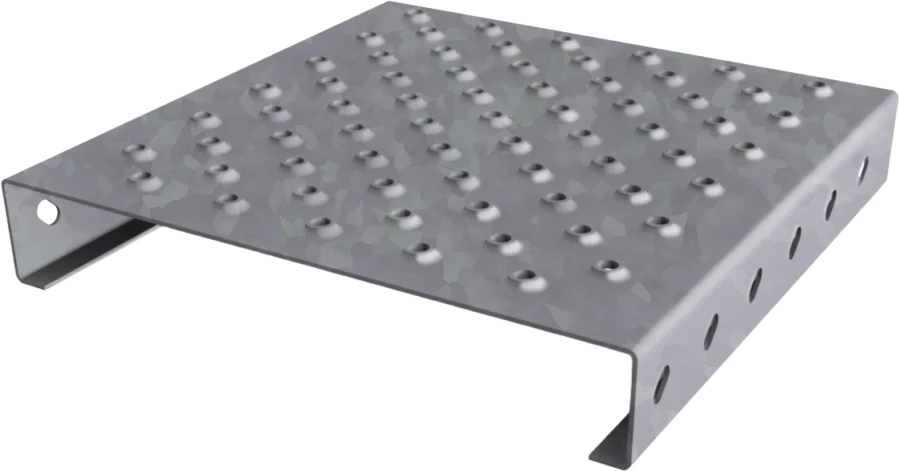

Toltop N
This grating offers non-slip safety and also prevents small parts from falling through. This enables safe walking and standing at great heights.
Ihre AnsprechpartnerThe Toltop N can be used in industrial and public areas, preferably indoors.

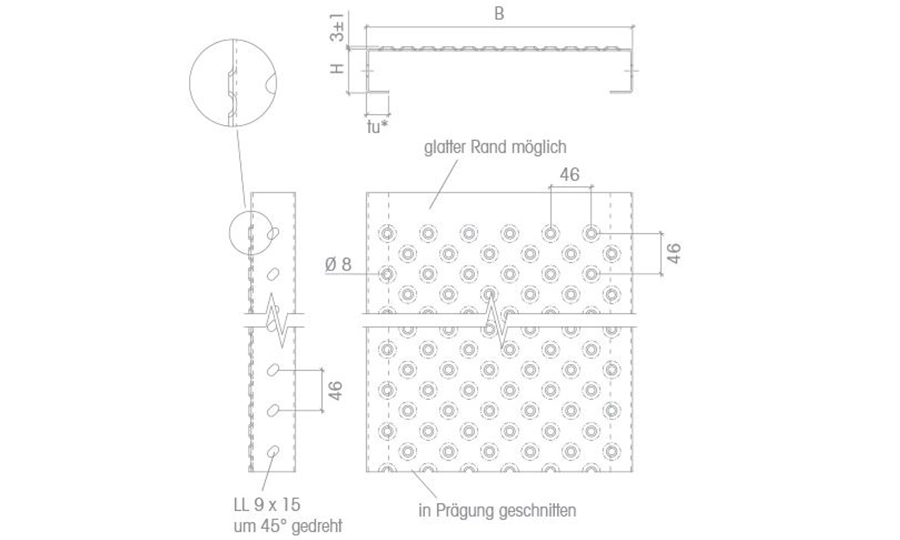

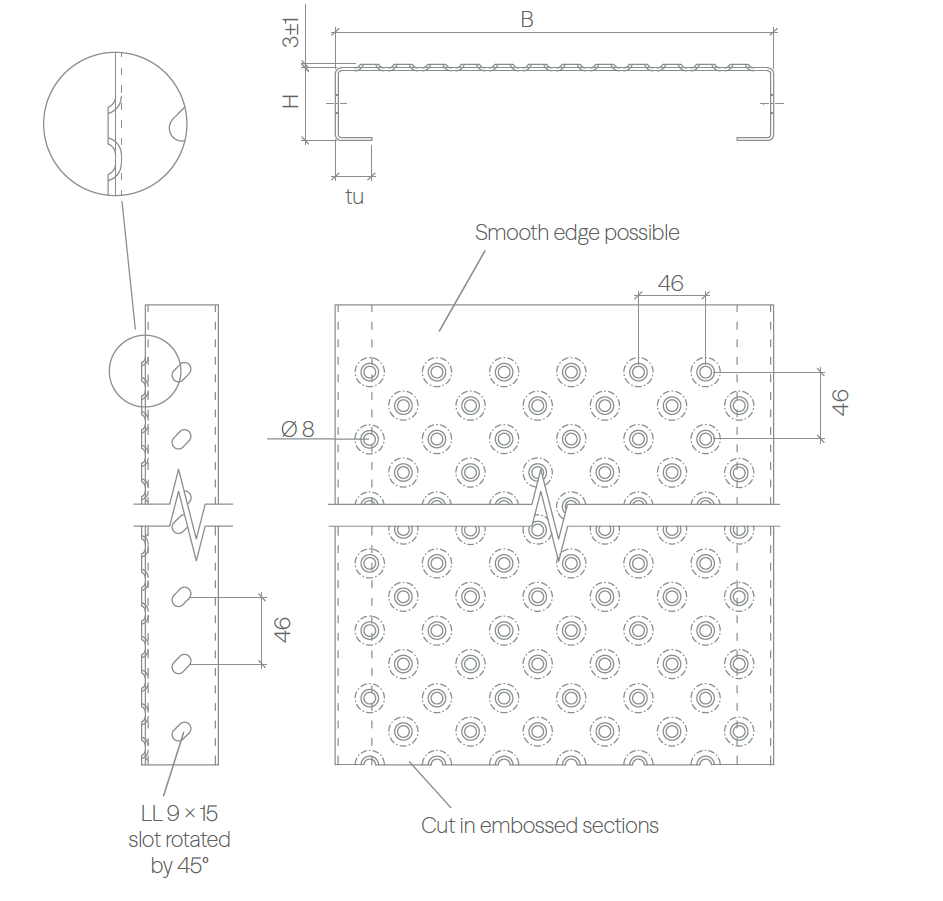

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | - |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [AISI 304L] | 2,0 | - |
| Preferred widths | 180 / 240 / 300 | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 4.002 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Toltop N
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
