Profile Planking
Stephuit FH

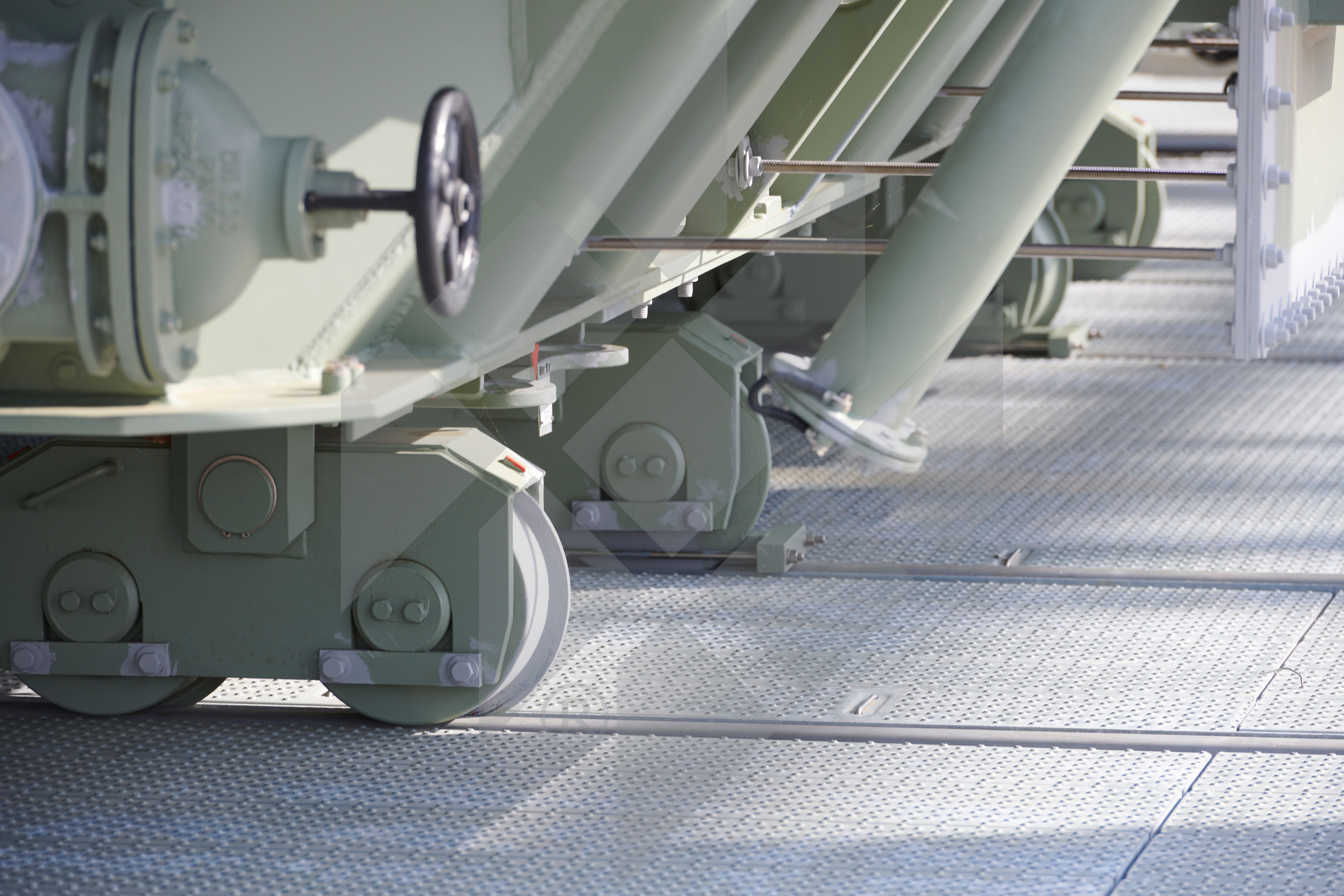

Stephuit FH flame-retardant. The next generation of transformer pit covers.
Find a contact person GratingsThe Stephuit FH grate has been successfully tested and certified by the MFPA for resistance to mineral oil fires.
It has been specifically developed for applications in fire-sensitive environments, making it the ideal solution for transformer bunds and installations with stringent fire protection requirements.
Other dimensions available on request.

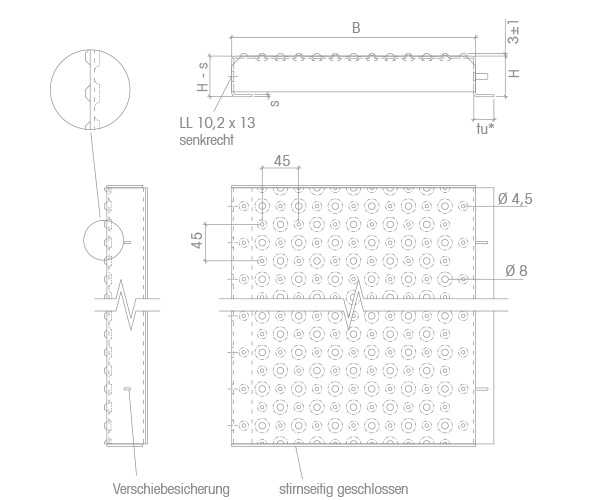

| Material | Sheet thickness | Rating RH |
|---|---|---|
| Hot-dip galvanized steel [DD11] | 2,0 / 2,5 / 3,0 | R11 |
| Preferred widths | 150 / 180 / 240 / 300 | |
| Preferred heights | 40 / 50 / 75 / 100 | |
| Lengths | up to 2,800 mm |
Inspection Hatch
Hinged service opening available in 570 x 570 mm, 800 x 800 mm and 1,000 x 1,000 mm
Inspection Opening
Removable service opening without hinges, available in 570 x 570 mm, 800 x 800 mm and 1,000 x 1,000 mm
Installation system
The Stephuit FH plug-in system enables fast and straightforward installation and removal through its specially developed tongue-and-slot connection.
Earthing
Available with a welded earthing lug or welded earthing nut, positioned either on the upper or underside of the panel.
Key Benefits
- Fast installation and removal using the integrated plug-in system
- Reduced transformer downtime during maintenance
- Faster access for cleaning and servicing transformer bunds
- Integrated inspection openings available
- Customised configurations on request
- Outstanding fire resistance and excellent drainage performance
