Profile Planking

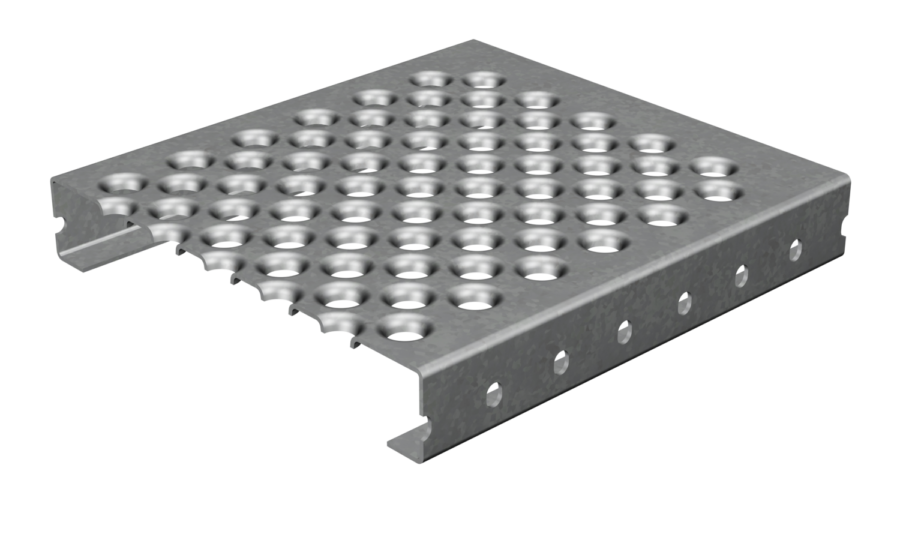

Airstep N

Airstep N features an attractive circular perforation pattern that makes it particularly suitable for architectural applications such as façade cladding and solar shading systems.

Find a contact person

It is also ideal for shelving systems where efficient air circulation and light transmission are required while maintaining a comparatively smooth walking surface.

Here you'll find the right contact person for Gratings

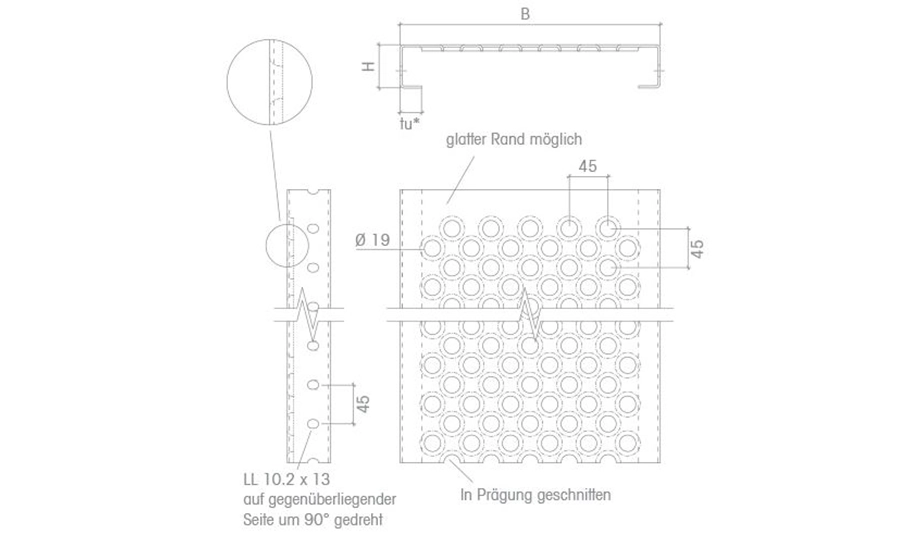

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	-
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	-
Aluminum [AIMg3]	2,5 / 3,0	-
Stainless steel [1.4301]	2,0	-

Preferred widths	182 / 240 / 298 / 330 / 356 variable
Preferred heights	40 / 50 / 75 / 100 other heights on request
Lengths	max. 6,030 mm
Length divider	45
