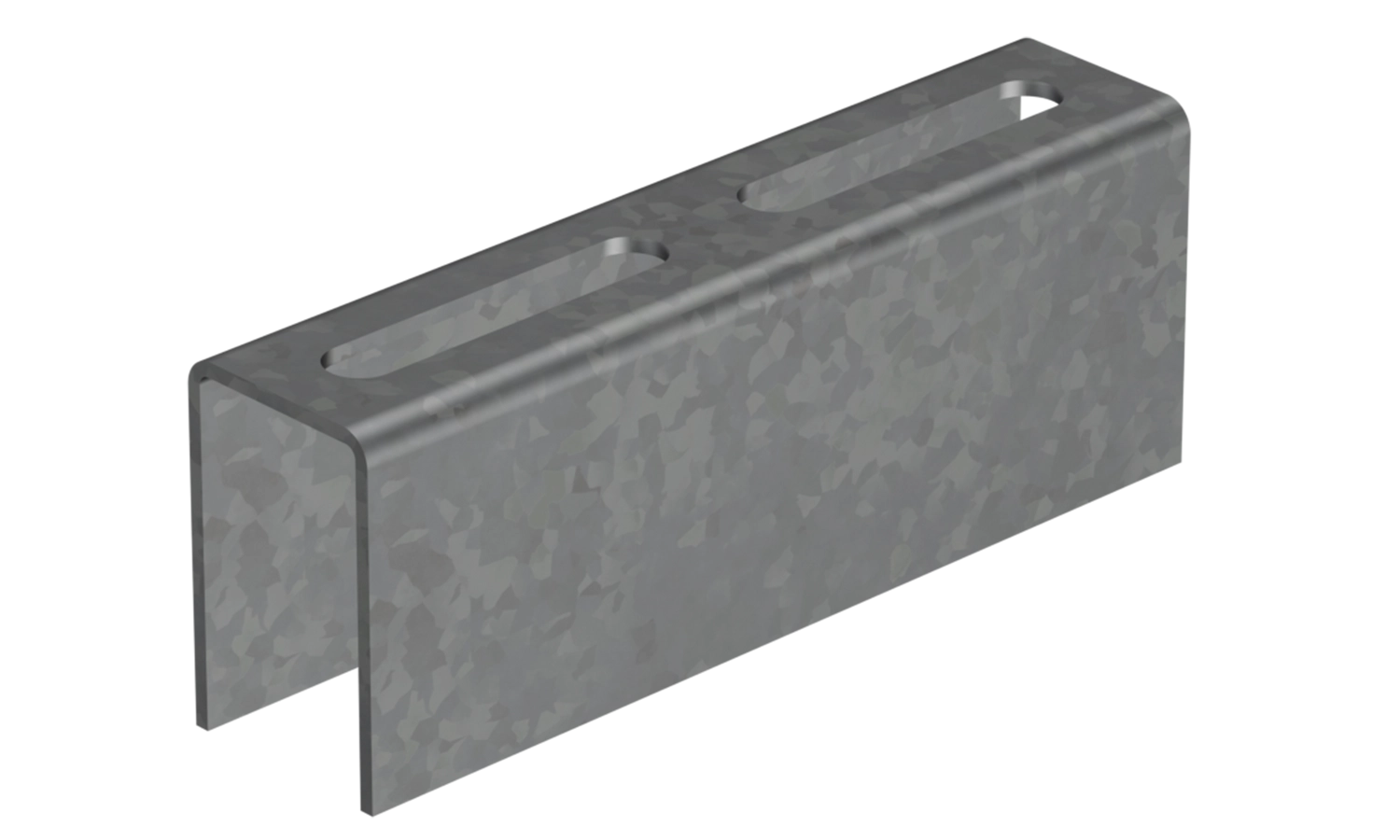

BPR support profile
For connecting the gratings to each other at the front and for supporting the gratings in the middle at the same time.
Sheet metal profile gratings

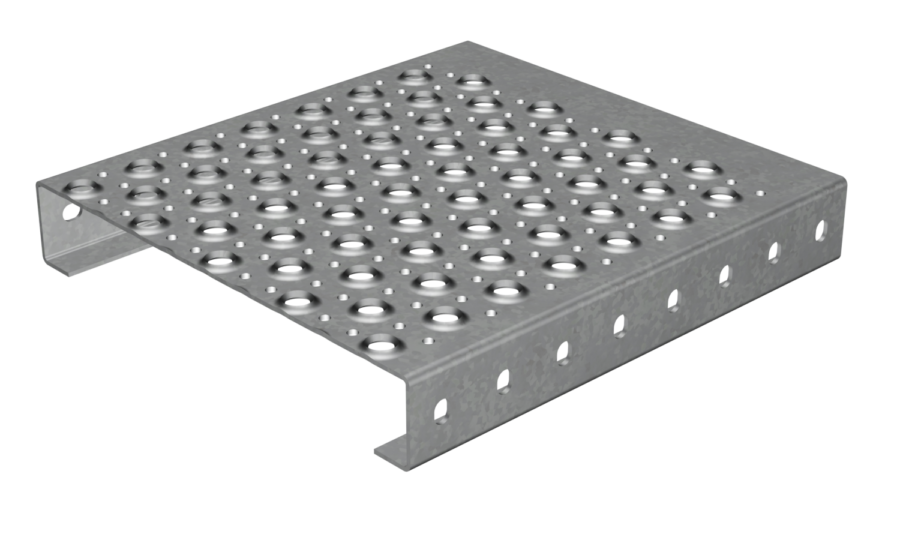

Formstep O7
This sheet metal profile grating has different perforations, enabling different functions and properties.
Ihre AnsprechpartnerThis surface is characterized on the one hand by the large, upwardly pronounced holes, which give it a high slip resistance, and on the other hand by the smaller, punched holes, which ensure that liquids run off and dust falls through.
This means it can be used both indoors and outdoors for staircases, landings and walkways.

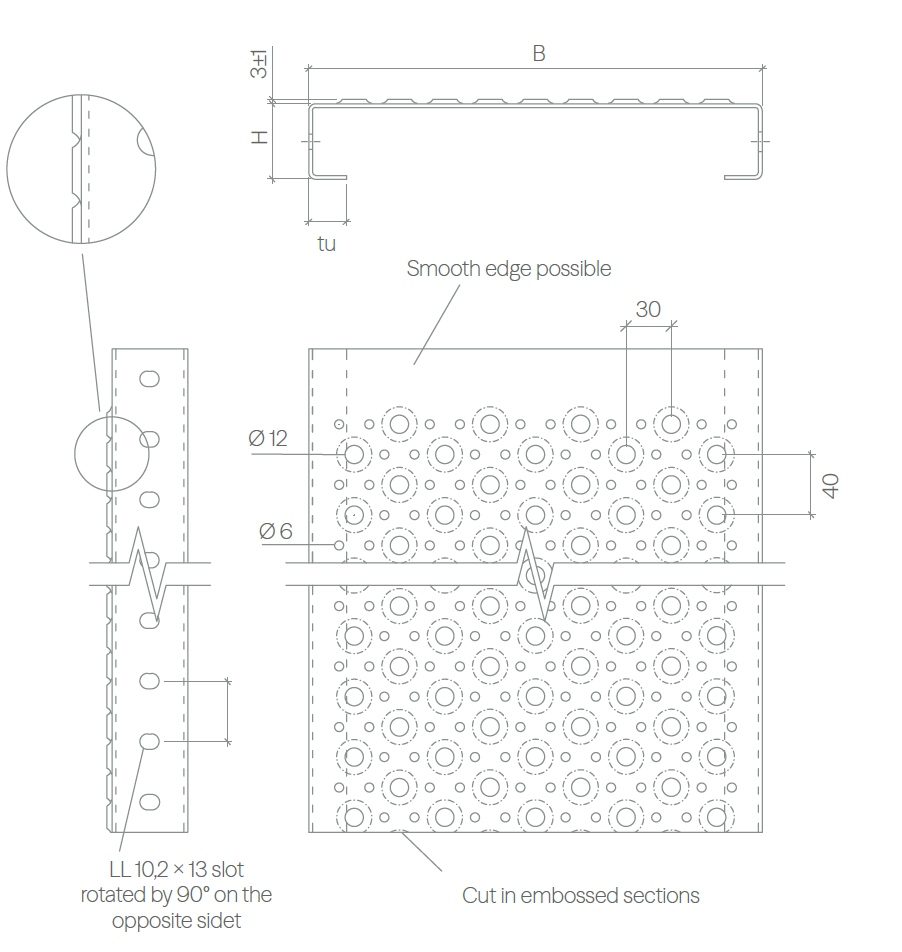

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | RH13 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | RH13 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | RH13 |
| Preferred widths | 120 / 180 / 240 / 300 / 360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 40 |
Matching accessories
Attachments for Formstep O7
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR quick fastening
Clamp connection with countersunk head screw M8.
BPR flange
Clamp connection with cage nut and countersunk head screw M8.
