BPR setting technology closed surfaces
Including a hole of ∅ 13mm in the profile.
Sheet metal profile gratings
Bostep G
The even alignment of the embossing makes Bostep G particularly suitable for large indoor areas. The closed surface covers levels opaquely and prevents objects from falling through.

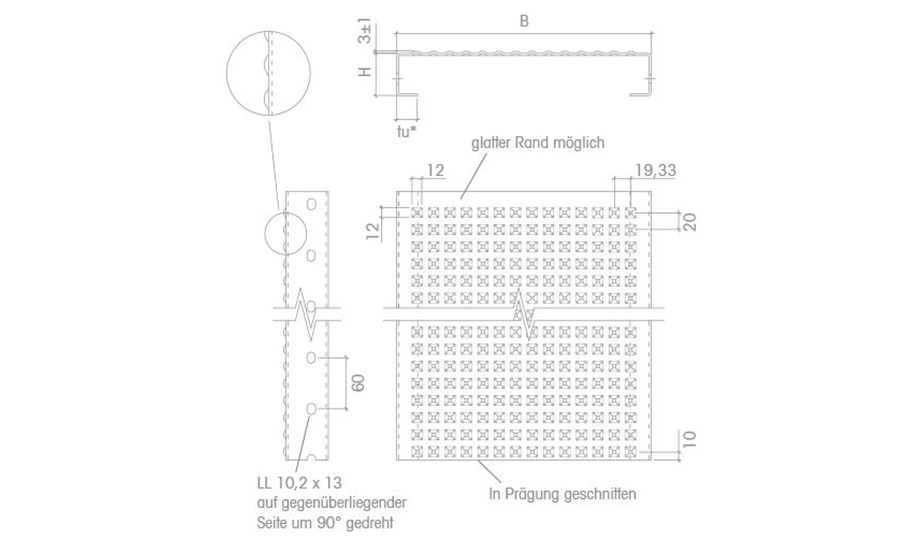

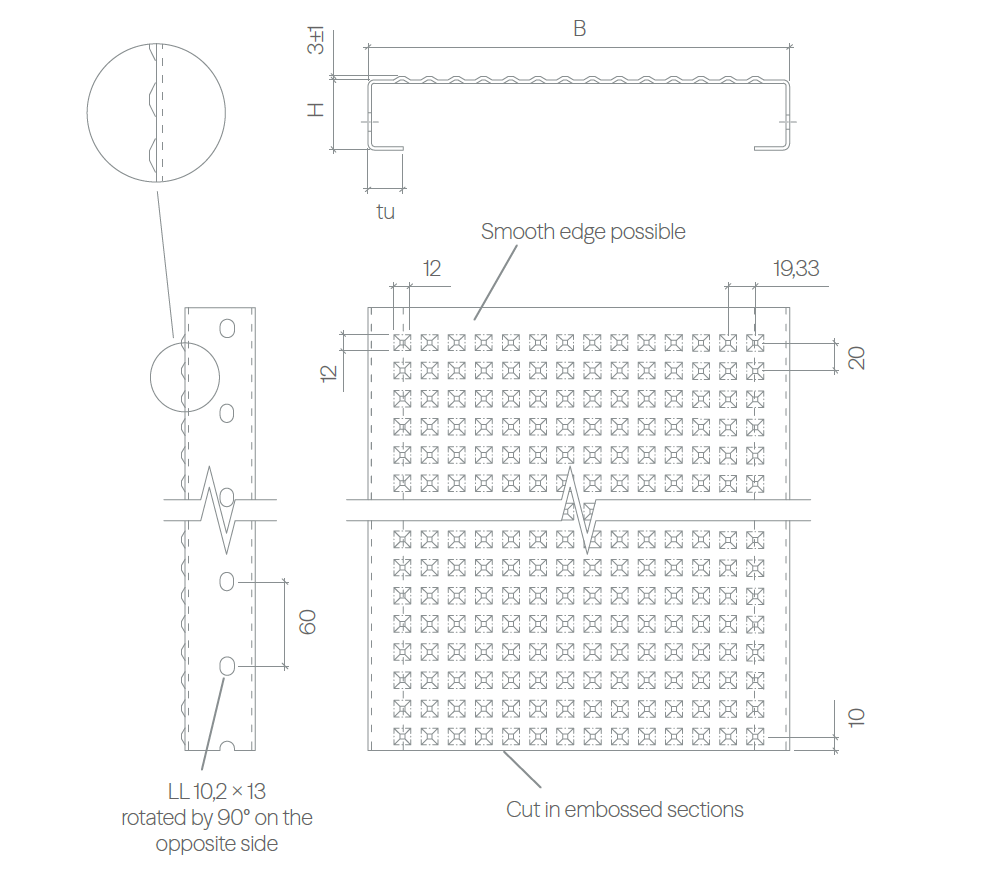

Ihre AnsprechpartnerDimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R10 |
| Stainless steel [1.4301] | 2,0 | R10 |
| Preferred widths | 200 / 240 / 298 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 8,000 mm | |
| Length divider | 60 |
Matching accessories
Attachments for Bostep G
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
