BPR setting technology closed surfaces
Including a hole of ∅ 13mm in the profile.
Sheet metal profile gratings
Steplarm G
The surface structure is comparable to a tear plate, so that this product can be seen as an attractive alternative, albeit with a higher load-bearing capacity for larger spans.
Ihre AnsprechpartnerA closed grating that works very well in public areas with pedestrian traffic and in commercial use.

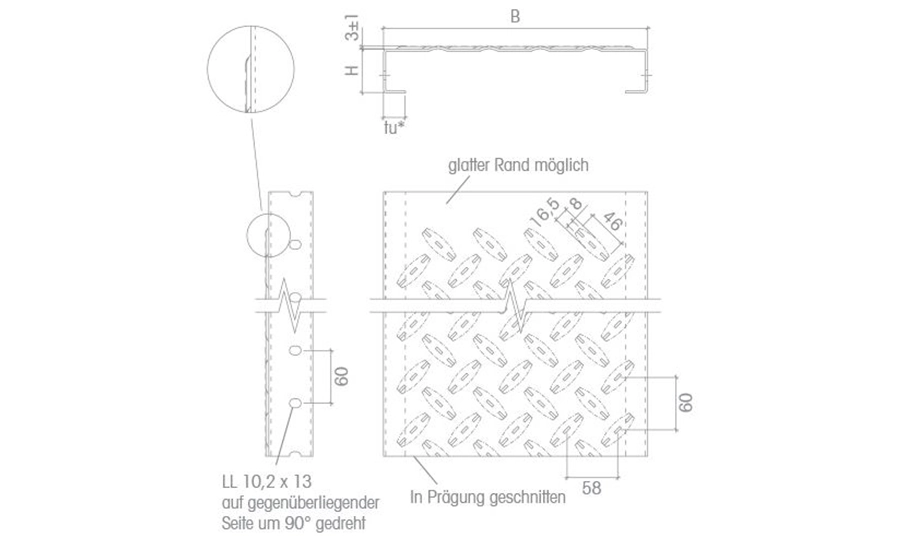

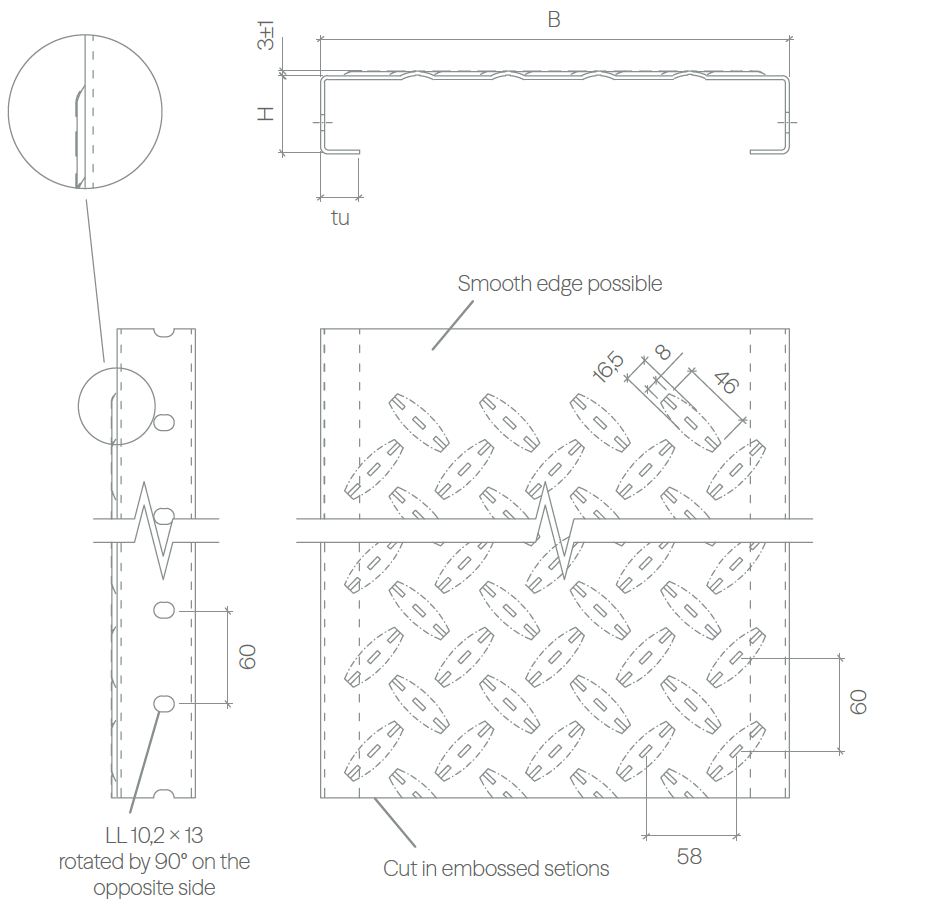

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 200 / 240 / 270 / 298 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 8,000 mm | |
| Length divider | 60 |
Matching accessories
Attachments for Steplarm G
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
