Formstep O4

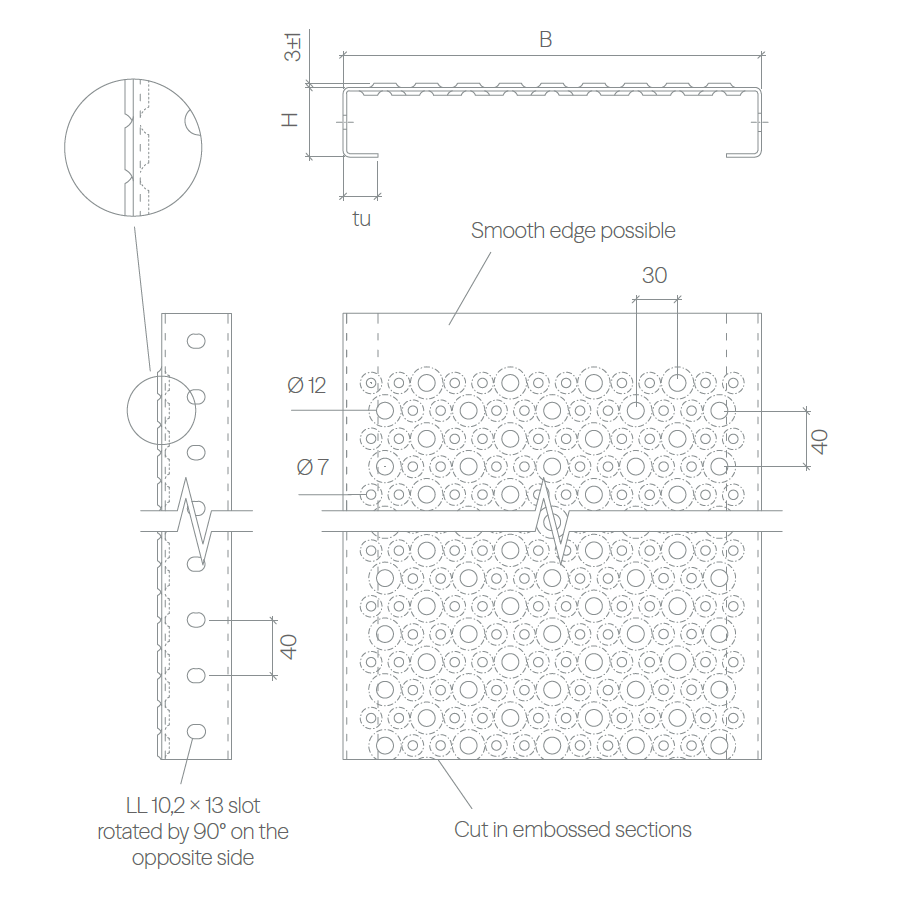

Formstep O4 offers the same benefits as Formstep N but with the perforation pattern reversed: the larger perforations are embossed upwards while the smaller perforations face downwards, providing enhanced slip resistance.
Find a contact person GratingsDimensions
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [1.4301] | 2,0 | R12 |
| Preferred widths | 120 / 180 / 240 / 300 / 360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,000 mm | |
| Lengths | 40 |
Matching accessories
Attachments for Formstep O4
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
