Profile Planking

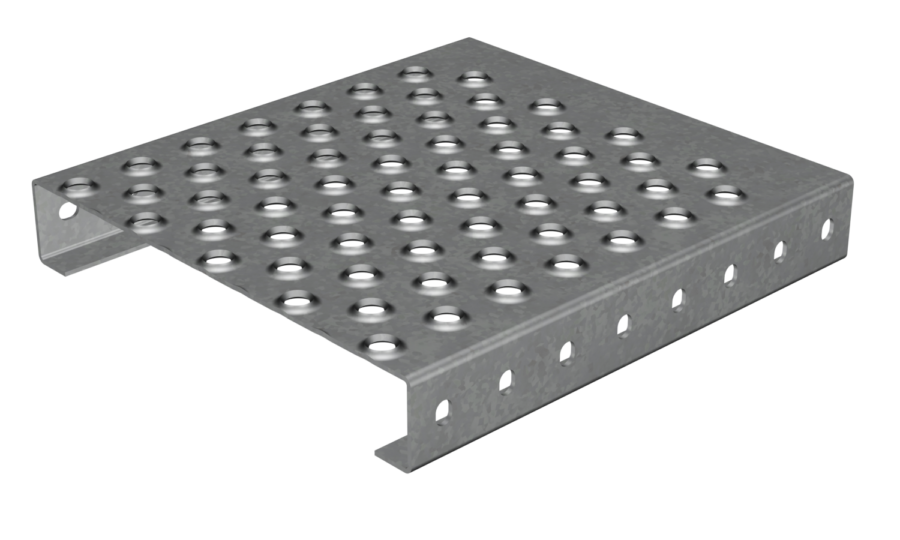

Formstep O5
Formstep O5 provides excellent slip resistance through its upward-embossed perforations and is particularly well suited for indoor applications.

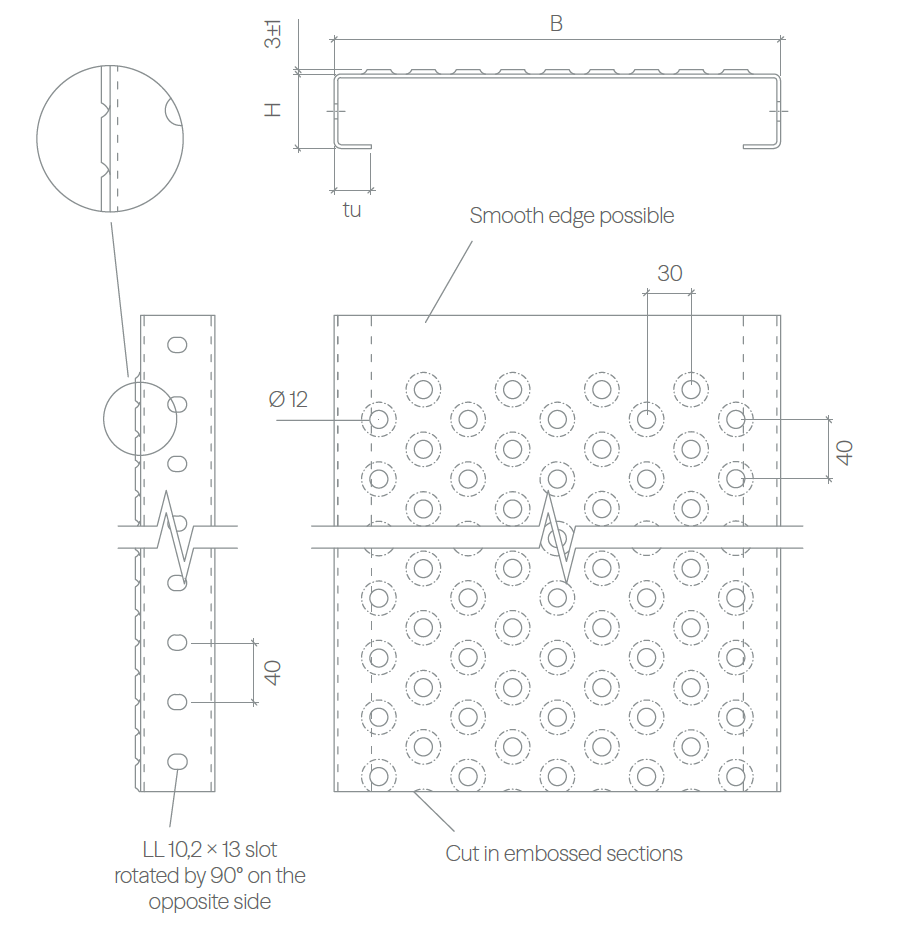

Find a contact person GratingsDimensions
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [1.4301] | 2,0 | R12 |
| Preferred widths | 120 / 180 / 240 / 300 / 360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 40 |
Matching accessories
Attachments for Formstep O5
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
