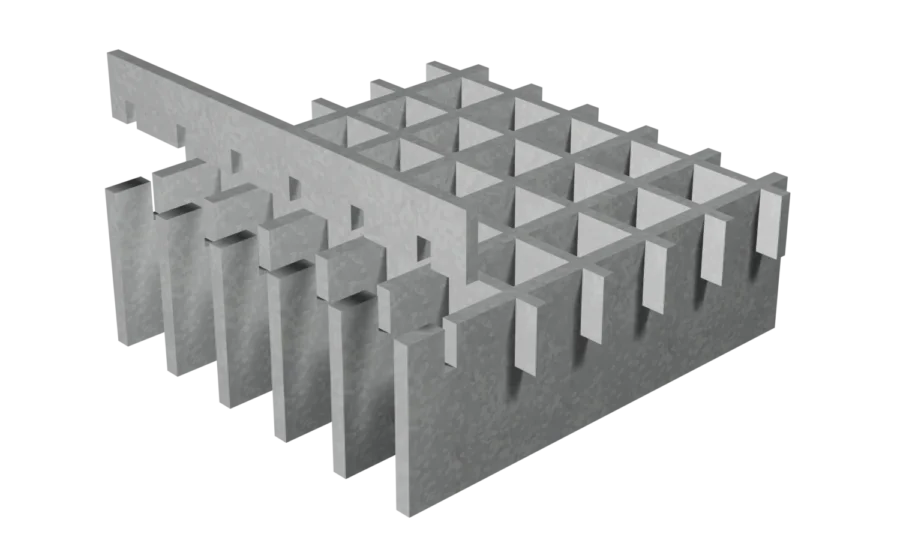

Heavy-Duty Gratings
MEISER heavy-duty gratings are specifically engineered for applications involving exceptionally high loads. They are manufactured as press-locked gratings with extra-high and/or extra-wide bearing bars, complemented by correspondingly dimensioned filler bars.
Ihre AnsprechpartnerA counter-serration incorporated during the pressing process provides additional structural stability, enabling the gratings to withstand surface loads exceeding 50 tonnes and wheel loads of up to 10 tonnes.
Each heavy-duty grating is individually designed to match the required spans and loading conditions. Stainless steel versions are also available. Depending on project requirements, a wide choice of mesh sizes, edging profiles and surface finishes can be specified. Anti-slip designs and customised installation details can also be incorporated, ensuring a durable, reliable solution tailored to the specific application.
Common mesh divisions
| Support rod | Filler rod | ||
|---|---|---|---|
| 25 | 50 | 75 | 100 |
| 50 | 50 | 75 | 100 |
| 75 | 50 | 75 | 100 |
| 100 | 50 | 75 | 100 |
Standard bearing bar profiles
| Support rod 8 mm | Support rod 10 mm height | Support rod 12 mm |
|---|---|---|
| 80/8 | 80/10 | - |
| 90/8 | 90/10 | - |
| 100/8 | 100/10 | 100/12 |
| 110/8 | 110/10 | 110/12 |
| 120/8 | 120/10 | 120/12 |
| 130/8 | 130/10 | 130/12 |
| 140/8 | 140/10 | 140/12 |
| 150/8 | 150/10 | 150/12 |
| - | - | 160/12 |
| - | - | 170/12 |
| - | - | 180/12 |
| - | - | 190/12 |
| - | - | 200/12 |
