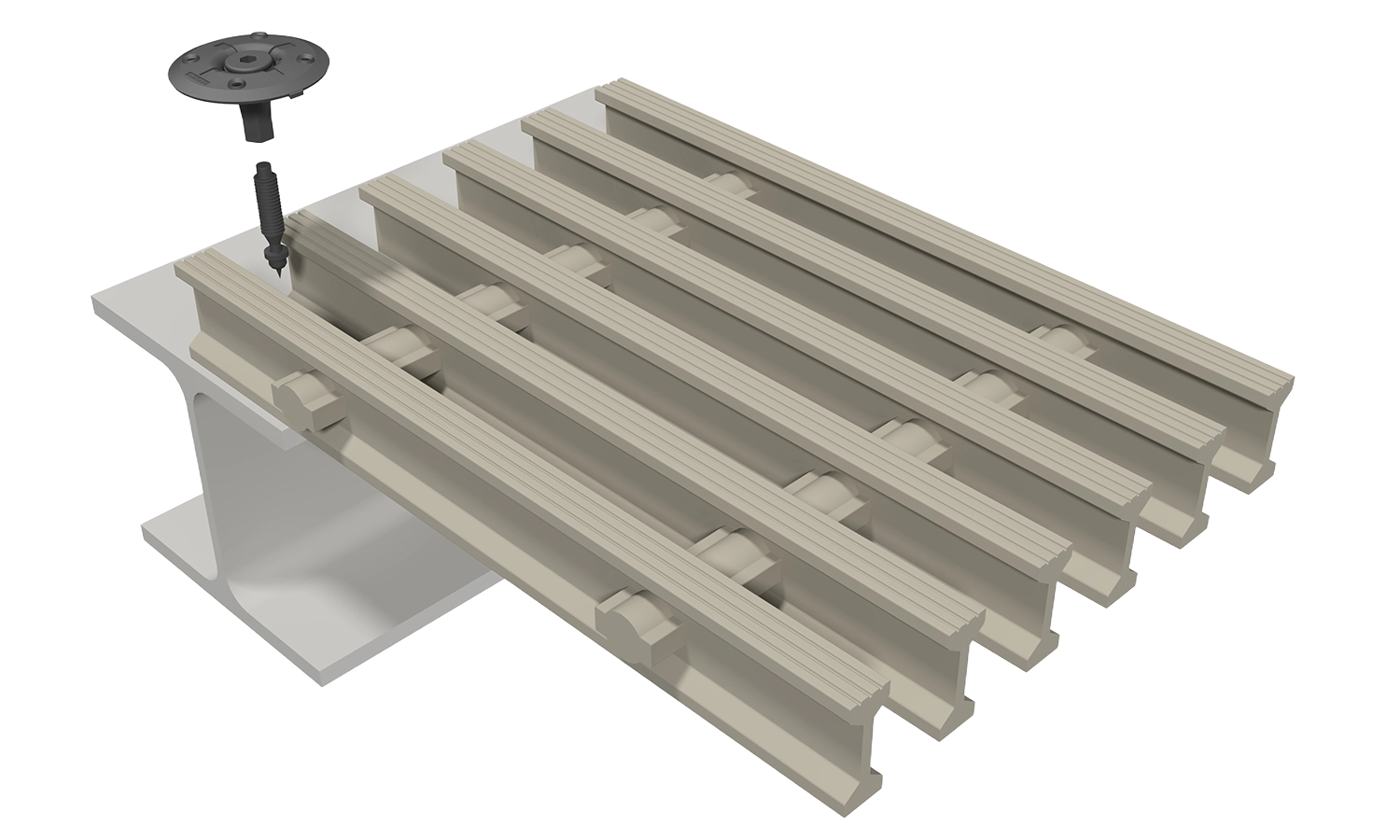

GRP I + T profiled grating, set bolt fastening
Fixing bolt fastening consisting of retaining flange (length as required) and threaded nail.
GRP Systems
I-Bar Type pultruded GRP Grating
I-bar type pultruded GRP gratings are manufactured from pultruded bearing bars and cross bars with a glass fibre content of approximately 68 %.
Find a contact person GratingsCompared with moulded GRP gratings, this higher glass content provides significantly greater stiffness, allowing either larger unsupported spans or reduced construction heights.
The specially engineered connection between the bearing bars and cross bars ensures outstanding long-term structural stability.
The bearing bars are manufactured in accordance with EN 13706 using longitudinal glass fibre rovings, transverse glass fibre mats and a protective surface veil.
A range of surface finishes is available to suit different applications and slip resistance requirements.
Matching accessories
Attachments for I-Bar Type pultruded GRP Grating

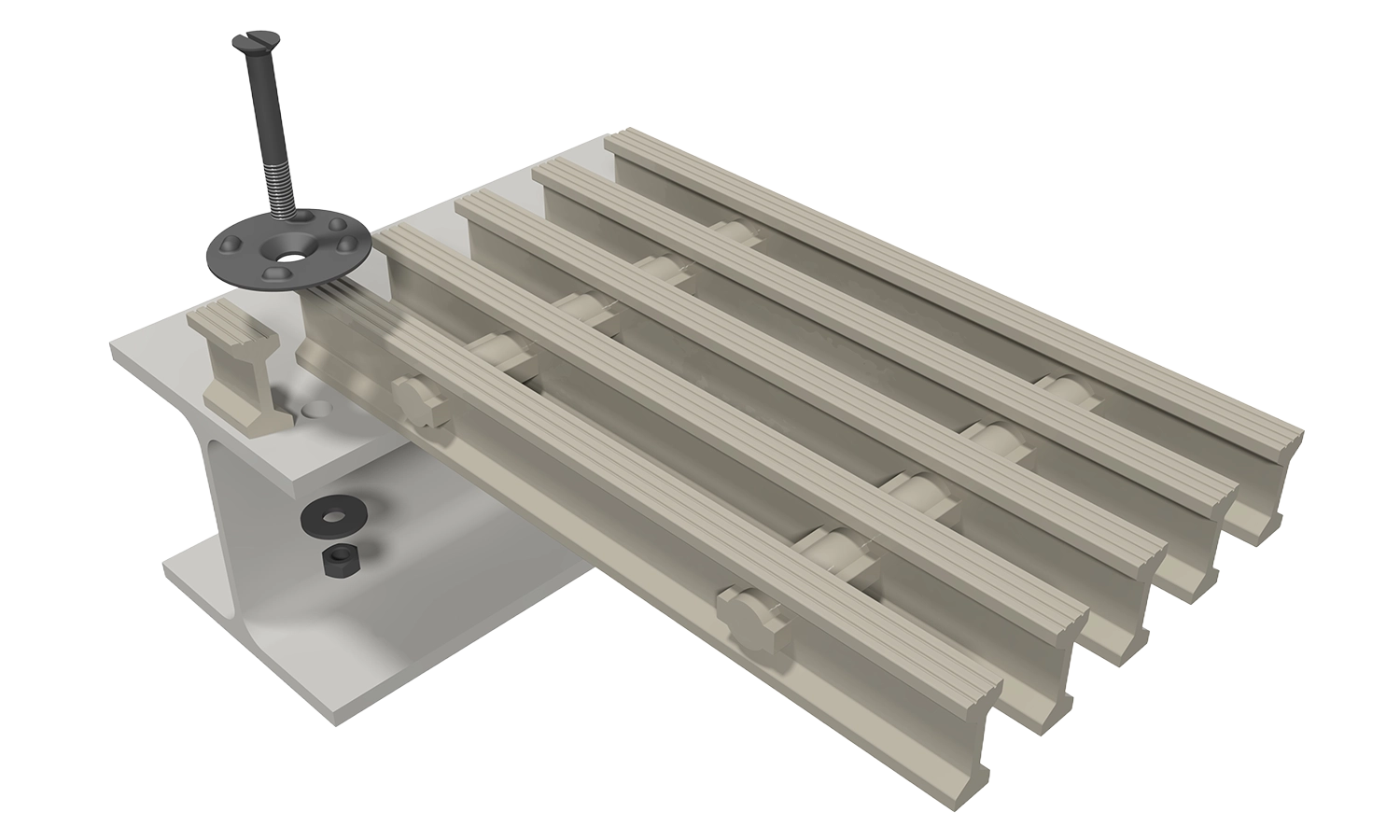

GRP I + T profile grating direct screw connection M0300
Consisting of flat upper part of plate, countersunk head screw M8 (length as required), washer 8.4 mm and self-locking hexagon nut M8.

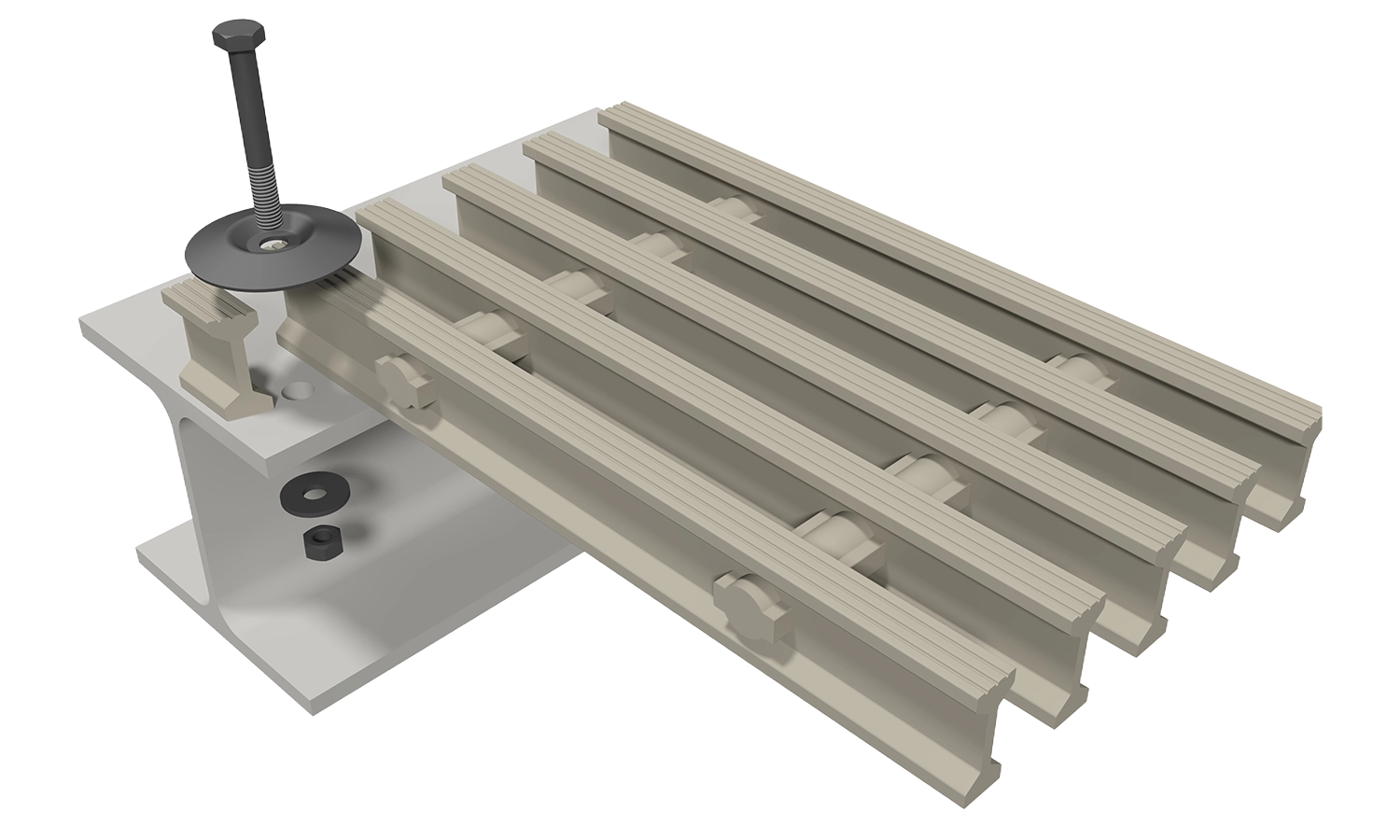

GRP I + T profile grating direct screw connection M2900
Consisting of an overlying upper part of the plate, hexagon head screw M8 (length as required), washer 8.4 mm and self-locking hexagon nut M8.
