MEISER Ultra-Module
MEISER Ultra-Module - three variants, one idea: maximum load-bearing capacity with minimum use of material.

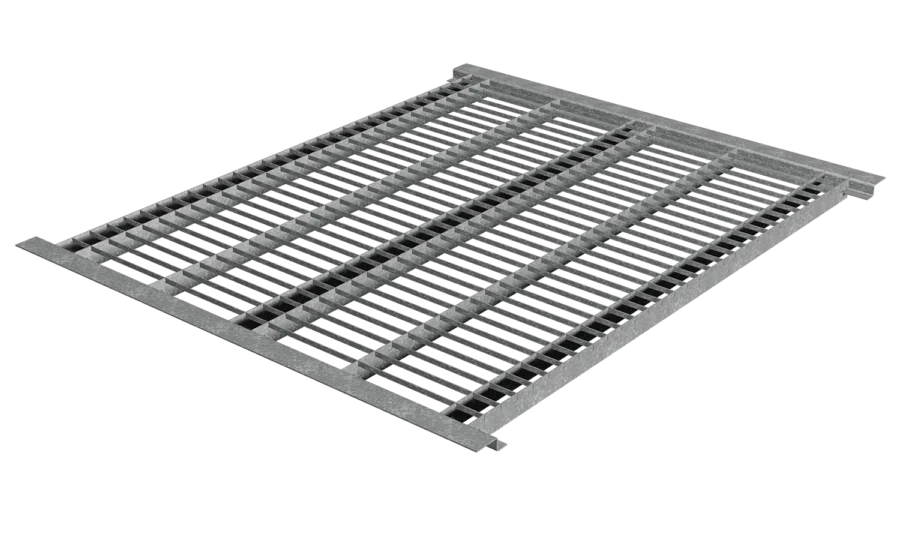

Find a contact person GratingsThe Ultra-Module is a high-quality shelving unit made of Sendzimir galvanized slatted strip measuring 995 x 890 mm, ideal for shelves with a depth of 1,100 mm*.
Due to the material, it is only suitable for indoor use.
* The clear compartment depth must not exceed 1,000 mm.
Product variants:
- Ultra-Module 500 kg 995 x 890 svz
- Ultra-Module 800 kg 995 x 890 svz
- Ultra-Module 1,000 kg 995 x 890 svz
Load specifications for EPAL1 1,200 x 800 mm and EPAL6 and EPAL7 half pallets 600 x 800 mm available.
Load support in detail, tested & recommended
Notes: Clear compartment depth max. 1,000 mm
| Ultra-Module | EPAL 1 lengthwise/crosswise | EPAL 6/7 lengthwise | EPAL 6/7 transverse |
|---|---|---|---|
| 500 kg 995 x 890 svz | 500 kg | 290 kg | 275 kg |
| 800 kg 995 x 890 svz | 800 kg | 550 kg | 460 kg |
| 1,000 kg 995 x 890 svz | 1,000 kg | 660 kg | 550 kg |
Storage recommendation for customers:
Ultra-Module 500 kg 995 x 890 svz
| Euro pallet / EPAL 1 | lengthwise | 500 kg |
| Euro pallet / EPAL 1 | transverse | 500 kg |
| Half pallet / EPAL 6/7 | lengthwise | 290 kg |
| Half pallet / EPAL 6/7 | transverse | 275 kg |
Ultra-Module 800 kg 995 x 890 svz
| Euro pallet / EPAL 1 | lengthwise | 800 kg |
| Euro pallet / EPAL 1 | transverse | 800 kg |
| Half pallet / EPAL 6/7 | lengthwise | 550 kg |
| Half pallet / EPAL 6/7 | transverse | 460 kg |
Ultra-Module 1,000 kg 995 x 890 svz
| Euro pallet / EPAL 1 | lengthwise | 1,000 kg |
| Euro pallet / EPAL 1 | transverse | 1,000 kg |
| Half pallet / EPAL 6/7 | lengthwise | 660 kg |
| Half pallet / EPAL 6/7 | transverse | 550 kg |
How it works in practice
Shelf width: 2,700 mm
3 Ultra-Modules 1,000 kg = shelf load 3,000 kg*
*When using EPAL 1 as a load carrier
Suitable for:
- EPAL 1 lengthwise and crosswise
- EPAL 6/7 longitudinal and transverse with halved load

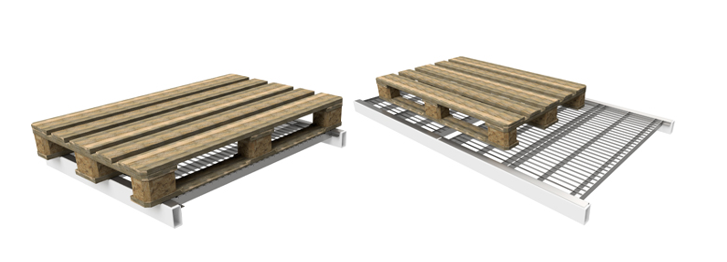

EPAL 1 lengthwise & EPAL 1 crosswise

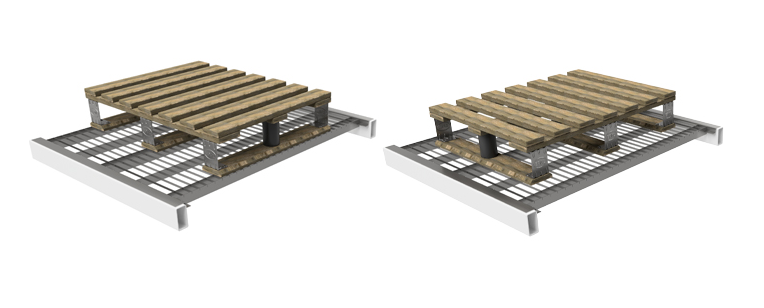

EPAL 6/7 lengthwise & EPAL 6/7 crosswise
Advantages at a glance:
- Standard size 995 x 890 mm
- Suitable for 1,800 / 2,700 / 3,600 mm wide shelves
- Low deflection under load
- Retractable installation with Z-profile
- Compatible with sprinkler systems
- Fast delivery, even for small quantities
- Simple selection, depending on load requirements
