Gratings
Press-Locked Gratings
Thanks to the wide range of available materials and design options, press-locked gratings can be tailored precisely to the requirements of each application.
Your contact persons GratingsRather than claiming to be superior to press-welded gratings, press-locked gratings offer greater design flexibility and a more refined appearance, making them the preferred choice for many architectural and customised applications.
During production, the cross bars—typically made from cold-rolled flat steel—are pressed into pre-punched bearing bars. The perimeter frame is manufactured from either a T-section or flat bar and attached using the resistance welding process.
Where increased slip resistance is required, the bearing bars and/or cross bars can be serrated. Opposing end meshes are generally identical in size, although the manufacturing process allows for virtually unlimited design possibilities in terms of mesh configuration, dimensions and appearance.
Common mesh spacings for bearing bars from 2 to 3 mm
| Bearing bar | Cross bar | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 11,1 | 11,1 | 16,65 | - | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 21 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 22,2 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 44,4 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 55,5 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 11,1 | 16,65 | 21 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
Common mesh spacings for bearing bars from 4 to 5 mm
| Bearing bar | Cross bar | ||||||
|---|---|---|---|---|---|---|---|
| 21 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 25 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 50 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
Standard bearing bar profiles
| Bearing bar 2 mm | Bearing bar 3 mm | Bearing bar 4 mm | Bearing bar 5 mm |
|---|---|---|---|
| 20/2 | 20/3 | - | - |
| 25/2 | 25/3 | 25/4 | 25/5 |
| 30/2 | 30/3 | 30/4 | 30/5 |
| 35/2 | 35/3 | 35/4 | 35/5 |
| 40/2 | 40/3 | 40/4 | 40/5 |
| 45/2 | 45/3 | 45/4 | 45/5 |
| 50/2 | 50/3 | 50/4 | 50/5 |
| - | 60/3 | 60/4 | 60/5 |
| - | 70/3 | 70/4 | 70/5 |
| - | 80/3 | 80/4 | 80/5 |
| - | 90/3 | 90/4 | 90/5 |
| - | 100/3 | 100/4 | 100/5 |
| - | - | - | 110/5 |
| - | - | - | 120/5 |
| - | - | - | 130/5 |
| - | - | - | 140/5 |
| - | - | - | 150/5 |
| - | - | - | 160/5 |
| - | - | - | 170/5 |
Matching accessories
Attachments for Press-Locked Gratings
Clamp B 10
Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.
Clamp S
Consists of flat-head screw, clamp base and square nut.
Safety clamp D
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.

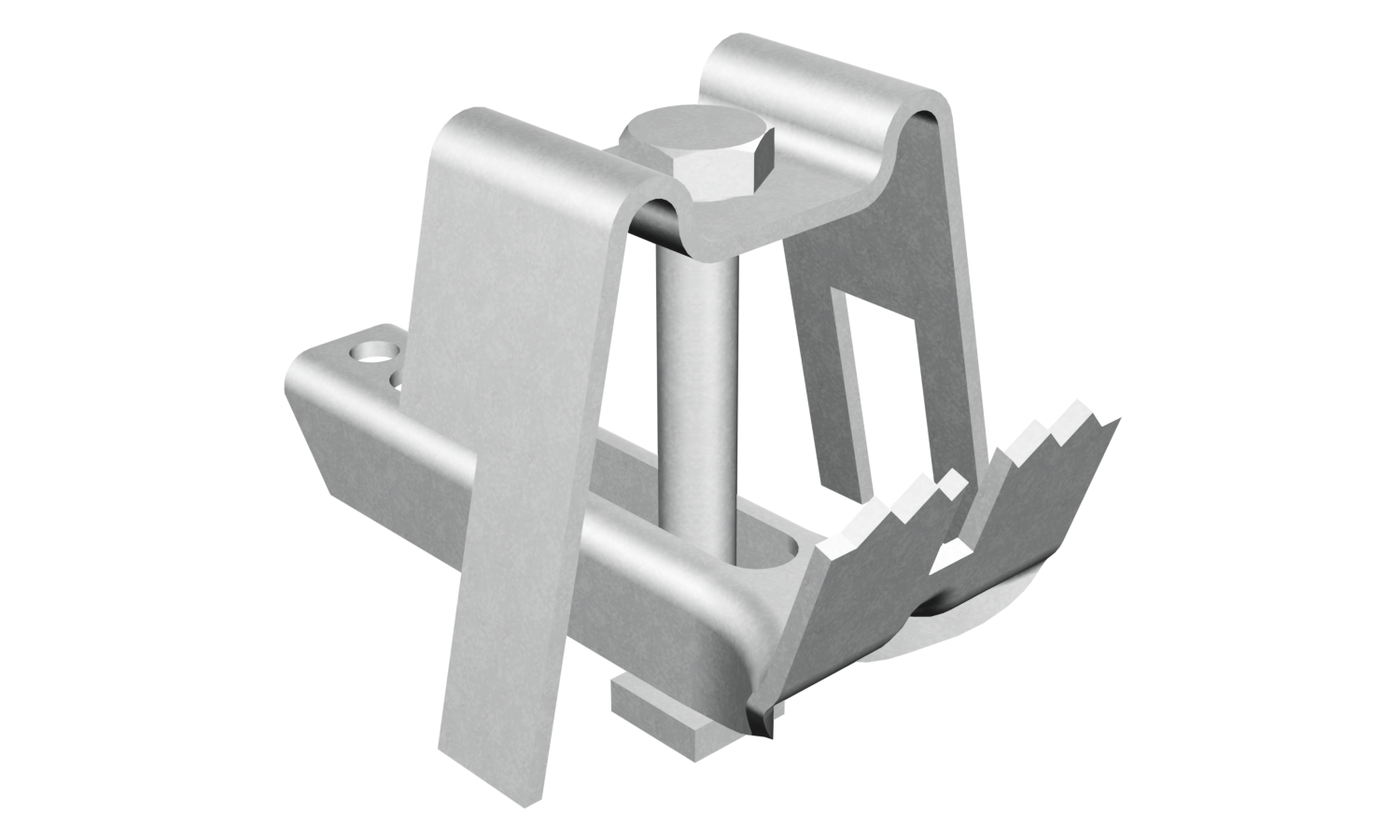

Safety clamp A
Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.

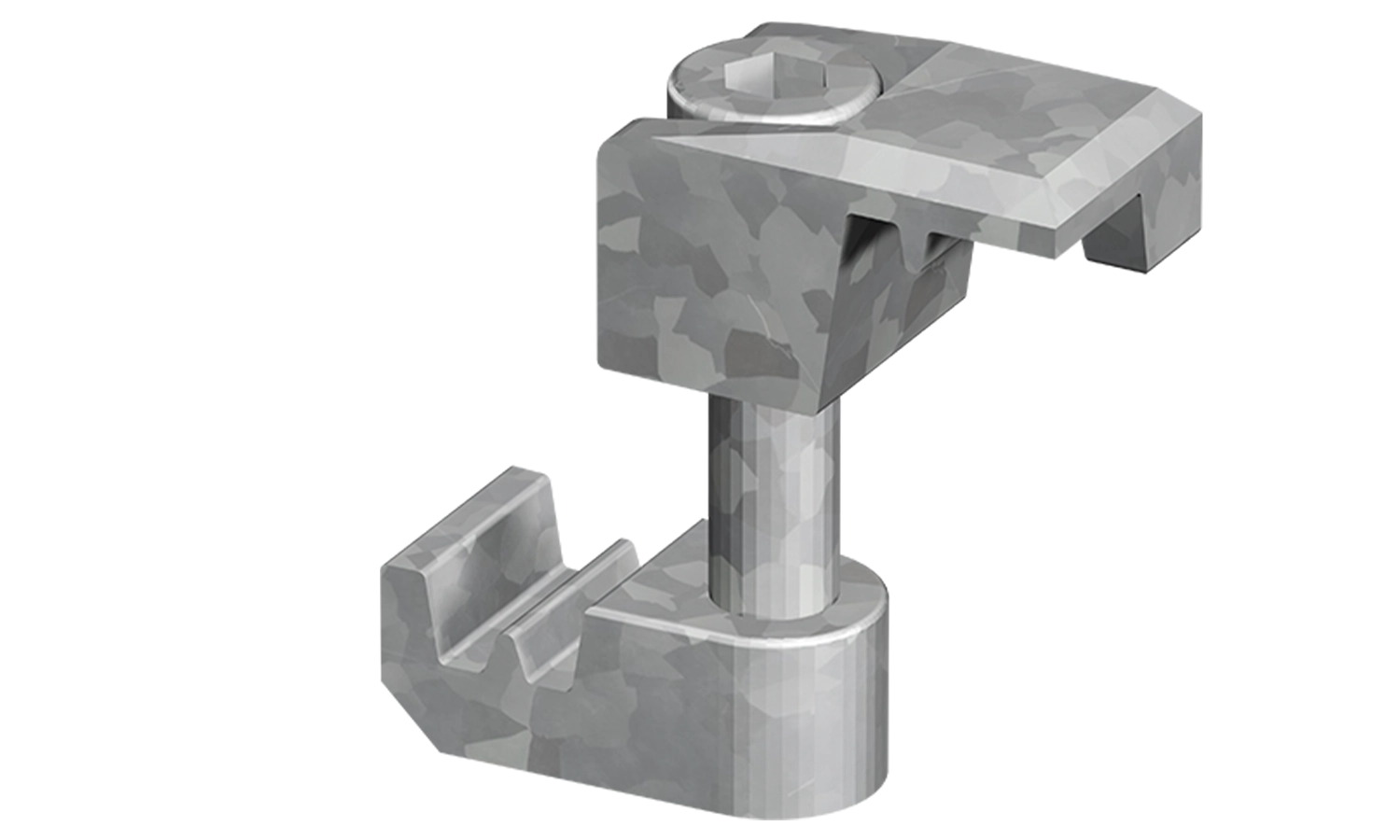

Grating butt joint
Consisting of upper part and lower part with thread and hexagon socket screw.

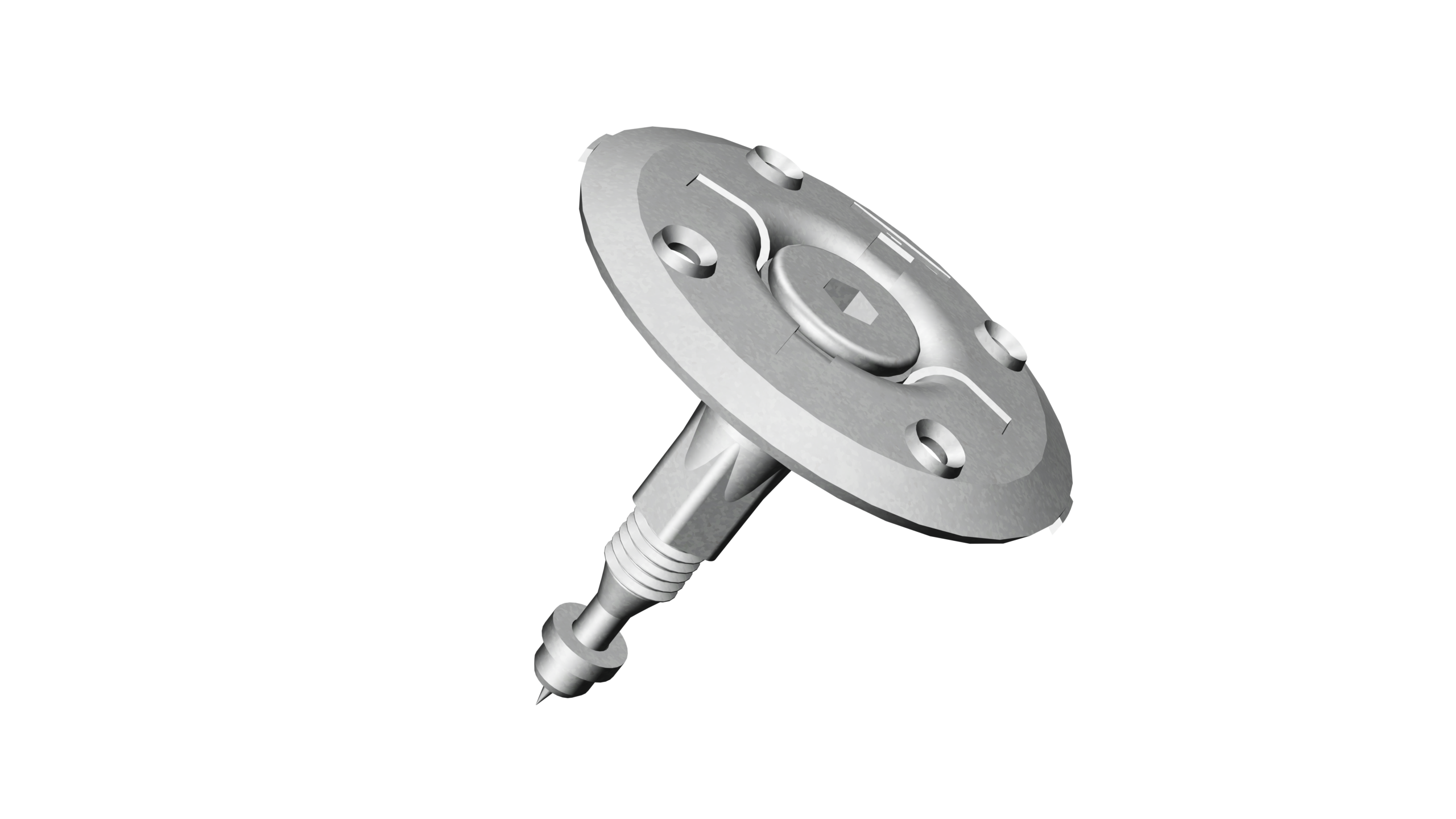

Grating Heald bolt fastener
Consisting of bolt and plate.
Welded-in holed fixing plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.

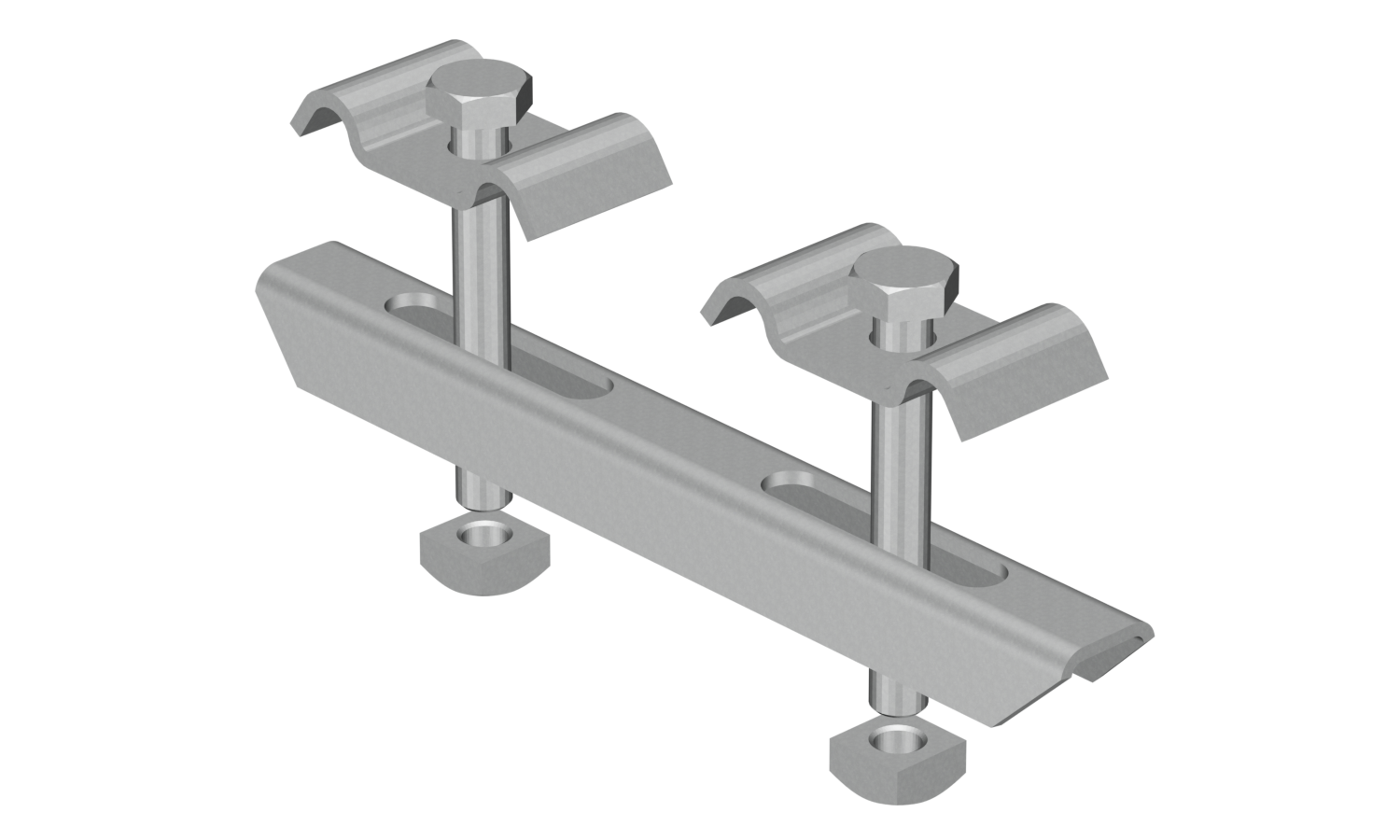

Double clamp B
Consists of 2 upper bracket parts, lower clamp part, 2 hexagon bolts and 2 square nuts.
