Profile Planking

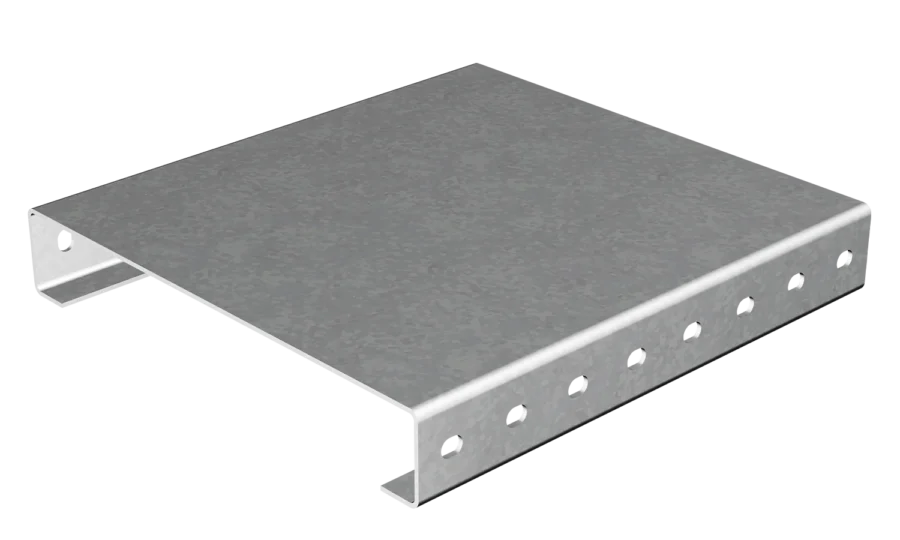

Smooth Sheet

This version is designed for shelving systems and other applications requiring a smooth, fully closed surface.

Additional applications include wall cladding and suspended ceiling systems.

Optional side perforations are available to allow adjacent panels to be securely fastened together during installation.

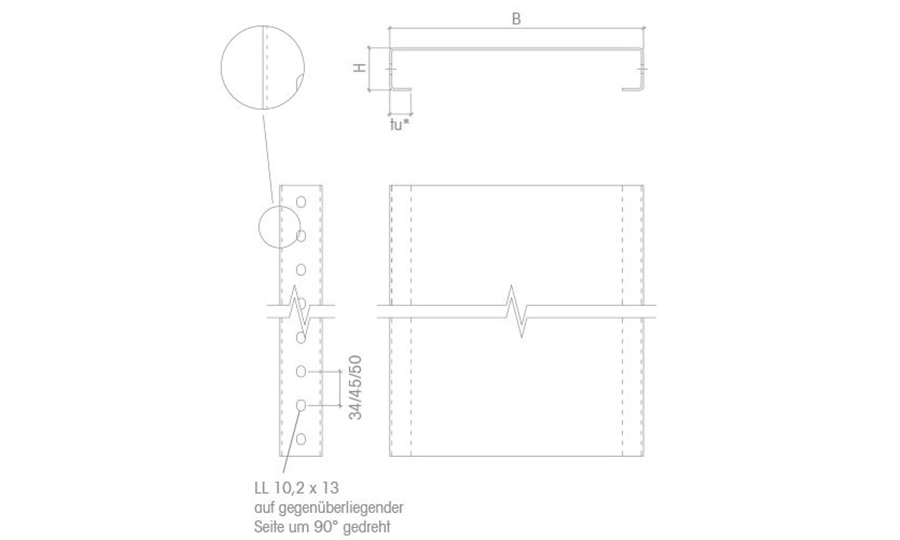

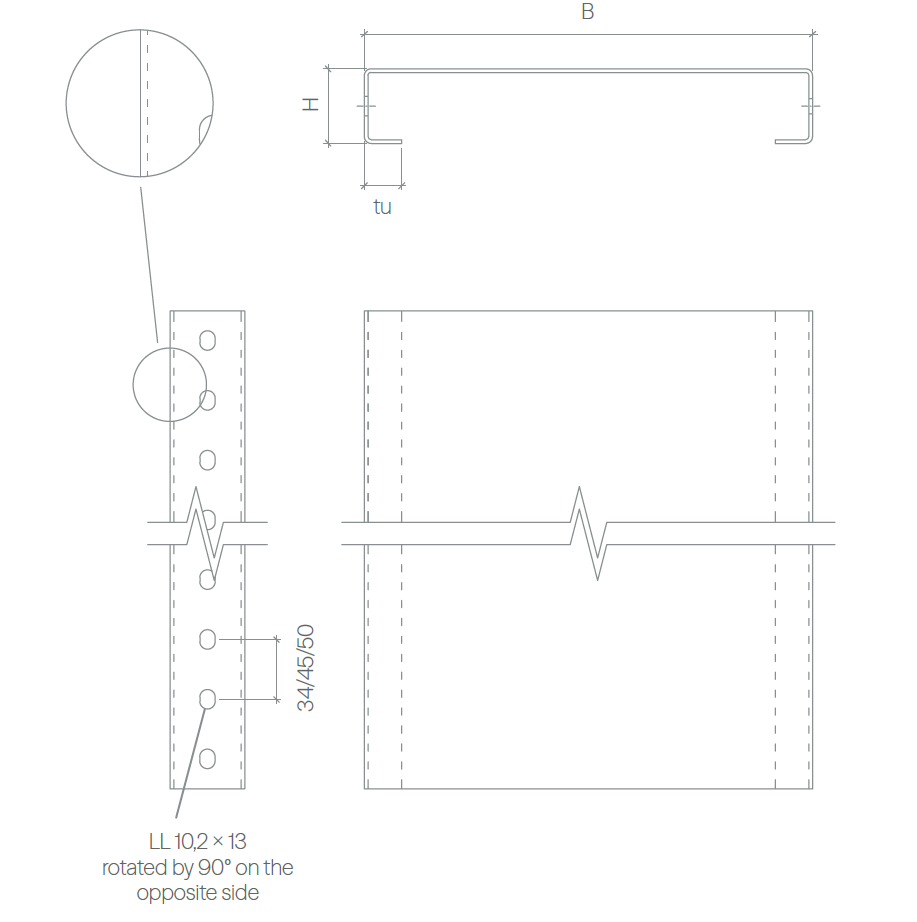

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	-
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	-
Aluminum [AIMg3]	2,5 / 3,0	-
Stainless steel [1.4301]	2,0	-

Preferred widths	120-360 variable
Preferred heights	40 / 50 / 75 / 100 / other heights on request
Lengths	max. 8,000 mm
Length divider	variable
