BPR Screw connection
Hexagon bolt M8 x 20 with washers and self-locking nut.
Profile Planking
Toldiamant G
The fully closed surface of Toldiamond G prevents both objects and liquids from passing through while providing secure footing.
Find a contact person GratingsIts architectural appearance makes it particularly suitable for interior applications, façade cladding and other premium design projects.

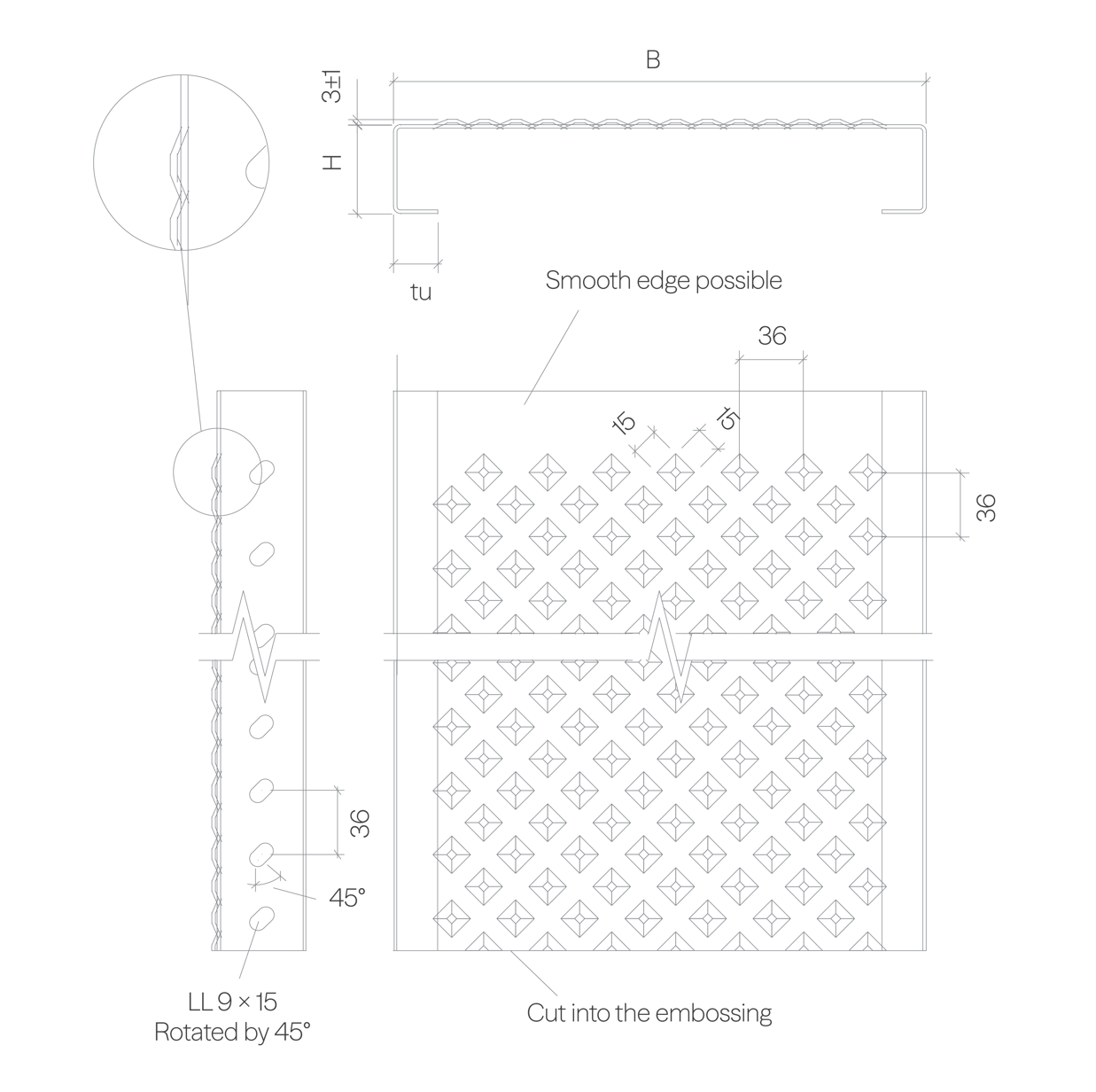

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R10 |
| Stainless steel [1.4301] | 2,0 | R10 |
| Preferred widths | 180 / 240 / 300 | |
| Preferred heights | 30 / 50 / 75 / 100 /other heights on request | |
| Lengths | max. 3,996 mm | |
| Length divider | 36 |
Matching accessories
Attachments for Toldiamant G
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
