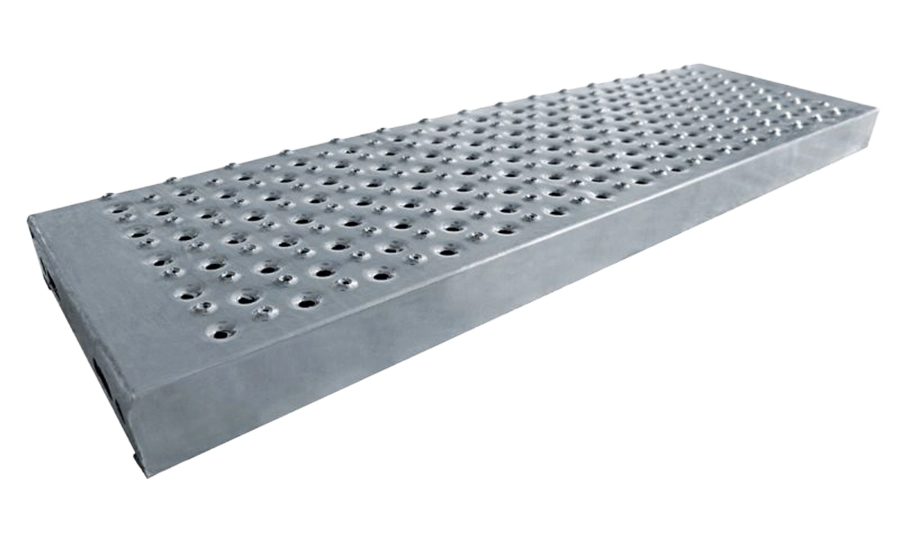

Step depth 240 mm
With a depth of 240 mm, this step provides a stable and safe solution for stairways. Its design clearly defines the leading edge, enhances footing stability, and makes it easier to walk up and down stairs.
Ihre AnsprechpartnerThe step is used on stairs with a gradient angle of at least 43° and an overlap of 50 mm.
It meets the requirements of the ERP and APH standards and is suitable for use in public and commercial areas.
Perforation:
ADERSTEP-TOLPICOT (cavity 2 %)
STEPHUIT-TOLHUIT (cavity 7 %)
STEPCLAIR-TOLMIXTE (cavity 21 %)
| Width (mm) | 600 | 700 | 800 | 900 | 1.000 | 1.200 |
| Depth (mm) | 240 | 240 | 24 | 240 | 240 | 240 |
| Height (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Mass (kg/p) | 3,9 | 4,5 | 5,1 | 5,7 | 6,3 | 7,4 |
Perforation:
STEPBLOC-TOLPLUS (cavity 47 %)
| Width (mm) | 600 | 700 | 800 | 900 | 1.000 |
| Depth (mm) | 240 | 240 | 240 | 240 | 240 |
| Height (mm) | 40 | 40 | 40 | 40 | 40 |
| Mass (kg/p) | 3,9 | 4,5 | 5,1 | 5,7 | 6,3 |
-
Material: hot-dip galvanized steel, according to ISO 1461
-
Perforated edge for fastening to the stair stringer
-
Mounting: bolt connection with 12 mm diameter, bolts available on request
