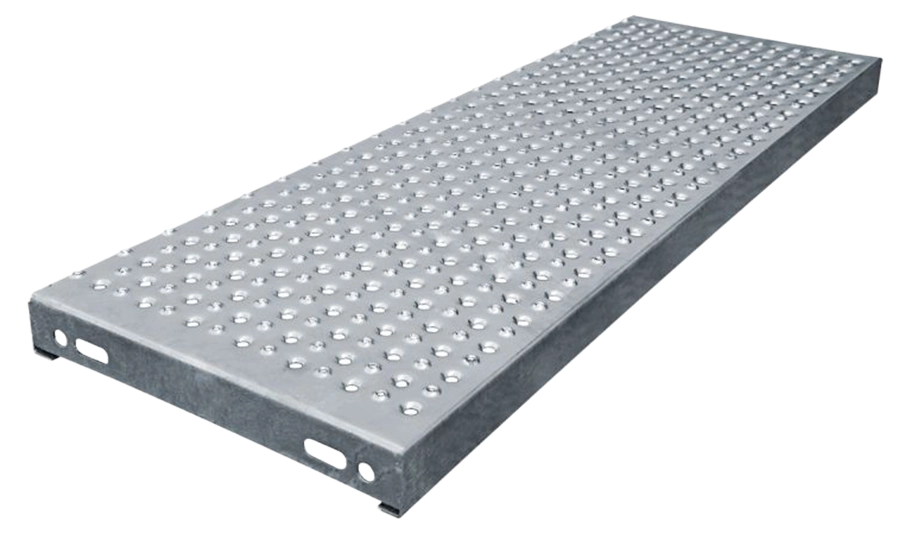

Depth level 330 MM Classique
In stairwells, the Classique step with a depth of 330 mm combines safety and functionality in a sturdy design. The smooth surface at the back and the perforated leading edge at the front make the step edges clearly visible and improve slip resistance.
Ihre AnsprechpartnerThe step is used on stairs with a slope angle of 27° or more and an overlap of 50 mm.
It complies with ERP and APH standards and is suitable for public and commercial staircases. Thanks to its reversible design, it can be installed flexibly and adapted to different steps.
Perforation:
ADERSTEP-TOLPICOT (2 % cavity)
STEPHUIT-TOLHUIT (7 % cavity)
STEPCLAIR-TOLMIXTE (21 % cavity)
| Width (mm) | 900 | 1.000 | 1.200 | 1.400 |
| Depth (mm) | 330 | 330 | 330 | 330 |
| Height (mm) | 50 | 50 | 50 | 75 |
| Mass (kg/p) | 7,1 | 7,8 | 9,2 | 10,7 |
-
Material: hot-dip galvanized steel, according to ISO 1461
-
Perforated edge for fastening to the stair stringer
-
Mounting: bolt connection with 12 mm diameter, bolts available on request
