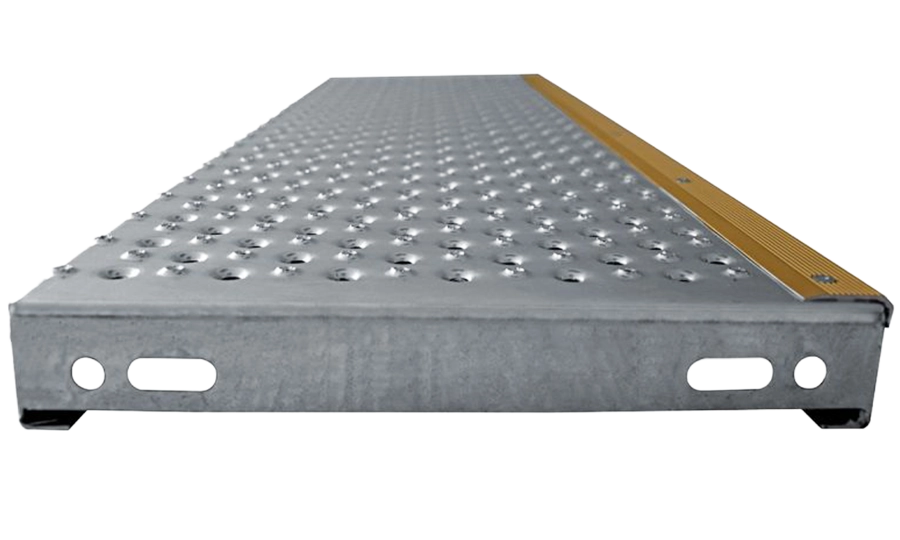

Step with leading edge Licorne
For stairways, Licorne offers a safe and durable solution with a functional design and a clearly marked front edge. The ribbed front edge—available in natural, gold, or black—enhances contrast and improves slip resistance, while the rear portion of the step features a perforated design.
Ihre AnsprechpartnerThe step is used on stairs with a slope angle of 27° or more and an overlap of 50 mm.
It meets the requirements of the ERP and APH standards and is suitable for public and commercial staircases. It is installed flexibly on the stair stringer, whereby the leading edge is fastened with rivets or glued on.
| Width (mm) | 900 | 1.000 | 1.200 | 1.400 |
| Depth (mm) | 330 | 330 | 330 | 330 |
| Height (mm) | 50 | 50 | 50 | 75 |
| Mass (kg/p) | 7,1 | 7,8 | 9,2 | 10,7 |
-
Material: hot-dip galvanized steel, according to ISO 1461
-
Perforated edge for fastening to the stair stringer
-
Punching options:
-
ADERSTEP-TOLPICOT: 2 % cavity
-
STEPHUIT-TOLHUIT: 7 % cavity
-
STEPCLAIR-TOLMIXTE: 21 % cavity
-
-
Fastening to the stair stringer: 12 mm diameter bolt, available on request
