Sheet metal profile gratings

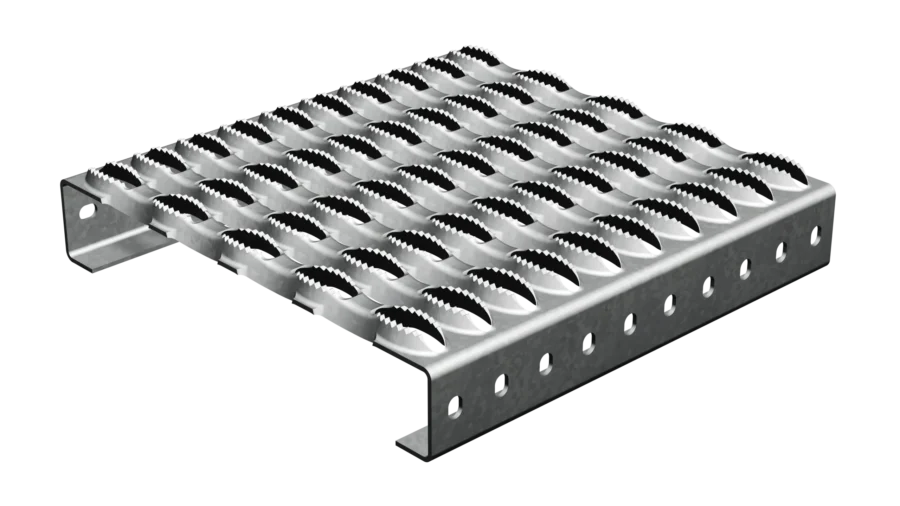

Stepbloc D
Due to the serration of the highly pronounced surface, the grating has very good stability and also guarantees high slip resistance, especially in areas where grease and oil are used.
Ihre AnsprechpartnerStepbloc D is ideally suited for use in industry and agriculture as well as in vehicle construction and building construction due to its good drainage effect.

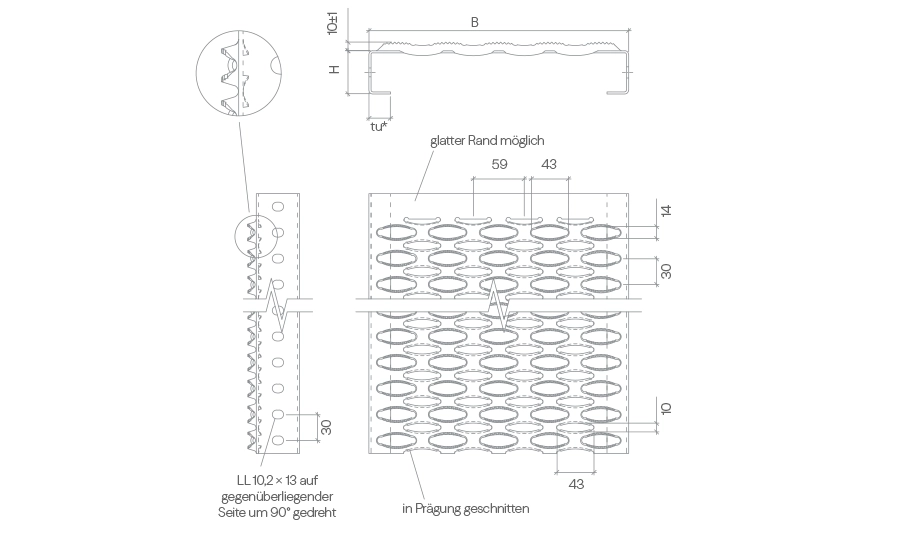

Dimensions
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R13 |
| Zenzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R13 |
| Aluminum [AlMg3] | 2,5 / 3,0 | R13 |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 120 / 180 / 240 / 300 / 360 / 420 / 480 |
| Preferred heights | 40/ 50/ 75/ 100 / other heights on request |
| Lengths | up to max. 8,000 mm |
| Length divider | 30 |
Matching accessories
Attachments for Stepbloc D
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR quick fastening
Clamp connection with countersunk head screw M8.

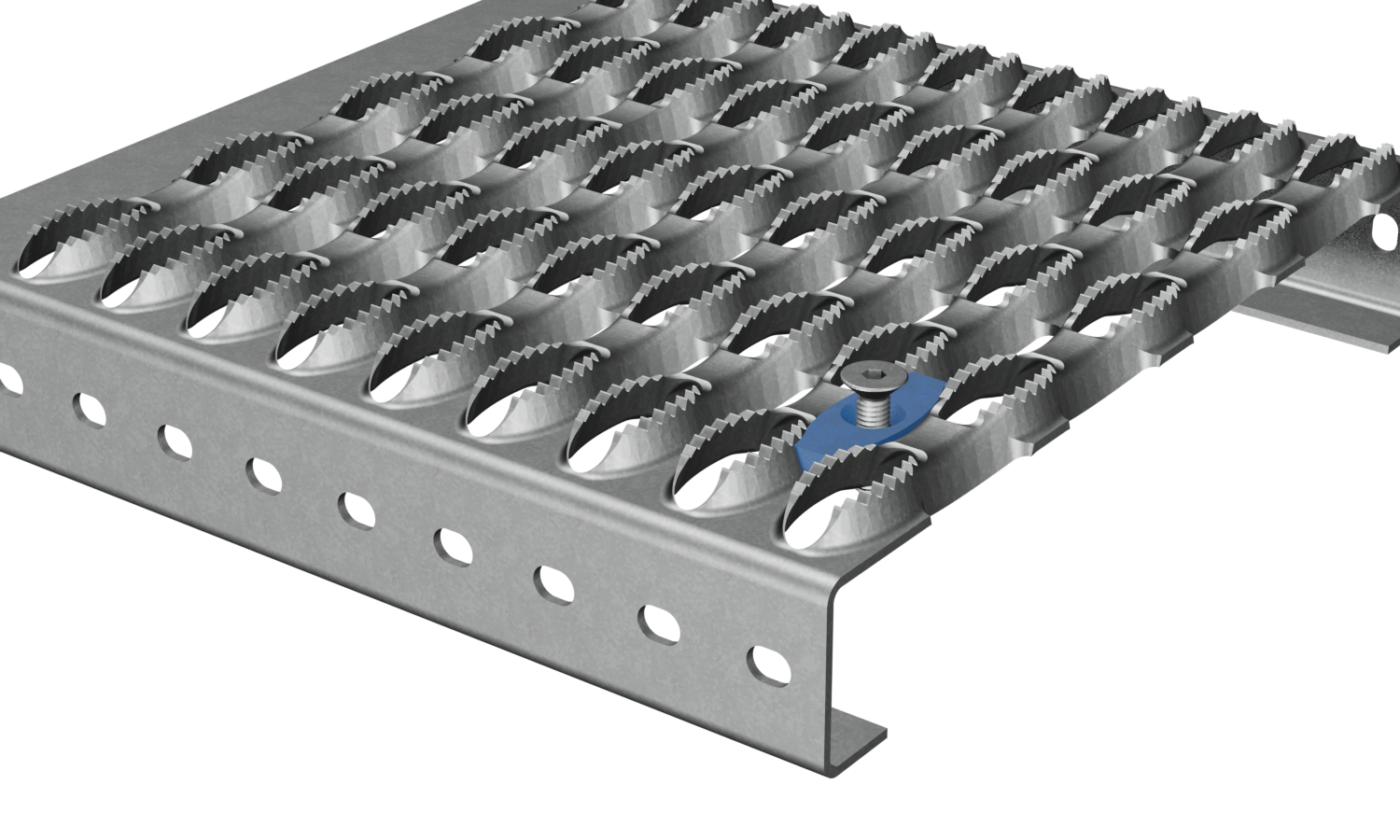

BPR plastic olive
For all Stepbloc molds with countersunk hole for countersunk head screws (DIN 7991).
