BPR setting technology Drainstep RH3 & Stepbloc F
Consists of a setting bolt, T03 rondelle and a countersunk head screw with pressed long nut.
Sheet metal profile gratings

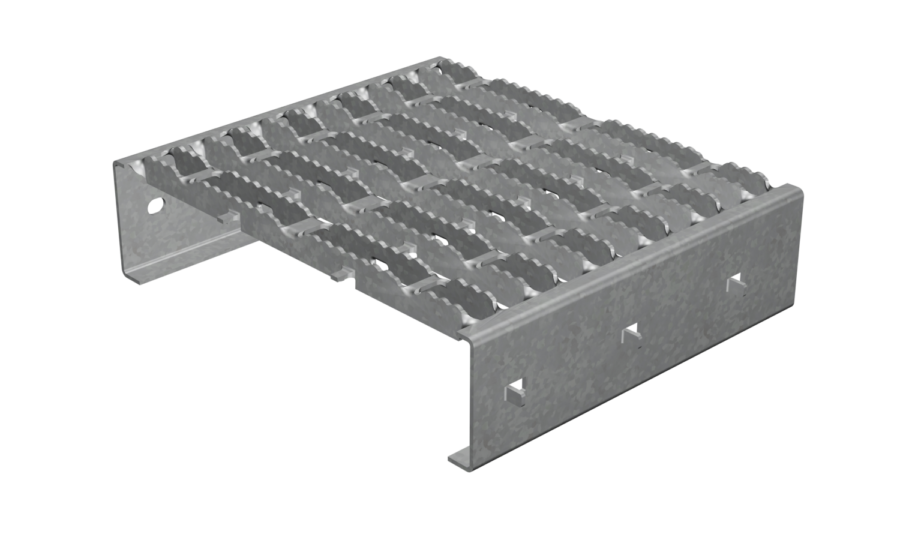

Drainstep RH 3
DRAINSTEP RH3 is a sheet metal profile grating developed in 2013. Its features make it unique within MEISER’s sheet metal profile product line. With over 70% open cross-section, it ensures maximum drainage performance.
Ihre AnsprechpartnerDRAINSTEP RH3 was developed in accordance with EN ISO 14122-2 and also ensures increased fall-through protection (ball ≥ 20mm). The steeply positioned bars ensure excellent transverse rigidity for this sheet metal profile grating.

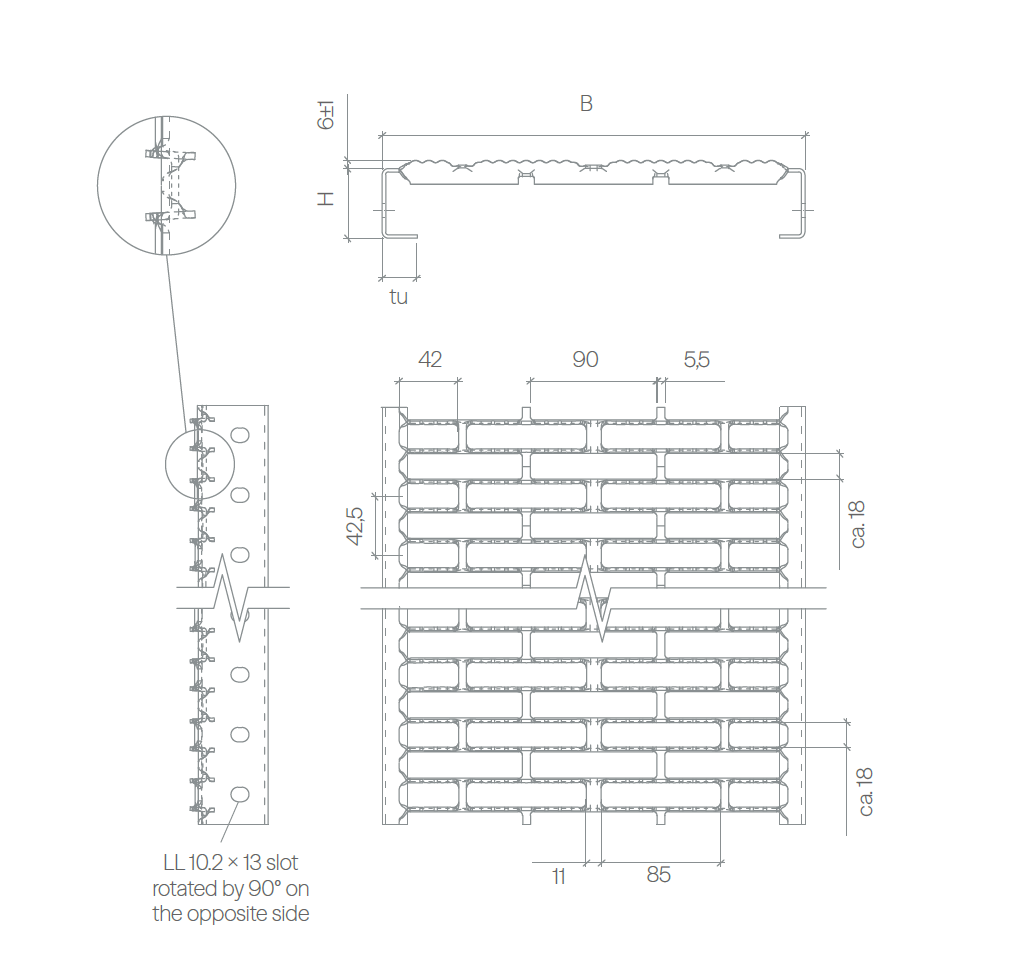

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 | R11 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 | R11 |
| Preferred widths | 200 / 300 / 312 / 324 / 333 | |
| Preferred heights | 40 - 150 mm, other heights on request | |
| Lengths | up to max. 8,000 mm | |
| Length divider | 42.5 mm |
Matching accessories
Attachments for Drainstep RH 3
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
